Technical Specifications
| Parameter | Description |
|---|---|

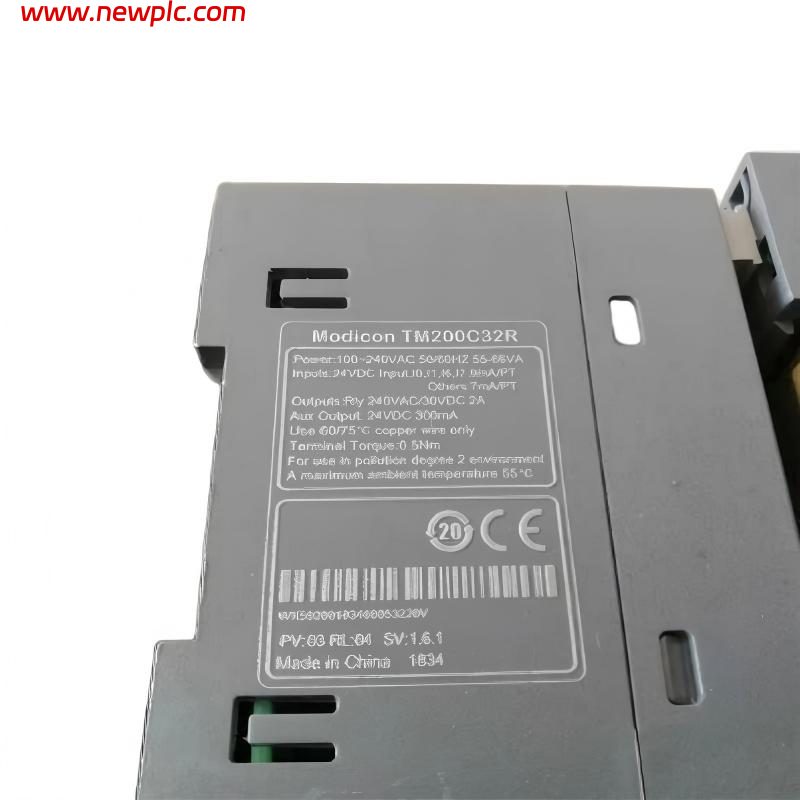

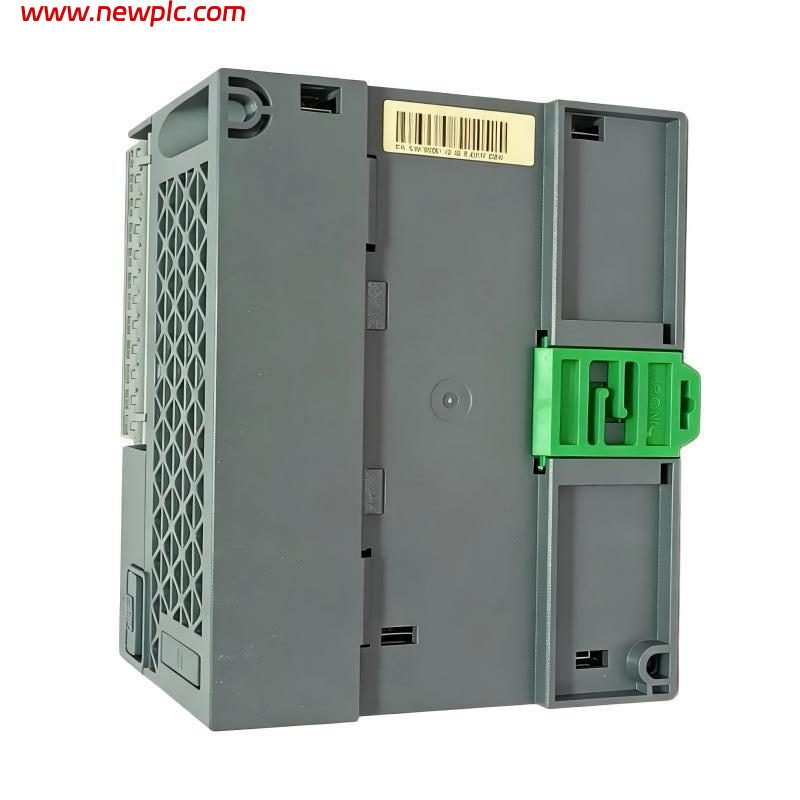

| Product Model | Schneider Electric TM200C32R |
| Manufacturer | Schneider Electric |
| Product Series | Easy Modicon M200 |
| Product Type | Compact Logic Controller (PLC) |
| Function | Programmable controller with integrated digital I/O for machine automation |
| Application | OEM machines, packaging equipment, conveyors, assembly systems, compact industrial automation |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Frequency | 50/60 Hz |
| Total Digital I/O | 32 points |
| Digital Inputs | 20 inputs |
| Digital Outputs | 12 relay outputs |
| Input Voltage | 24 VDC |
| Input Type | Digital DC Input |
| Input Logic | Sink or Source (Positive/Negative Logic) |
| Input Standard | IEC 61131-2 Type 1 |
| Input Current | 7 mA per input |
| High-Speed Inputs | 4 channels (I0, I1, I6, I7) |
| Fast Inputs | 4 channels (I2–I5) |
| Regular Inputs | 12 channels |
| Output Type | Relay Normally Open (NO) |
| Output Channels | 12 relay outputs |
| Output Voltage | 24 VDC / 220 VAC |
| Output Current | 2 A per output channel |
| Maximum Switching Voltage | 250 VAC / 30 VDC |
| Expansion Capability | Up to 4 I/O expansion modules |
| Maximum I/O Capacity | Up to 196 I/O points |
| Motion Control | Supports up to 2-axis motion control |
| Communication Interface | Ethernet RJ45 + Serial Link RS485 |
| Programming Interface | USB programming port |
| Memory Support | Micro SD card |
| Internal Memory | 512 KB flash memory |
| High-Speed Functions | High-speed counting, fast input processing |
| Power Consumption | 55–66 VA at maximum I/O load |
| Inrush Current | 50 A |
| Relay Response Time | Approx. 10 ms ON/OFF |
| High-Speed Input Response Time | Approx. 5 μs |
| Fast Input Response Time | Approx. 35–100 μs |
| Protection Rating | IP20 |

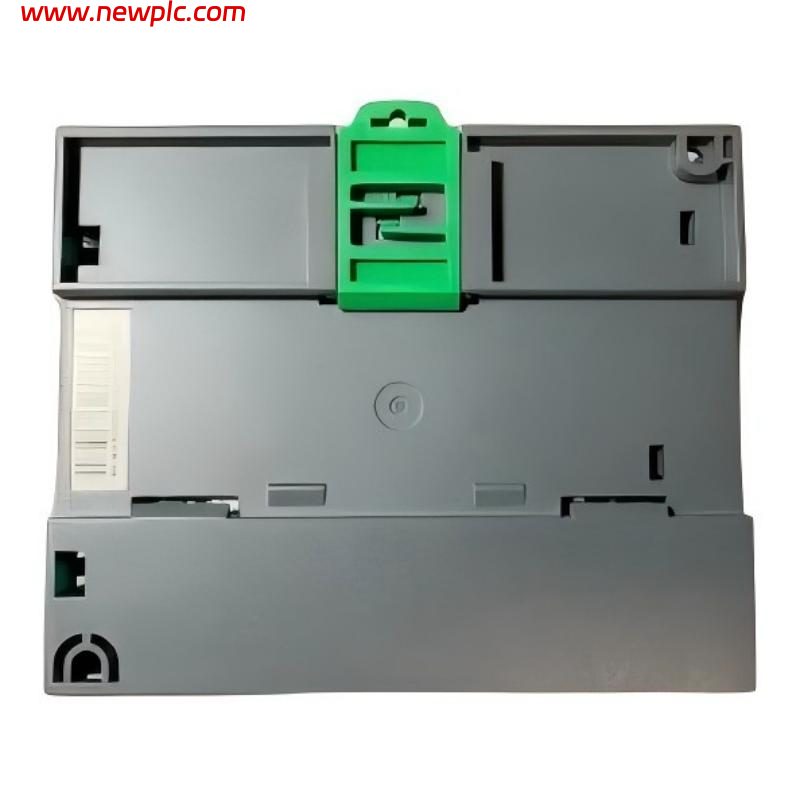

| Installation | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 175 × 70 × 90 mm (W × H × D) |
| Weight | Approx. 0.504 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM200C32R used for?
A: The TM200C32R is used for controlling compact industrial machines, including packaging systems, conveyors, assembly equipment, and OEM automation solutions.
Q2: How many inputs and outputs does the TM200C32R have?
A: The PLC provides 32 digital I/O points, including 20 digital inputs and 12 relay outputs.
Q3: What type of outputs does the TM200C32R use?
A: The TM200C32R uses relay normally open outputs, supporting loads up to 2 A per output channel.
Q4: What power supply does the TM200C32R require?
A: The controller operates with a 100–240 VAC power supply, with an allowable range of 85–264 VAC.
Q5: Does the TM200C32R support high-speed inputs?
A: Yes. It includes 4 high-speed inputs and 4 fast inputs for applications such as high-speed counting and sensor signal processing.
Q6: Can the TM200C32R be expanded with additional I/O modules?
A: Yes. The controller supports up to 4 I/O expansion modules, allowing the system to increase the available I/O capacity.
Q7: Does the TM200C32R support communication functions?
A: Yes. The controller provides Ethernet RJ45 and serial communication interfaces for programming, monitoring, and industrial communication.
Q8: What are the dimensions and weight of the TM200C32R?
A: The controller dimensions are approximately 175 × 70 × 90 mm, and the weight is about 0.504 kg.
