Technical Specifications
| Parameter | Description |
|---|---|

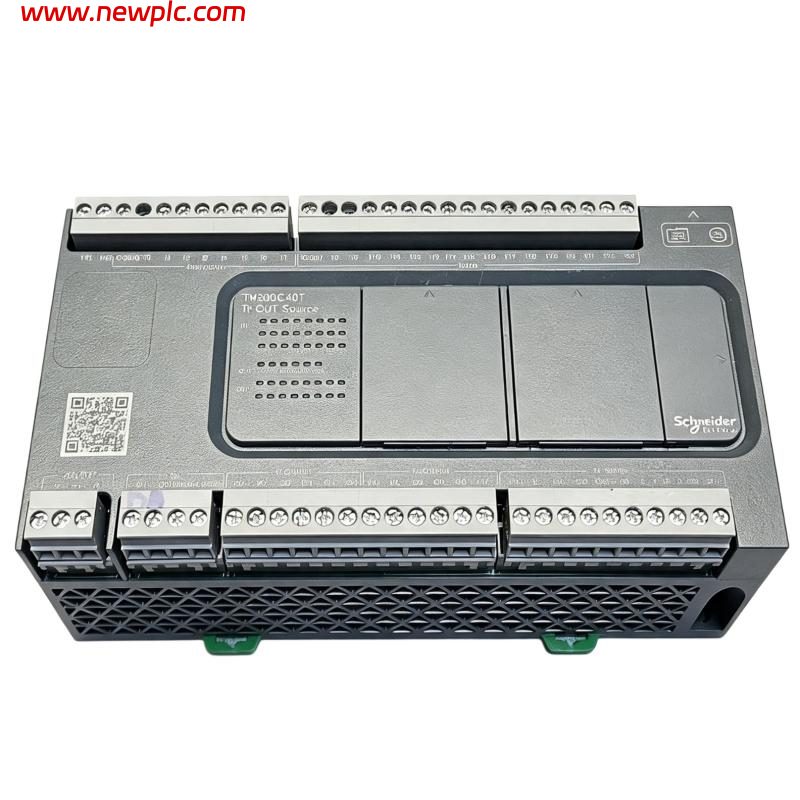

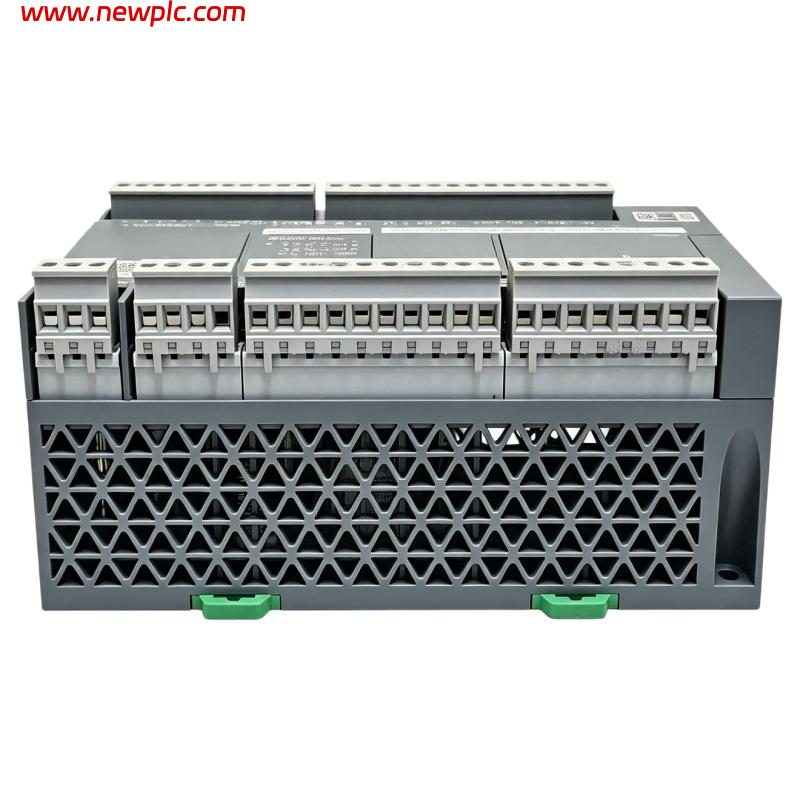

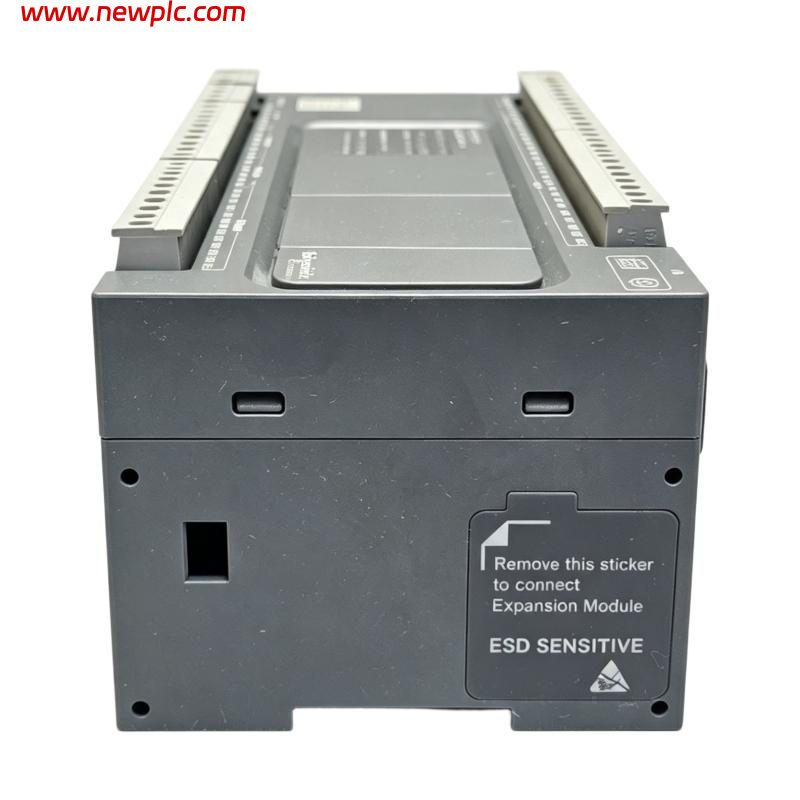

| Product Model | Schneider Electric TM200C40T |
| Manufacturer | Schneider Electric |
| Product Series | Easy Modicon M200 |
| Product Type | Compact Logic Controller (PLC) |
| Function | Programmable controller with integrated digital I/O for machine automation |
| Application | OEM machines, packaging systems, conveyors, assembly equipment, compact industrial automation |
| Power Supply | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Total Digital I/O | 40 points |
| Digital Inputs | 24 inputs |
| Digital Outputs | 16 transistor outputs |
| Input Voltage | 24 VDC |
| Input Type | Digital DC Input |
| Input Logic | Sink or Source (Positive/Negative Logic) |
| Input Standard | IEC 61131-2 Type 1 |
| Input Current | 7 mA per input |
| High-Speed Inputs | 4 channels (I0, I1, I6, I7) |
| Fast Inputs | 4 channels (I2–I5) |
| Regular Inputs | 16 channels (I8–I23) |
| Output Type | Source Transistor Output |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per channel |
| Output Channels | 16 transistor outputs (Q0–Q15) |
| Output Logic | Positive Logic (Source / PNP) |
| Fast Outputs | Q0–Q1 support PLS / PWM / PTO functions |
| Switching Speed | High-speed transistor switching |
| Expansion Capability | Up to 4 TM3 expansion modules |
| Maximum I/O Expansion | Up to 196 I/O points |
| Motion Control | Supports up to 2-axis motion control |
| Communication Interface | Ethernet RJ45 + Serial communication |
| Programming Interface | USB programming port |
| Memory Support | Micro SD card |
| Internal Memory | 512 KB flash memory |
| Power Consumption | Approx. 18 W at 24 VDC (maximum I/O load) |
| Inrush Current | 35 A |
| Output Response Time | Approx. 1 ms ON/OFF |
| High-Speed Input Response Time | Approx. 5 μs ON/OFF |
| Fast Input Response Time | Approx. 35–100 μs |
| Protection Rating | IP20 |
| Installation | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 175 × 70 × 90 mm (W × H × D) |
| Weight | Approx. 0.72 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM200C40T used for?
A: The TM200C40T is used for controlling medium-size compact automation systems, including packaging machines, assembly equipment, conveyors, and OEM machinery.
Q2: How many inputs and outputs does the TM200C40T have?
A: The PLC provides 40 digital I/O points, including 24 digital inputs and 16 transistor outputs.
Q3: What type of outputs does the TM200C40T use?
A: The TM200C40T uses 24 VDC source transistor outputs (PNP) with a rated current of 0.5 A per output channel.
Q4: What is the difference between TM200C40T and TM200C40R?
A: The TM200C40T uses transistor outputs, providing faster switching speed and supporting pulse functions. The TM200C40R uses relay outputs, which are more suitable for conventional ON/OFF load control.
Q5: Does the TM200C40T support motion control functions?
A: Yes. The controller supports up to 2-axis motion control and provides fast transistor outputs for PTO and PWM applications.
Q6: What power supply does the TM200C40T require?
A: The TM200C40T requires a 24 VDC power supply, with an operating range of 20.4–28.8 VDC.
Q7: Can the TM200C40T be expanded with additional modules?
A: Yes. The controller supports up to 4 TM3 expansion modules, allowing additional I/O expansion for larger control systems.
Q8: What are the dimensions and weight of the TM200C40T?
A: The PLC dimensions are approximately 175 × 70 × 90 mm, with a shipping weight of about 0.72 kg.
