Technical Specifications
| Parameter | Description |
|---|---|

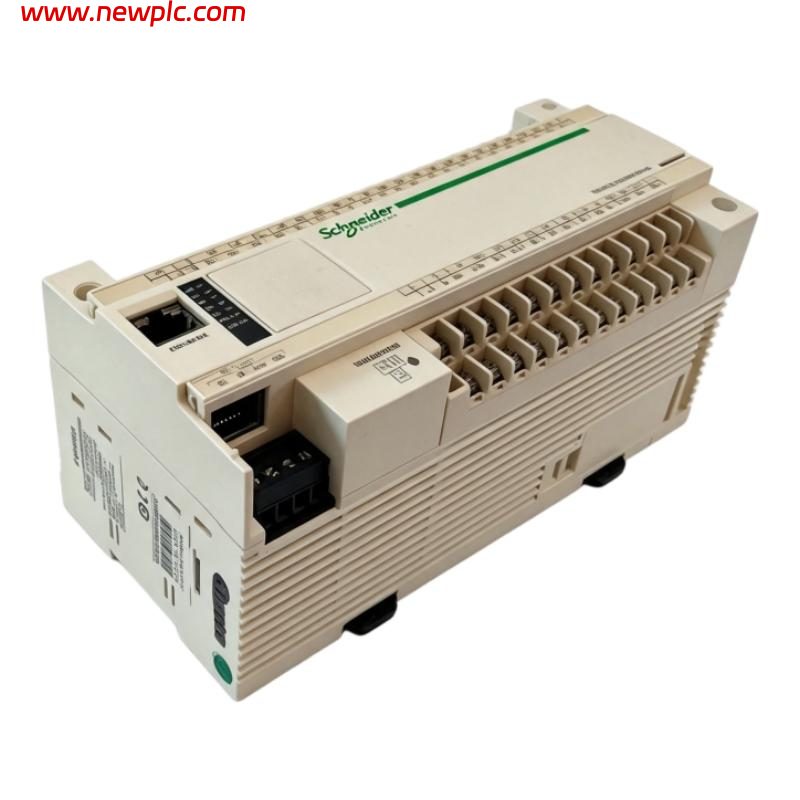

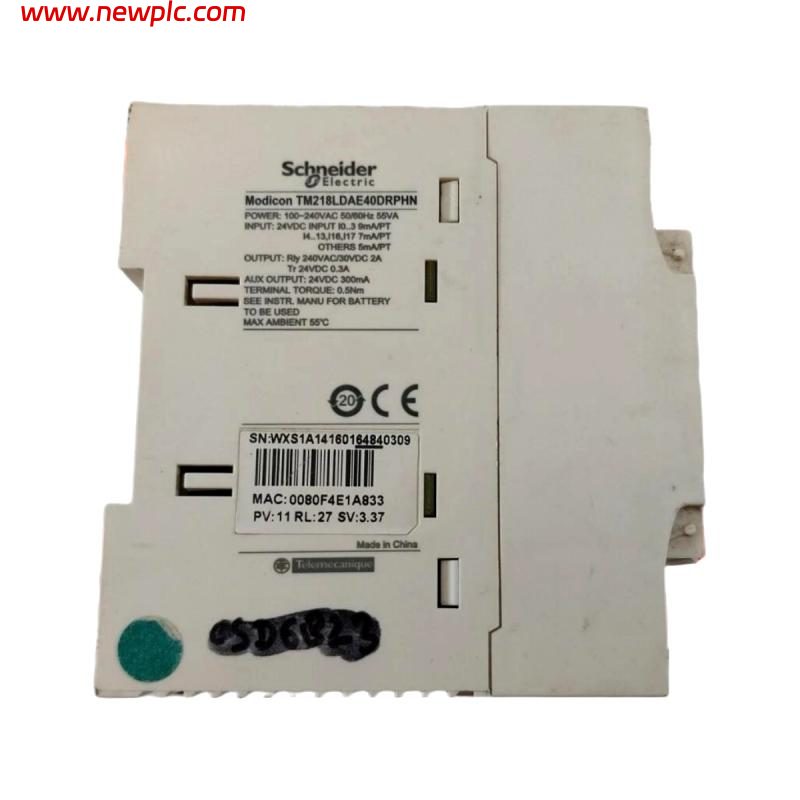

| Product Model | Schneider Electric TM218LDAE40DRPHN |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M218 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 40 points |
| Digital Inputs | 24 inputs |
| Regular Inputs | 20 inputs |
| Fast Inputs | 4 inputs |
| Digital Outputs | 16 outputs |
| Relay Outputs | 12 relay outputs |
| Fast Transistor Outputs | 4 transistor outputs |
| Input Voltage | 24 VDC |
| Input Type | Sink / Source |
| High-Speed Counter | 4 HSC channels |
| Fast Output Functions | PTO, PWM, Frequency Generator |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Frequency | 50/60 Hz |
| Ethernet | Yes |
| Ethernet Protocol | Modbus TCP, Ethernet/IP |
| Serial Communication | Modbus, ASCII, SoMachine protocol |
| Serial Interfaces | Serial Link 1 (RJ45) + Serial Link 2 |
| USB | USB programming port |
| Expansion Capability | Up to 7 expansion modules |
| Maximum I/O Capacity | Up to 248 I/O points |
| Maximum Relay Outputs | Up to 90 relay outputs |
| Analog Inputs | None integrated |
| Analog Outputs | None integrated |
| Programming Software | Schneider Electric Machine Expert / SoMachine |

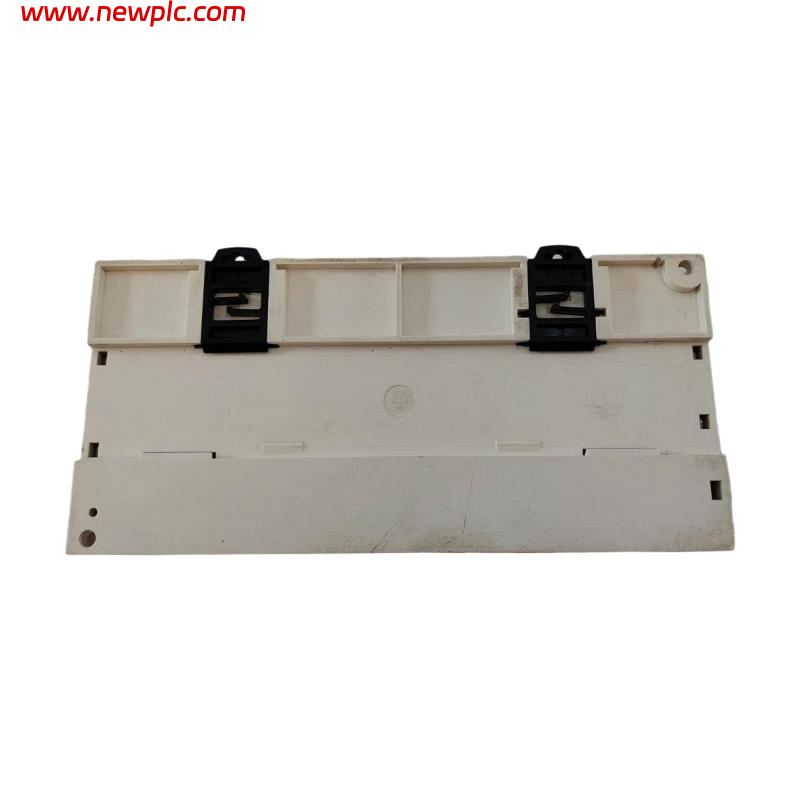

| Mounting | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | Approx. 200 × 100 × 90 mm (L × W × H) |
| Product Weight | Approx. 0.76 kg |
| Shipping Weight | Approx. 2 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM218LDAE40DRPHN used for?
A: It is designed for industrial machine automation applications such as packaging machines, conveyors, assembly equipment, material handling systems, and OEM machinery.
Q2: How many I/O points does the TM218LDAE40DRPHN have?
A: It provides 40 integrated digital I/O points, consisting of 24 inputs and 16 outputs. The outputs include 12 relay outputs and 4 fast transistor outputs.
Q3: Does the TM218LDAE40DRPHN support high-speed counting?
A: Yes. It has 4 fast inputs that can be configured for high-speed counter (HSC) functions.
Q4: What type of fast outputs does the TM218LDAE40DRPHN have?
A: It provides 4 fast transistor outputs supporting PTO, PWM, and frequency-generator functions, making it suitable for pulse-control and basic motion applications.
Q5: Does the TM218LDAE40DRPHN support Ethernet communication?
A: Yes. It has an integrated Ethernet port supporting Modbus TCP and EtherNet/IP. The Ethernet interface can operate as a Modbus TCP master or slave, while EtherNet/IP is supported as an adapter/slave.
Q6: What power supply does the TM218LDAE40DRPHN require?
A: The PLC operates from 100–240 VAC, with an allowable supply range of 85–264 VAC.
Q7: Can the TM218LDAE40DRPHN be expanded?
A: Yes. The M218 platform supports up to 7 expansion modules, allowing the system to reach up to 248 I/O points depending on the configuration.
Q8: What are the dimensions and weight of the TM218LDAE40DRPHN?
A: The listed dimensions are approximately 200 × 100 × 90 mm (L × W × H), with a product weight of approximately 0.76 kg. The commonly listed shipping weight is approximately 2 kg.
