Technical Specifications
| Parameter | Description |
|---|---|

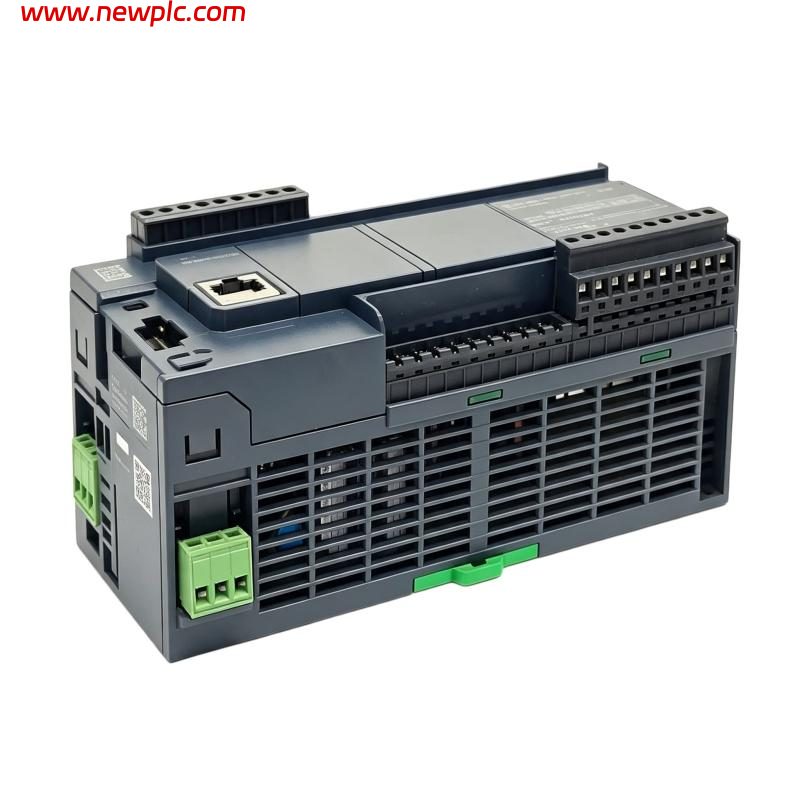

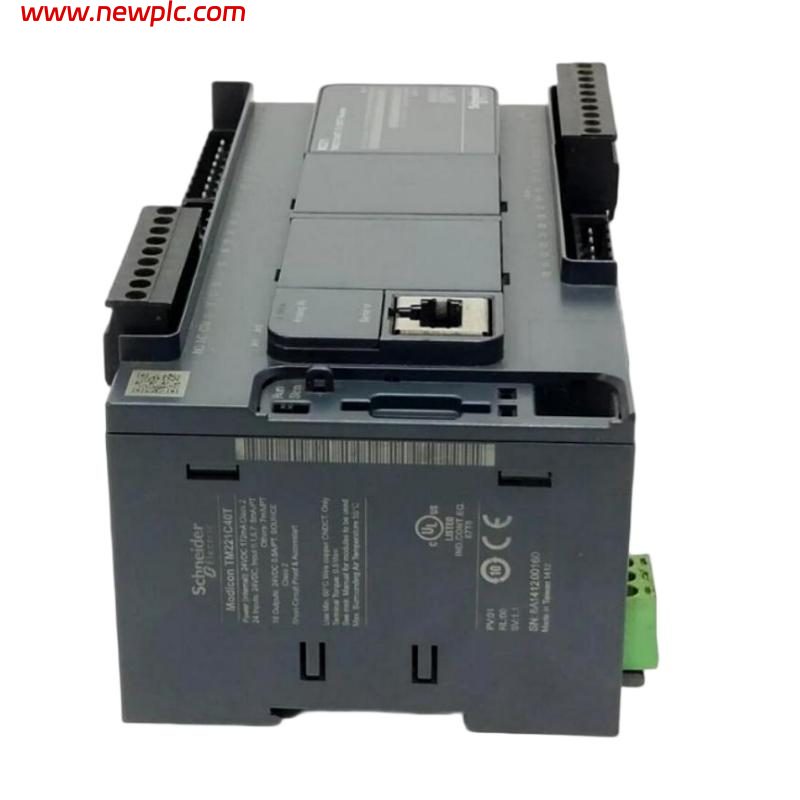

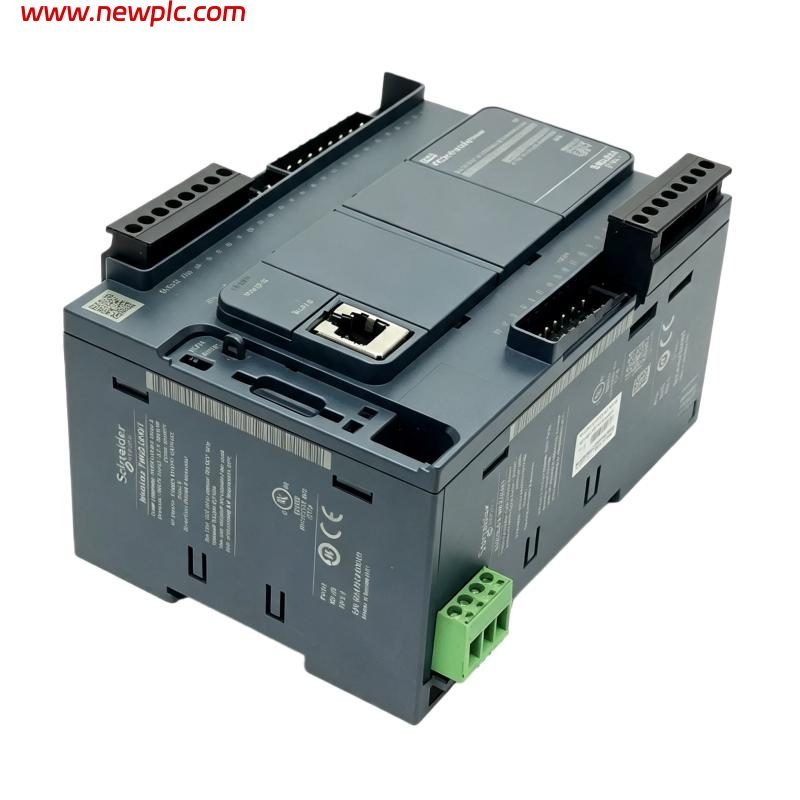

| Product Model | Schneider Electric TM221C40T |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 40 points |
| Digital Inputs | 24 inputs |
| Analog Inputs | 2 inputs, configurable for 0–10 V |
| Fast Inputs | 4 high-speed inputs |
| Digital Outputs | 16 transistor outputs |
| Output Type | PNP transistor / Source output |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Output Voltage | 24 VDC |
| Output Current | Up to 1 A per output (with protection) |
| High-Speed Functions | HSC, PTO, PWM, PLS, Frequency Generator |
| High-Speed Counter | 4 channels, up to 100 kHz |
| Motion Functions | Pulse/Direction, Single Phase, A/B Encoder |
| Ethernet Communication | Supported |
| Ethernet Port | RJ45 |
| Serial Communication | Serial Link 1 (RS485) + Serial Link 2 (RS232/RS485) |
| USB Interface | Mini-B USB 2.0 programming port |
| SD Card | Supported |
| Memory | 256 kB application memory |
| Expansion Capability | Up to 7 TM3 expansion modules |
| Maximum System Expansion | Local, remote or distributed I/O configurations |
| Programming Software | EcoStruxure Machine Expert / Machine Expert Basic |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 160 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.456 kg |
| Shipping Weight | Approx. 0.75 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221C40T used for?
A: The TM221C40T is used for industrial automation applications such as packaging machines, conveyors, assembly equipment, production lines, material handling systems and OEM machinery.
Q2: How many I/O points does the TM221C40T have?
A: It provides 40 integrated I/O points, including 24 digital inputs and 16 transistor outputs.
Q3: What type of outputs does the TM221C40T use?
A: It uses 16 PNP transistor outputs (source outputs), which provide faster switching performance than relay outputs and are suitable for pulse-control applications.
Q4: What power supply does the TM221C40T require?
A: The controller requires a 24 VDC power supply.
Q5: Does the TM221C40T support high-speed functions?
A: Yes. It supports high-speed counters, PTO, PWM, PLS and frequency generator functions. The controller includes 4 high-speed inputs for motion and counting applications.
Q6: Does the TM221C40T support Ethernet communication?
A: Yes. The TM221C40T includes an Ethernet RJ45 port together with serial communication interfaces and USB programming.
Q7: Can the TM221C40T be expanded?
A: Yes. The M221 controller supports TM3 expansion modules, allowing additional I/O modules to be added for larger automation systems.
Q8: What are the dimensions and weight of the TM221C40T?
A: The PLC dimensions are approximately 160 × 90 × 70 mm (W × H × D), with a product weight of approximately 0.456 kg. The packaged shipping weight is approximately 0.75 kg.
