Technical Specifications
| Parameter | Description |
|---|---|

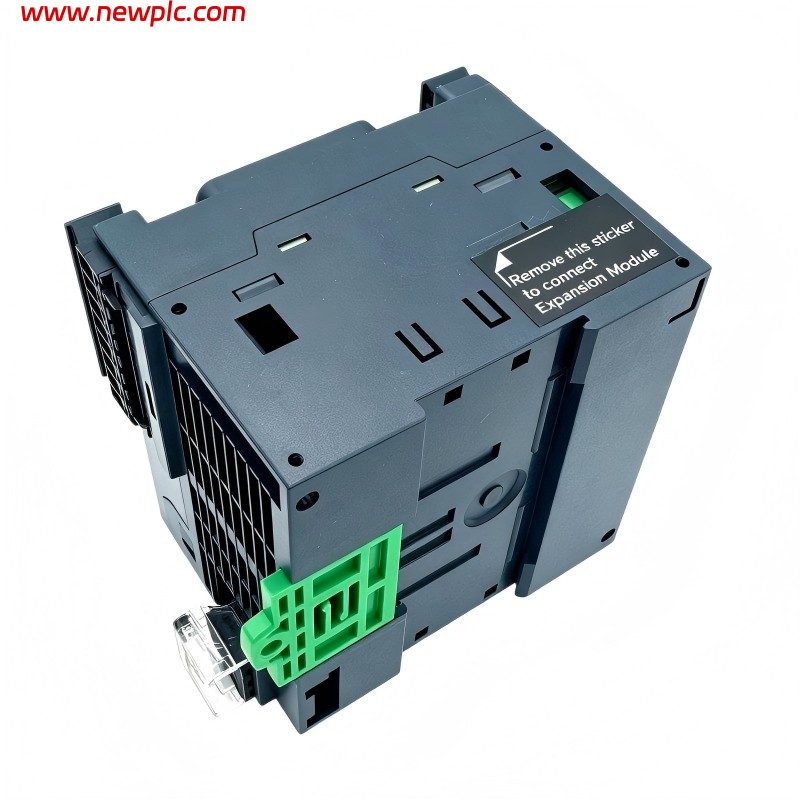

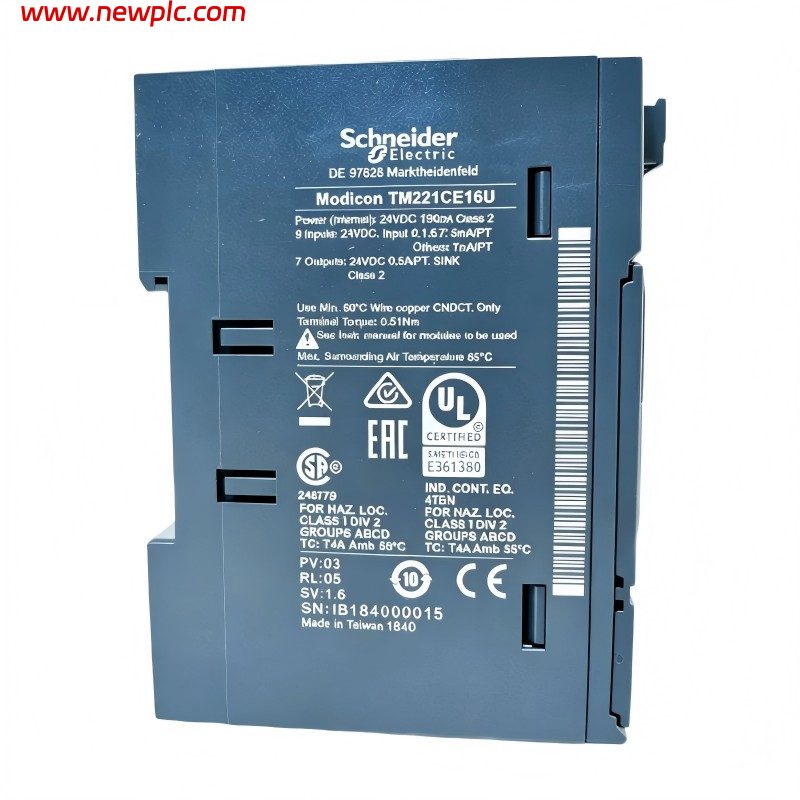

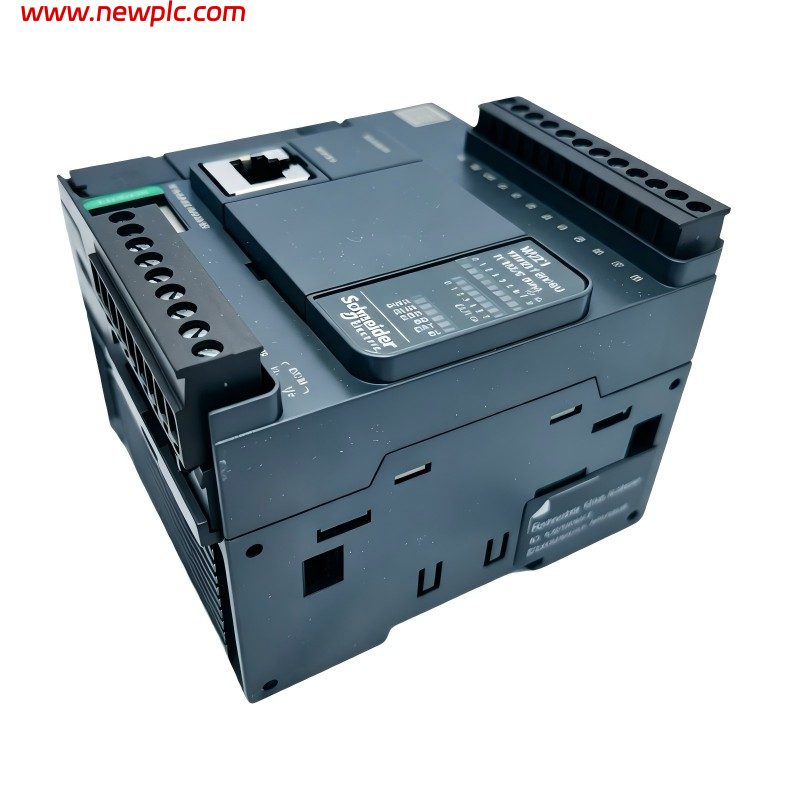

| Product Model | Schneider Electric TM221CE16U |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 16 points |
| Digital Inputs | 9 inputs |
| Fast Inputs | 4 high-speed inputs |
| Analog Inputs | 2 inputs, configurable 0–10 V |
| Digital Outputs | 7 transistor outputs |
| Output Type | NPN transistor / Sink output |
| Output Current | 0.5 A per output |
| Input Voltage | 24 VDC |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| High-Speed Functions | HSC, PTO, PWM, PLS, Frequency Generator |
| Positioning Functions | Pulse/Direction, CW/CCW pulse output |
| Ethernet Communication | Yes |
| Ethernet Port | RJ45 10BASE-T/100BASE-TX |
| Ethernet Protocol | Modbus TCP, Ethernet/IP Adapter |
| Serial Communication | Serial Link RS232 / RS485 |
| USB Interface | Mini-B USB 2.0 programming port |
| SD Card | Supported (up to 2 GB) |
| Memory | 256 kB application and data memory |
| Expansion Capability | Up to 7 TM3 expansion modules |
| Programming Software | EcoStruxure Machine Expert / Machine Expert Basic |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 95 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.626 kg |
| Shipping Weight | Approx. 0.56–3 kg (depending on packaging method) |
FAQ
FAQ
Q1: What is the Schneider Electric TM221CE16U used for?
A: The TM221CE16U is used for industrial automation applications such as packaging machines, conveyors, assembly equipment, small production lines and OEM machinery.
Q2: How many I/O points does the TM221CE16U have?
A: It provides 16 integrated I/O points, including 9 digital inputs and 7 NPN transistor outputs.
Q3: What type of outputs does the TM221CE16U use?
A: It uses 7 NPN transistor outputs (sink outputs) with a rated current of 0.5 A per output, suitable for fast switching applications.
Q4: What power supply does the TM221CE16U require?
A: The controller requires a 24 VDC power supply, with an operating range of approximately 20.4–28.8 VDC.
Q5: Does the TM221CE16U support analog inputs?
A: Yes. It provides 2 analog inputs supporting 0–10 V signals with 10-bit resolution.
Q6: Does the TM221CE16U support Ethernet communication?
A: Yes. The model includes an RJ45 Ethernet port supporting industrial communication functions such as Modbus TCP and Ethernet/IP Adapter.
Q7: Can the TM221CE16U be expanded?
A: Yes. The Modicon M221 platform supports TM3 expansion modules for additional I/O and system functions.
Q8: What are the dimensions and weight of the TM221CE16U?
A: The PLC dimensions are approximately 95 × 90 × 70 mm (W × H × D), with a product weight of approximately 0.626 kg.
