Technical Specifications
| Parameter | Description |
|---|---|

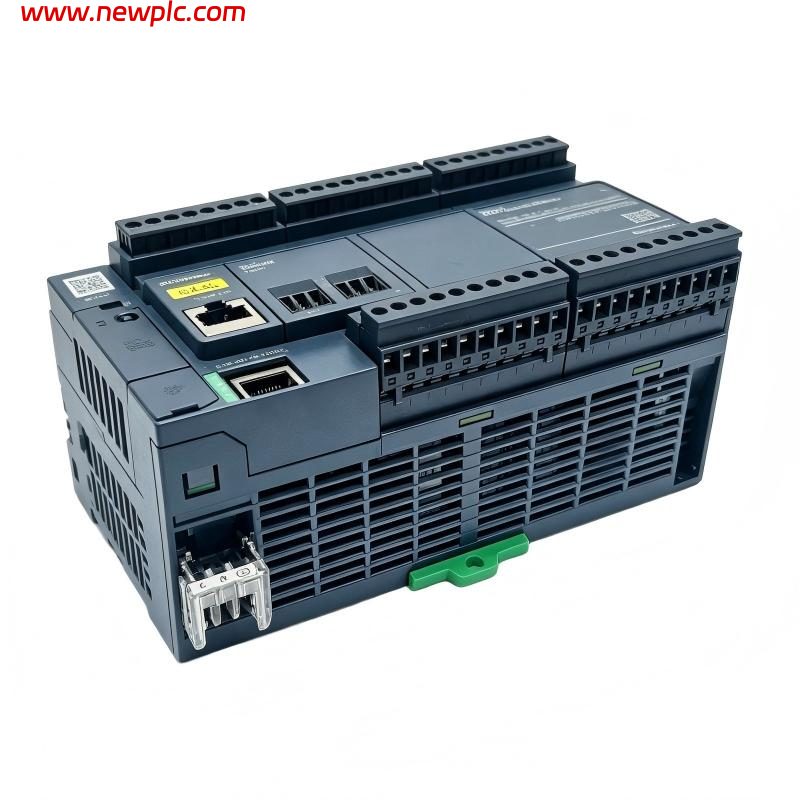

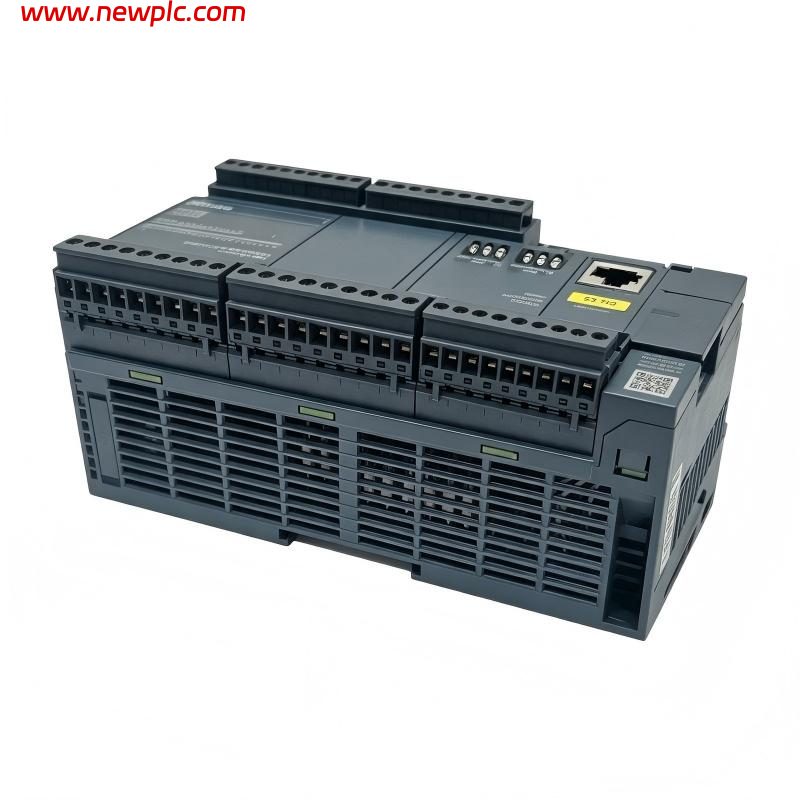

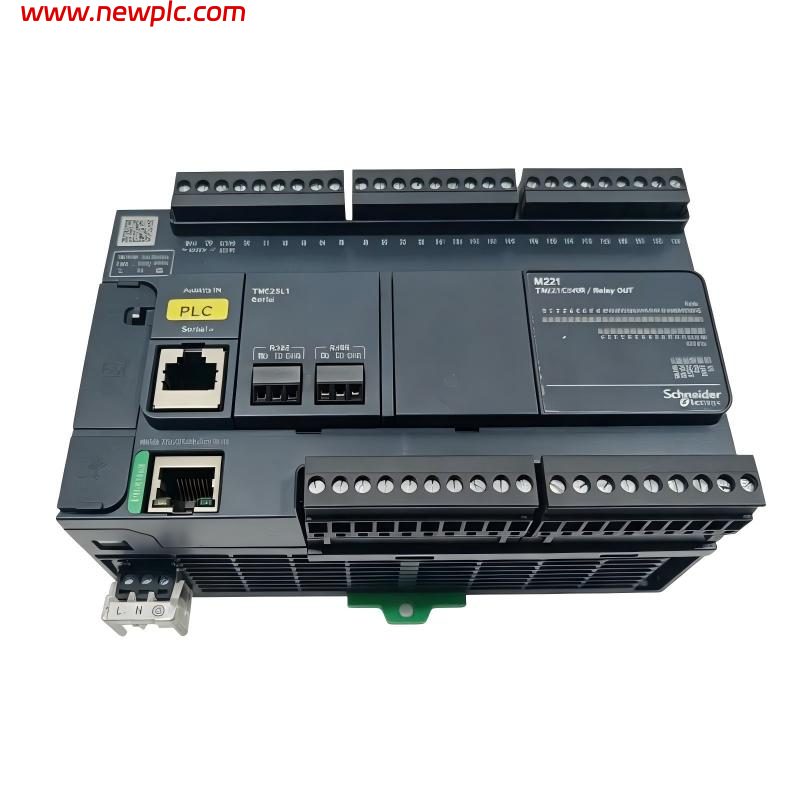

| Product Model | Schneider Electric TM221CE40R |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 40 points |
| Digital Inputs | 24 inputs |
| Analog Inputs | 2 inputs (0–10 V configurable) |
| Fast Inputs | 4 high-speed inputs |
| Digital Outputs | 16 relay outputs |
| Output Type | Relay (Normally Open) |
| Relay Rated Current | 2 A per output |
| Maximum Switching Voltage | 250 VAC / 125 VDC |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Ethernet Communication | Yes |
| Ethernet Port | RJ45 10/100 Mbps |
| Ethernet Protocol | Modbus TCP, Ethernet/IP Adapter |
| Serial Communication | RS232 / RS485 Serial Link |
| USB Interface | Mini-B USB 2.0 programming port |
| SD Card | Supported |
| Sensor Power Supply | 24 VDC / 250 mA supplied by controller |
| High-Speed Functions | High-speed counter, pulse counting, A/B encoder, pulse/direction |
| High-Speed Counter | 4 channels |
| Memory | 256 kB application memory |
| Expansion Capability | TM3 expansion modules |
| Maximum Expansion | Up to 7 TM3 modules |
| Programming Software | EcoStruxure Machine Expert / Machine Expert Basic |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 160 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.456 kg |
| Package Weight | Approx. 0.83 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221CE40R used for?
A: The TM221CE40R is used for industrial automation applications such as packaging machines, conveyors, assembly equipment, production lines, material handling systems and OEM machinery.
Q2: How many I/O points does the TM221CE40R have?
A: It provides 40 integrated I/O points, including 24 digital inputs, 2 analog inputs and 16 relay outputs.
Q3: What type of outputs does the TM221CE40R use?
A: It uses 16 relay outputs, suitable for switching AC and DC loads. Each relay output supports up to 2 A current.
Q4: What power supply does the TM221CE40R require?
A: The controller operates from a 100–240 VAC power supply.
Q5: Does the TM221CE40R support analog inputs?
A: Yes. It provides 2 analog inputs that can be configured for 0–10 V signals.
Q6: Does the TM221CE40R support Ethernet communication?
A: Yes. The “E” designation indicates the Ethernet version. It includes an RJ45 Ethernet port for industrial communication functions.
Q7: Can the TM221CE40R be expanded?
A: Yes. The Modicon M221 platform supports TM3 expansion modules, allowing additional I/O and functional modules to be added.
Q8: What are the dimensions and weight of the TM221CE40R?
A: The PLC measures approximately 160 × 90 × 70 mm (W × H × D) and weighs approximately 0.456 kg.
