Technical Specifications
| Parameter | Description |
|---|---|

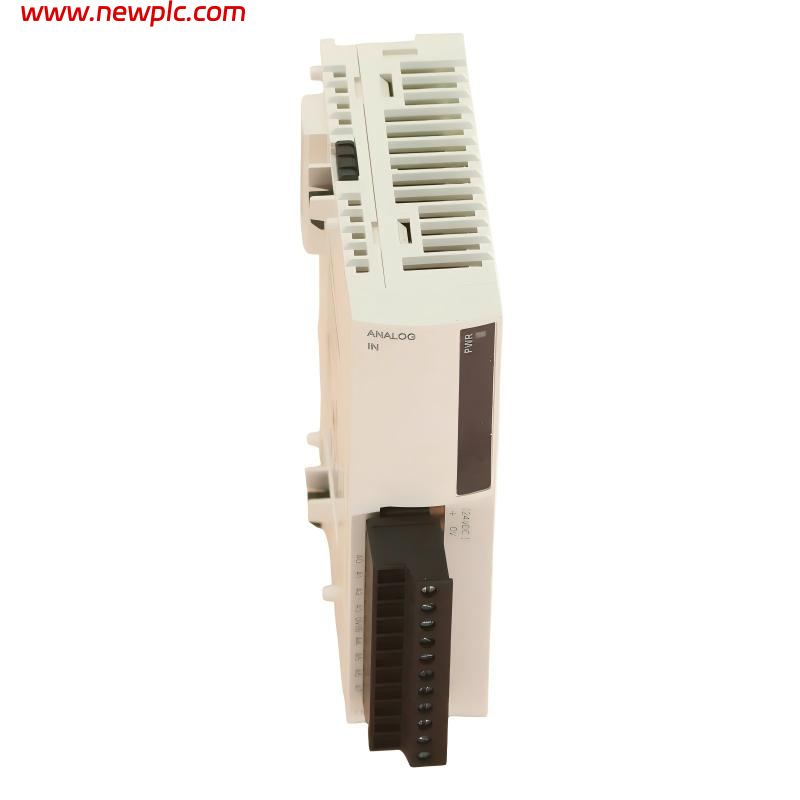

| Product Model | Schneider Electric TM2ARI8LT |
| Manufacturer | Schneider Electric |
| Product Series | Modicon TM2 |
| Product Type | Analog Input Expansion Module |
| Number of Analog Inputs | 8 |
| Input Type | Temperature / Analog Current |
| Temperature Sensors | Pt100, Pt1000, Ni100, Ni1000 |
| RTD Connection | 2-wire / 3-wire |
| Current Input Range | 0–20 mA / 4–20 mA |
| Input Type | Non-differential |
| Analog Resolution | 12 bits |
| Conversion Type | Sigma-Delta ADC |
| Pt100/Pt1000 Range | Approx. -200 to +600°C |
| Ni100/Ni1000 Range | Approx. -50 to +150°C |
| Current Input Impedance | <250 Ω |
| Temperature Accuracy | Approx. ±0.4% FS |
| Current Accuracy | Approx. ±0.2% FS |
| Repeat Accuracy | ±0.1% FS |
| Non-Linearity | ±0.02% FS |
| Rated Supply Voltage | 24 VDC |
| Supply Voltage Range | 19.2–30 VDC |
| Internal 5 VDC Consumption | Approx. 80 mA |
| External 24 VDC Consumption | Approx. 70 mA |
| Electrical Connection | Removable screw terminal block |
| Isolation | Photocoupler between I/O and internal logic |
| Mounting | DIN rail / controller expansion |
| Compatible Systems | Modicon M238 / Twido / TM2 expansion system |
| Programming Software | EcoStruxure Machine Expert |
| Protection Rating | IP20 |
| Dimensions | 23.5 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.085 kg (85 g) |
| Package Weight | Approx. 0.15 kg |
| Country of Origin | France |
FAQ
FAQ
Q1: What is the Schneider Electric TM2ARI8LT used for?
A: It is an analog input expansion module designed for temperature measurement and analog current signal acquisition in industrial automation systems.
Q2: How many analog inputs does the TM2ARI8LT have?
A: It provides 8 analog input channels.
Q3: What temperature sensors are supported?
A: It supports Pt100, Pt1000, Ni100 and Ni1000 RTD temperature sensors.
Q4: Does the TM2ARI8LT support current inputs?
A: Yes. It supports 0–20 mA and 4–20 mA current signals.
Q5: What is the analog resolution?
A: The module provides 12-bit resolution using a sigma-delta analog-to-digital converter.
Q6: What power supply does the TM2ARI8LT require?
A: It requires a 24 VDC supply, with an operating range of approximately 19.2–30 VDC.
Q7: What RTD wiring configurations are supported?
A: The module supports both 2-wire and 3-wire RTD connections.
Q8: What are the dimensions and weight of the TM2ARI8LT?
A: The module measures approximately 23.5 × 90 × 70 mm (W × H × D) and weighs approximately 0.085 kg (85 g).
