Technical Specifications
| Item | Specification |
|---|---|

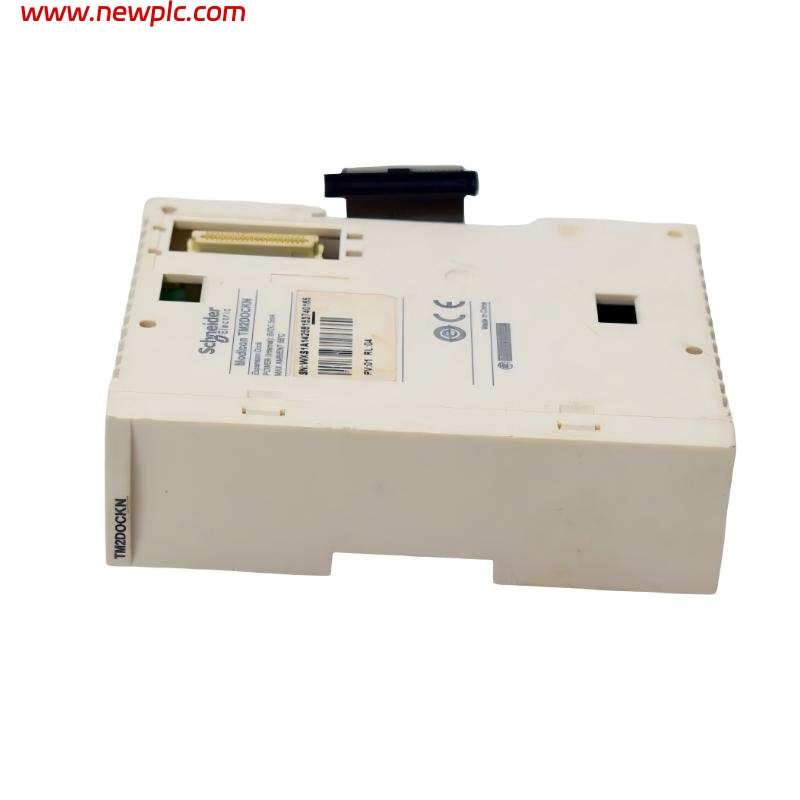

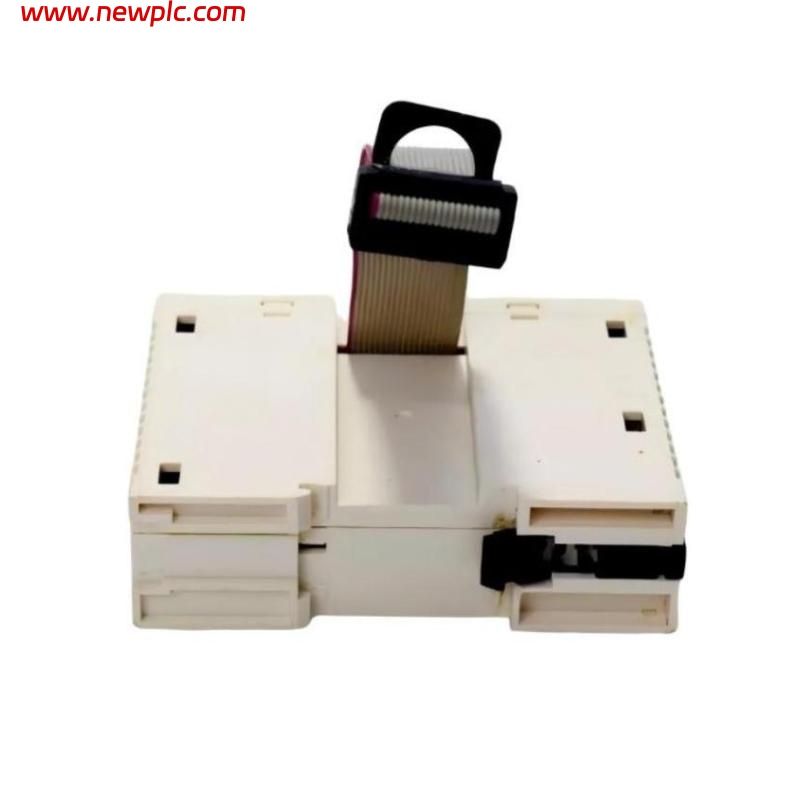

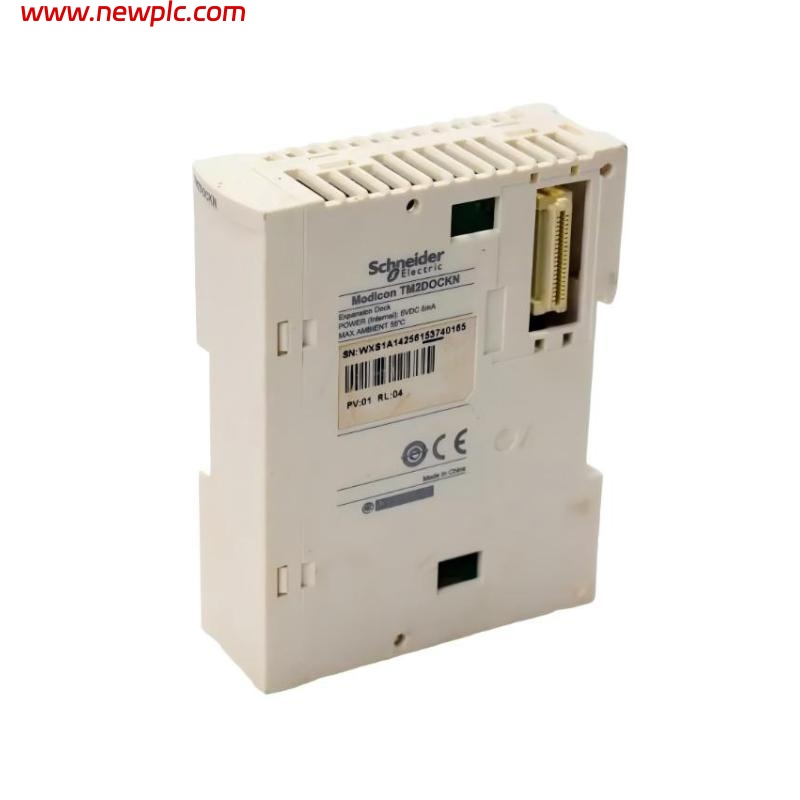

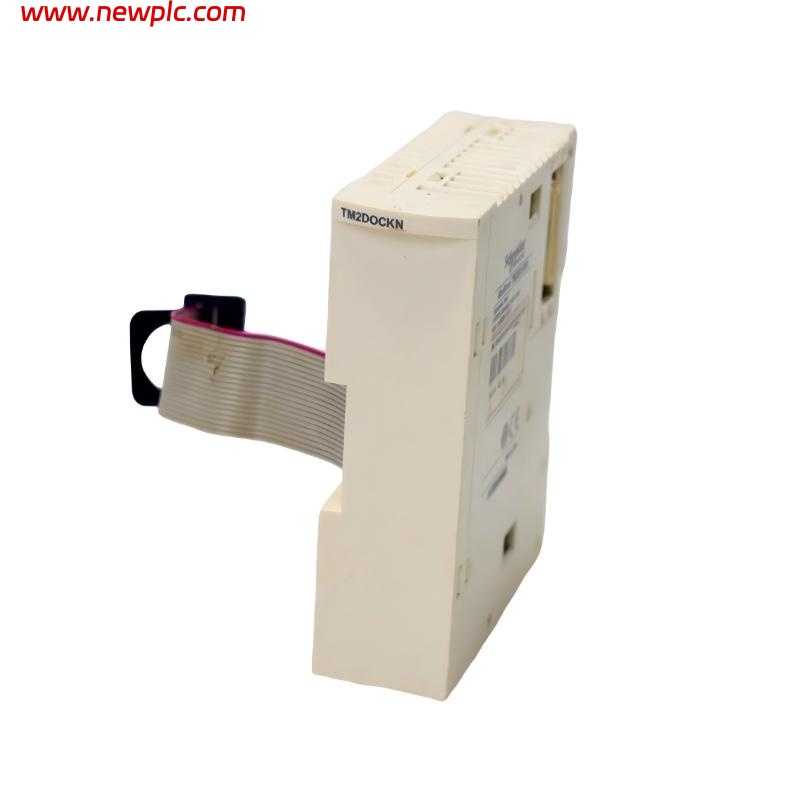

| Model | Schneider TM2DOCKN |
| Type | Extended Interface Module |
| Function | Connects TM2 expansion modules to the main PLC |
| Compatible Series | Modicon TM200 / M200 |
| Expansion Support | Supports cascading TM2 I/O modules |
| Interface Type | TM2 expansion interface |
| Isolation | Internal signal isolation |
| Operating Voltage | Powered by the main PLC |
| Power Consumption | ≤ 1 W |
| Operating Temperature | 0 ~ 55°C |
| Storage Temperature | –25 ~ 70°C |
| Dimensions | 90 x 115 x 60 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the main purpose of the TM2DOCKN?
A1: It is used to connect TM2 expansion modules to the main controller.
Q2: Does the module include any I/O channels?
A2: No, it only serves as an expansion interface.
Q3: Can the TM2DOCKN operate independently?
A3: No, it must be used with a TM200/M200 PLC.
Q4: Does it need an external power supply?
A4: No, it is powered by the main PLC.
Q5: How many TM2 modules can be connected?
A5: The number depends on the PLC’s expansion capability.
Q6: How is the module mounted?
A6: It is mounted on a standard DIN rail.
Q7: Does it include isolation protection?
A7: Yes, it features internal signal isolation.
Q8: What are the module’s dimensions and weight?
A8: Dimensions are 90 x 115 x 60 mm, and weight 0.25 kg.
