Technical Specifications
| Item | Specification |
|---|---|

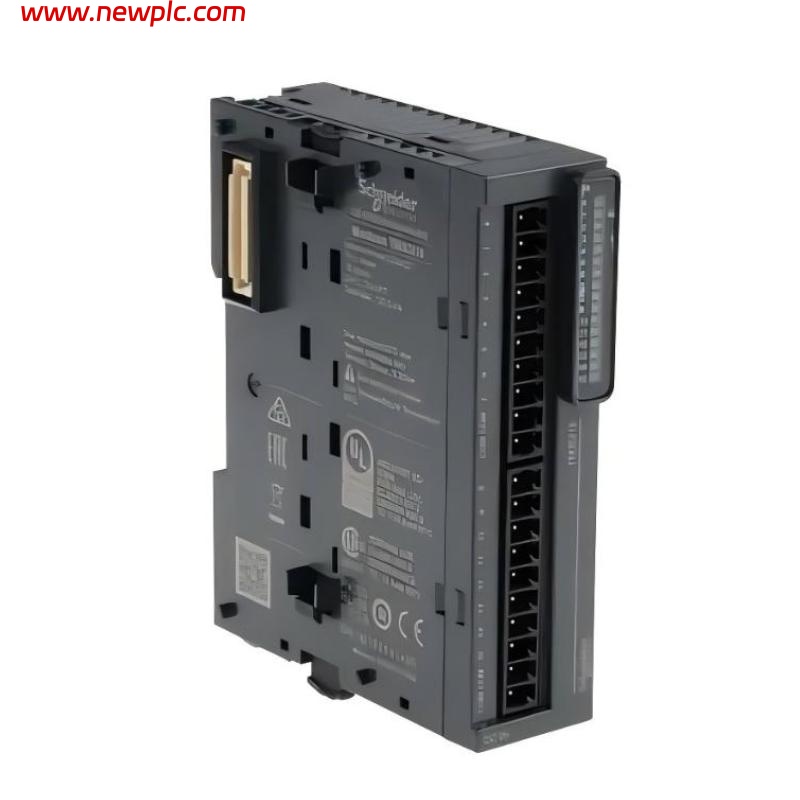

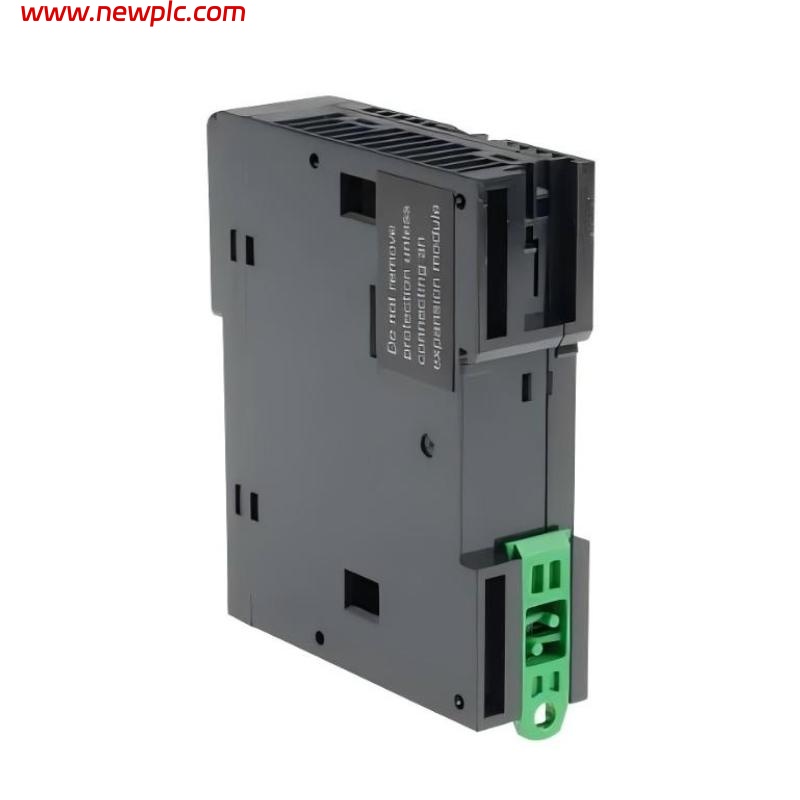

| Model | Schneider TM3DI16 |
| Type | Digital Input Module |
| Input Channels | 16 channels |
| Input Type | 24 VDC digital inputs |
| Input Voltage Range | 20.4–28.8 VDC |
| Logic Type | Positive logic (sink/source) |
| Input Filtering | Configurable filter time |
| Isolation | Channel-to-bus isolation |
| Power Supply | Powered via TM3 bus |
| Power Consumption | ≤ 1.5 W |
| Operating Temperature | 0 ~ 55°C |
| Storage Temperature | –25 ~ 70°C |
| Dimensions | 90 x 84.6 x 27.4 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: How many digital inputs does the TM3DI16 provide?
A1: It provides 16 digital input channels.
Q2: What is the supported input voltage?
A2: 20.4–28.8 VDC, nominal 24 VDC.
Q3: Does it support input filtering?
A3: Yes, filtering time can be configured.
Q4: Is there isolation?
A4: Yes, channel-to-bus isolation is included.
Q5: How is the module powered?
A5: Powered through the TM3 bus.
Q6: Which PLC models are compatible?
A6: Compatible with Modicon TM200 / M221 / M241 / M251.
Q7: How is it mounted?
A7: Installed on a DIN rail.
Q8: What are the module’s dimensions and weight?
A8: Dimensions are 90 x 84.6 x 27.4 mm; weight 0.1 kg.
