Technical Specifications
| Parameter | Description |
|---|---|

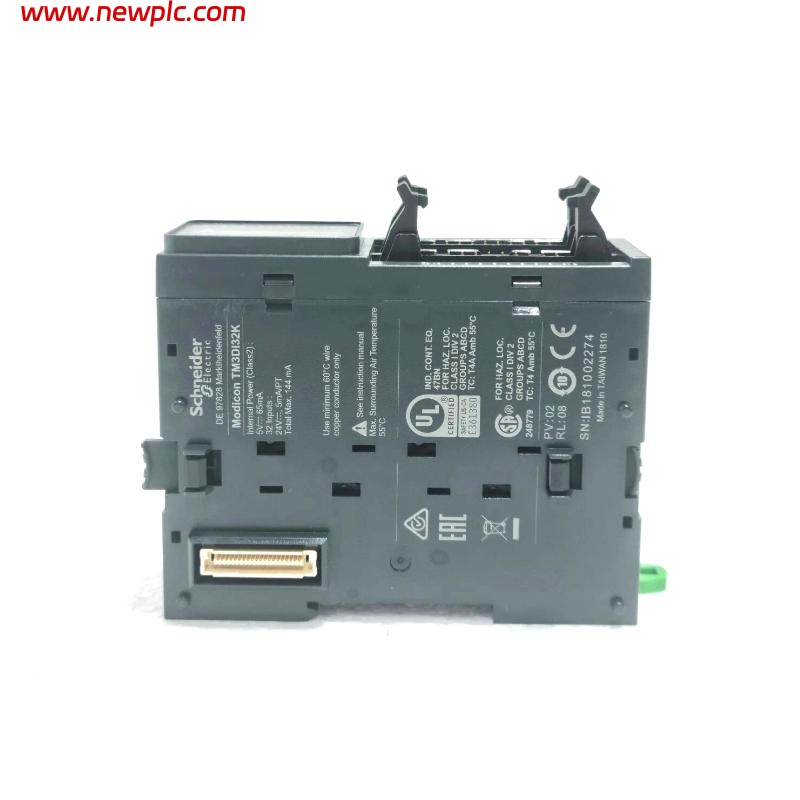

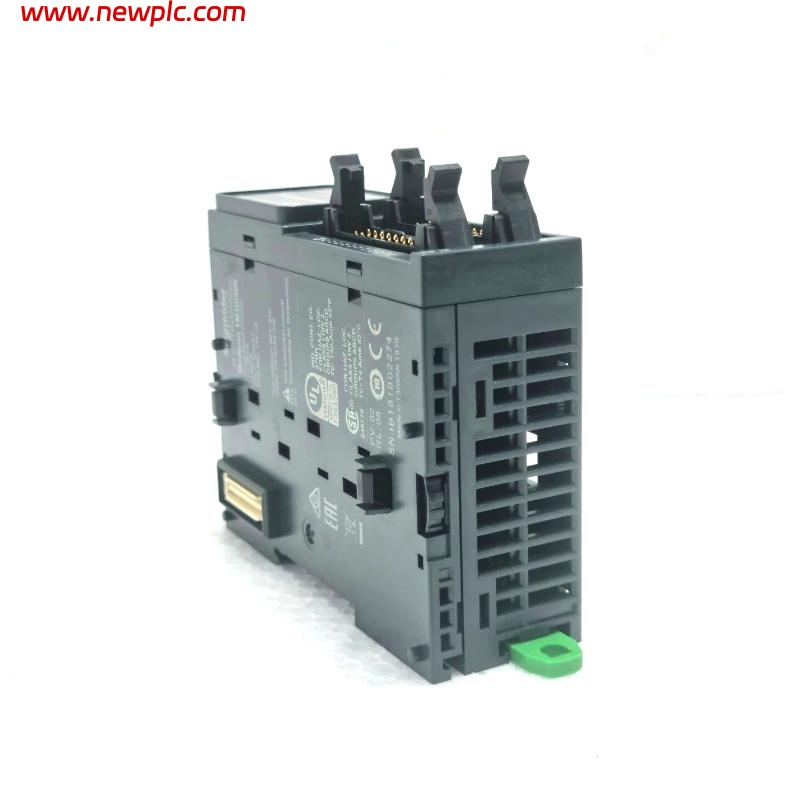

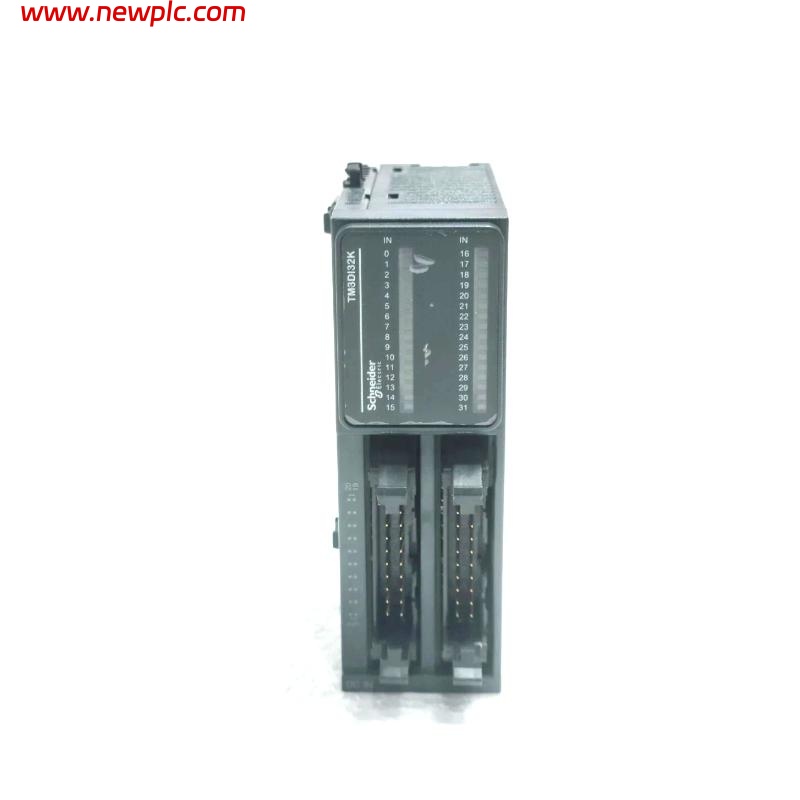

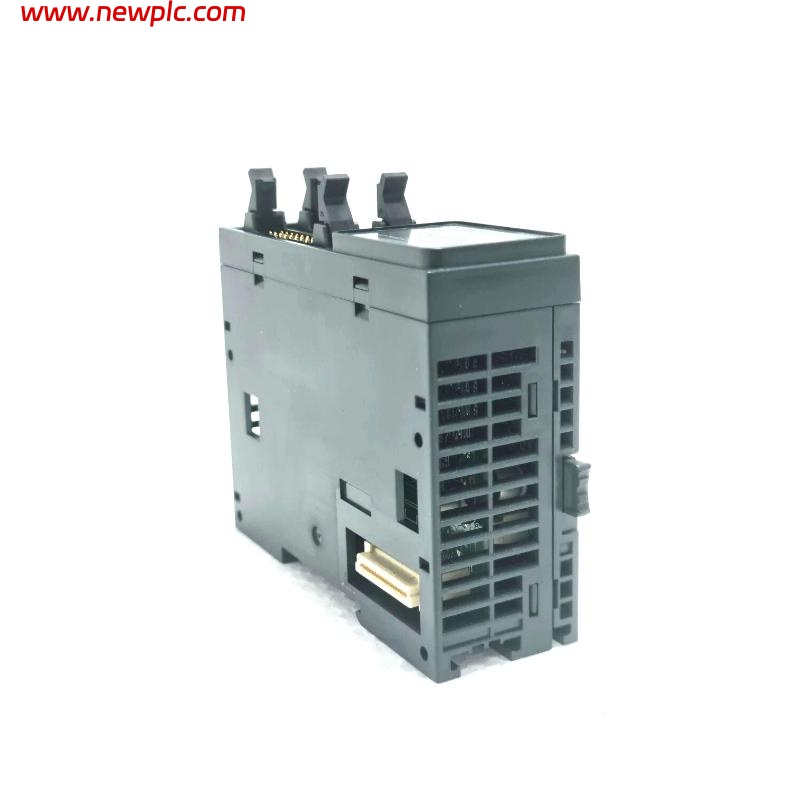

| Product Model | TM3DI32K |
| Product Series | Modicon TM3 |
| Module Type | Discrete Input Module |
| Number of Inputs | 32 channels |
| Input Type | DC |
| Input Voltage | 24 V DC |
| Input Signal Logic | Positive |
| Voltage Range | 19.2 to 30 V DC |
| Input Current | 3 mA (typical) |
| Signal Status Indication | One LED per input channel |
| Isolation | 500 V AC channel-to-logic |
| Connection Type | Removable screw terminal block |
| Mounting | DIN rail mounting |
| Module Width | Single width (32-channel) |
| Dimensions (W x H x D) | 90 x 81.3 x 33.5 mm |
| Weight | 0.1 kg |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -40 to 85°C |
| Protection Rating | IP20 (module body) |
| Certifications | CE, cULus, RCM |
FAQ
FAQ
Q1: What type of input does the TM3DI32K module support?
A1: It supports 24V DC discrete inputs with positive logic.
Q2: Does each input channel have a status indicator?
A2: Yes, each channel is equipped with an individual LED to indicate its status.
Q3: Is there isolation between input channels and logic circuitry?
A3: Yes, each channel is isolated from the internal logic with 500 V AC insulation.
Q4: How is the module mounted?
A4: The module is designed for DIN rail mounting, suitable for control panel integration.
Q5: Does the TM3DI32K support hot swapping?
A5: No, the module does not support hot swapping. Power must be turned off before installation or removal.
Q6: Which PLCs are compatible with TM3DI32K?
A6: It is primarily compatible with Modicon M221, M241, and M251 controllers.
Q7: What type of terminal connection does the module use?
A7: It uses removable screw terminal blocks for convenient wiring and maintenance.
Q8: In what applications can this module be used?
A8: It is ideal for discrete signal acquisition in industrial automation, such as monitoring device states and push button inputs.
