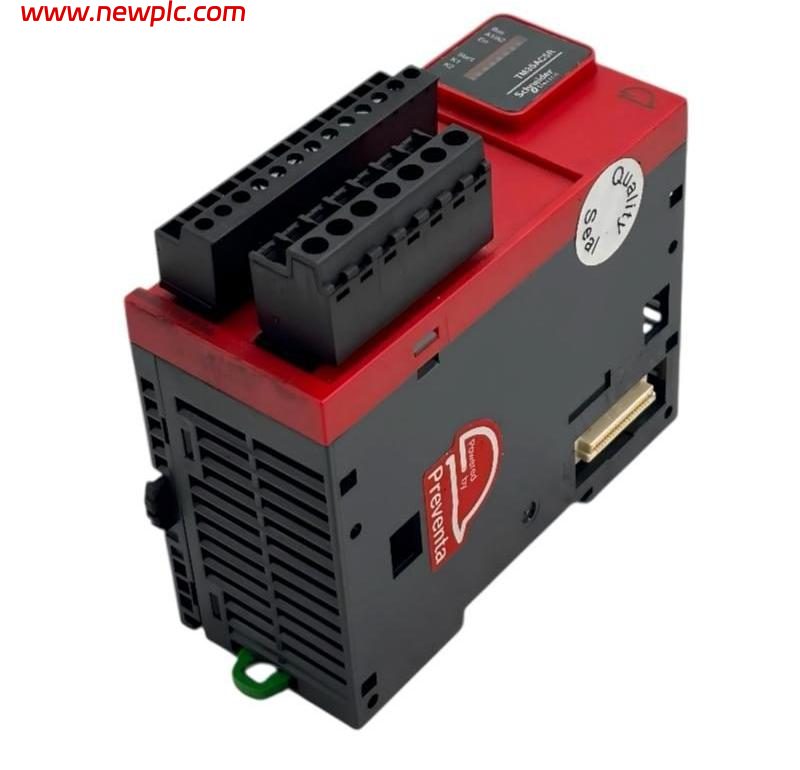

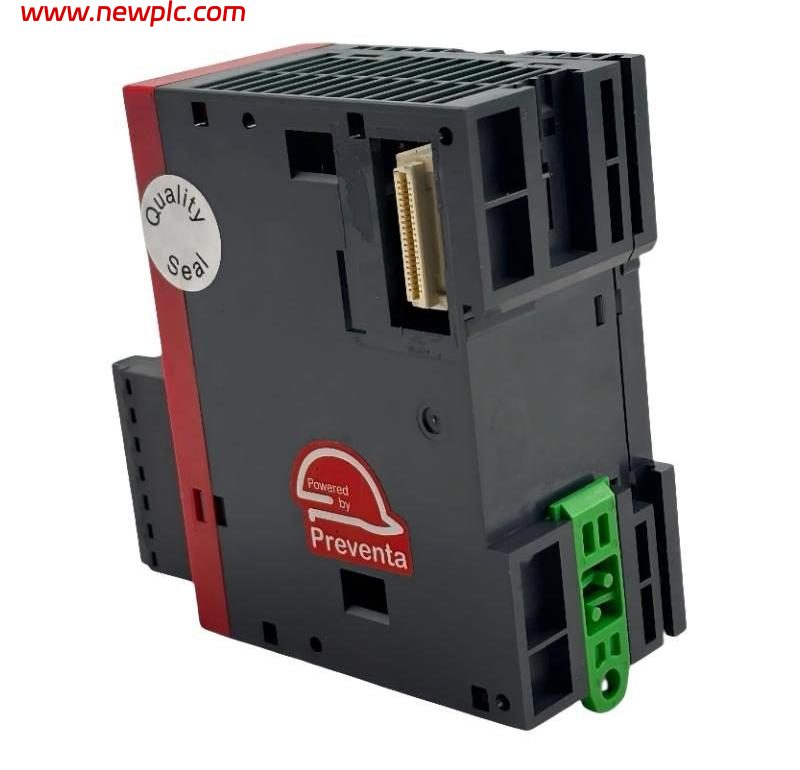

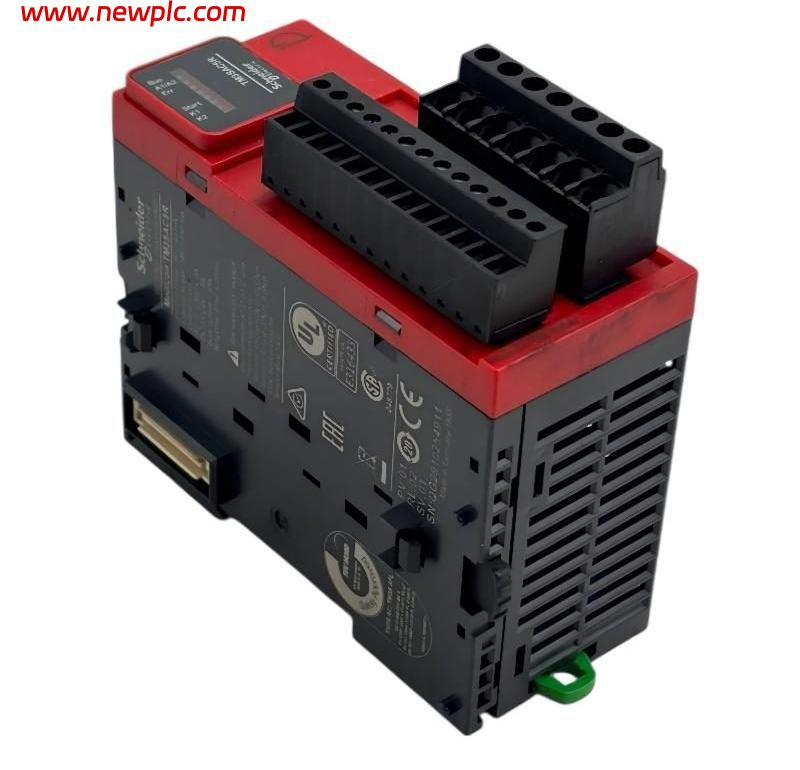

Schneider TM3SAC5R Safety Module

FAQ

Q1: What is the TM3SAC5R?
A: It is a Modicon TM3 safety module designed for emergency-stop and protective-guard monitoring.

Q2: What safety functions does it support?
A: It supports 1-channel and 2-channel emergency-stop monitoring as well as protective-guard monitoring.

Q3: What supply voltage does it require?
A: The module operates from 24 VDC with a permitted range of -15% to +20%.

Q4: How many safety inputs are available?
A: It provides two safety input channels.

Q5: How many safety outputs does it have?
A: It provides three parallel relay outputs, with Stop Category 0 operation.

Q6: What is the maximum output rating?
A: Each output path can handle up to 6 A, with 24 VDC or 230 VAC output voltage supported.

Q7: What are the dimensions and weight?
A: The dimensions are approximately 43.7 × 94 × 73 mm, and the weight is approximately 190 g.

Q8: Which Modicon controllers are compatible with the TM3SAC5R?
A: It is designed for use with Modicon M221, M241, M251 and M262 logic controllers.
