Technical Specifications
| Item | Specification |
|---|---|

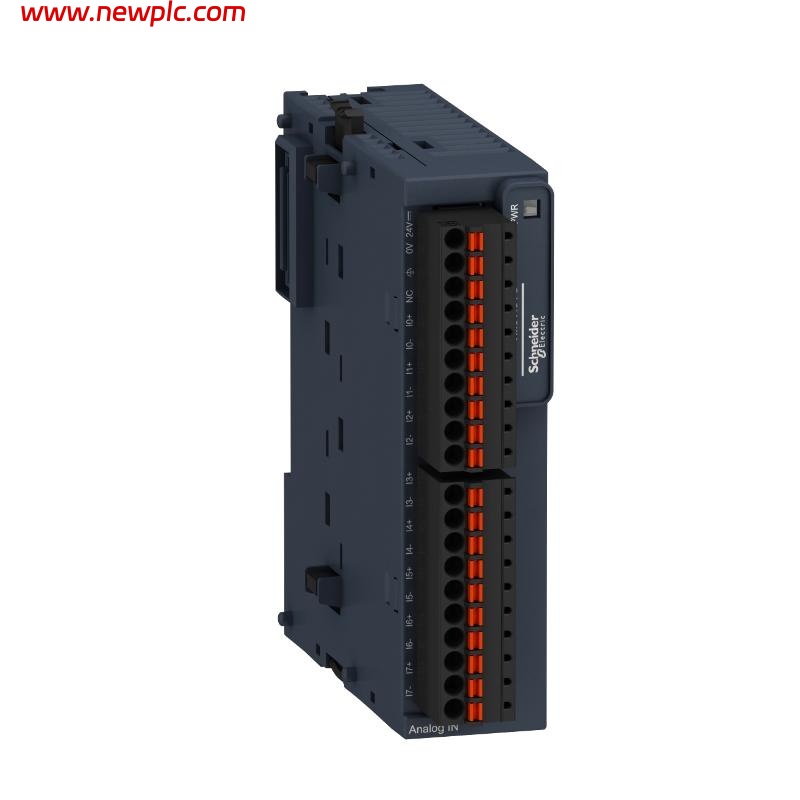

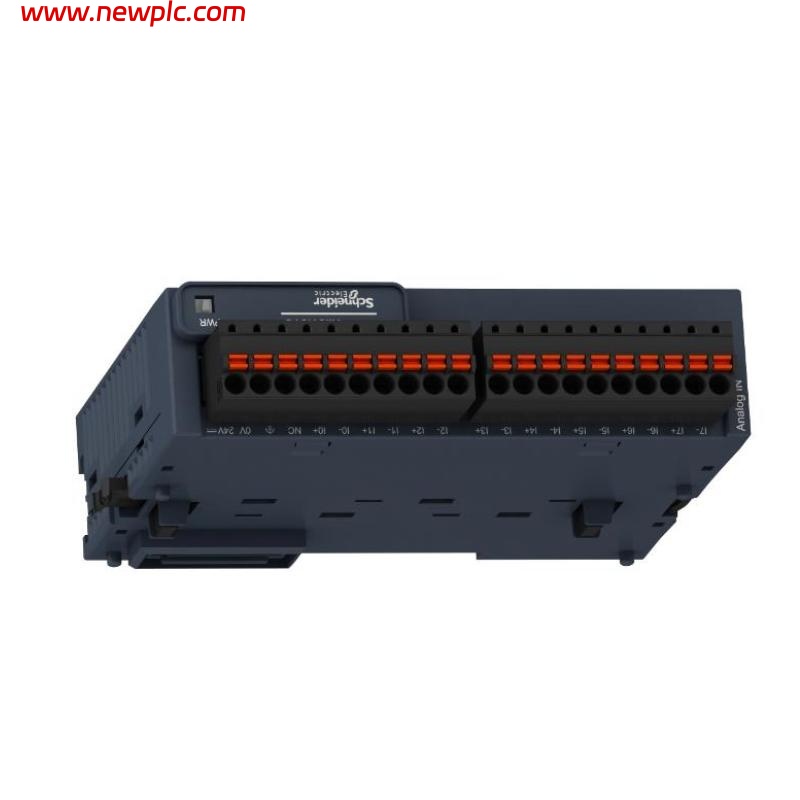

| Model | TM3TI8TG |
| Product Name | Analog Input Module |
| Manufacturer | Schneider Electric |
| Series | Modicon TM3 |
| Product Type | Analog input module |
| Number of Channels | 8 inputs |
| Input Type | Voltage/Current |
| Voltage Range | 0-10 V DC |
| Current Range | 0-20 mA / 4-20 mA |
| Resolution | 12-bit |
| Sampling Rate | Up to 10 samples/sec per channel |
| Input Impedance | >10 kΩ for voltage inputs |
| Status Indication | LED indicator for each channel |
| Diagnostic Features | Input range monitoring, signal fault detection |
| Wiring Type | Spring terminal |
| Mounting Method | TM3 rack mounting |
| Protection Functions | Overvoltage protection, isolation between channels |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| EMC Compliance | Industrial EMC standards |
| Dimensions (L × W × H) | 90 x 70 x 23.6 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: What types of signals can the TM3TI8TG module handle?
A1: It can handle both voltage (0-10 V DC) and current signals (0-20 mA or 4-20 mA).
Q2: How is the operational status of each channel displayed?
A2: Each input channel has an LED that shows normal operation or fault conditions.
Q3: Are the input channels electrically isolated?
A3: Yes, each channel is isolated to prevent interference and ensure accurate signal processing.
Q4: Does the module provide any diagnostic features?
A4: Yes, it monitors input ranges and detects signal faults to alert the system.
Q5: What is the signal resolution of the module?
A5: The module offers 12-bit resolution for precise measurements.
Q6: How frequently does the module sample the input signals?
A6: Up to 10 samples per second per channel can be recorded.
Q7: Is this module suitable for harsh industrial environments?
A7: Yes, it is designed to meet industrial EMC standards and withstand electrical noise.
Q8: What type of connection does the module use for wiring?
A8: The module uses spring terminals for secure and easy wiring connections.
