Technical Specifications
| Parameter | Description |
|---|---|

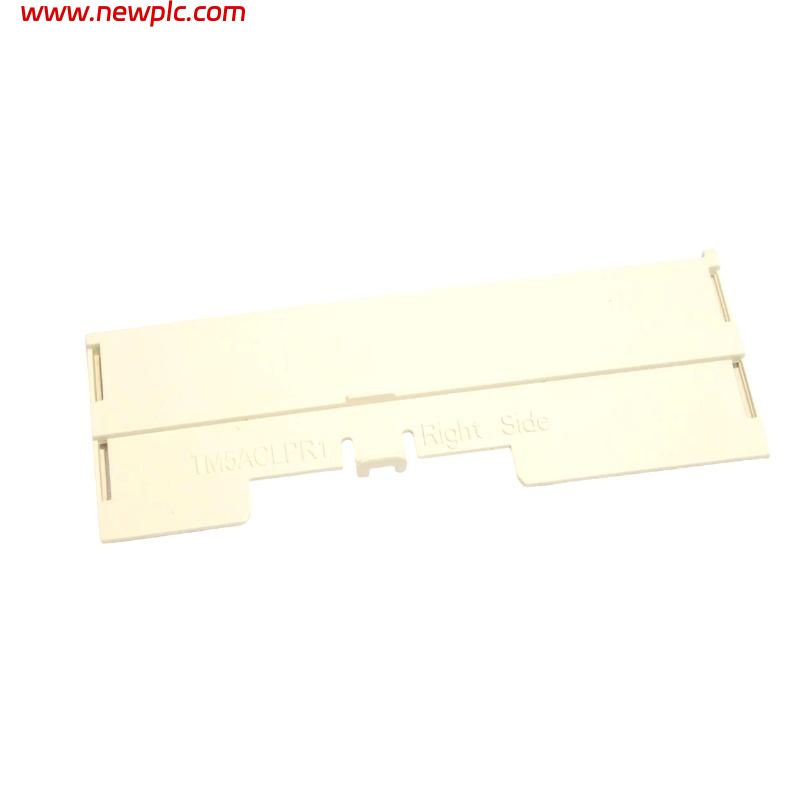

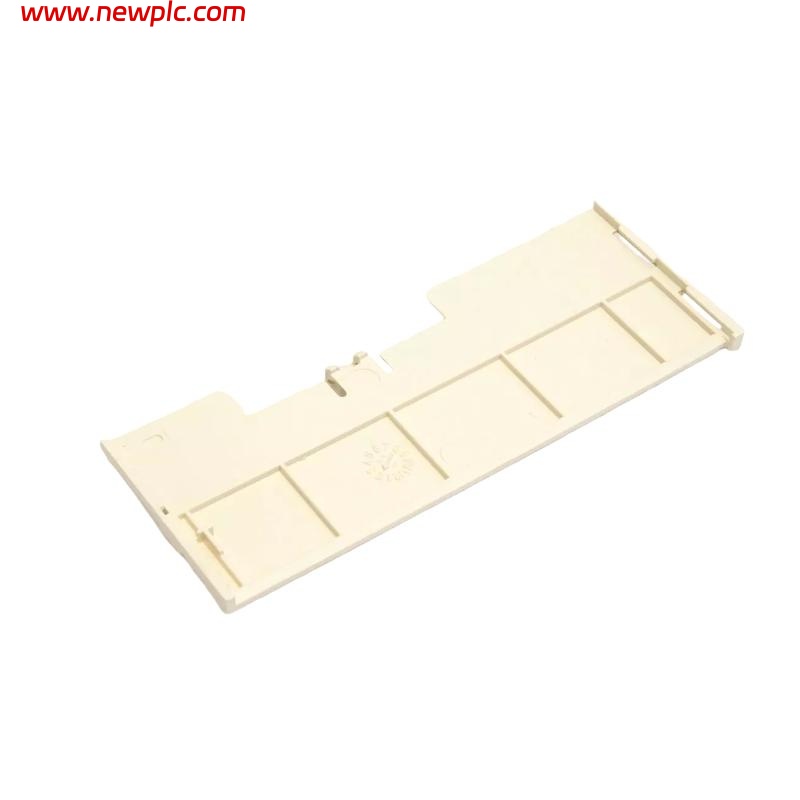

| Product Name | TM5ACLPR1 |
| Product Type | Right Side Bus Base Locking Plate |
| Range Compatibility | Modicon TM5 System |
| Function | Mechanical locking element to terminate the TM5 bus |
| Installation Position | Rightmost position on the TM5 system |
| Material | Plastic |
| Mounting Type | DIN rail mountable |
| Electrical Function | No electrical functionality – mechanical only |
| Environment | Suitable for industrial automation environments |
| Dimensions (W x H x D) | 16 x 53 x 105 mm |
| Weight | 0.025 kg |
FAQ
FAQ
Q1: What is the main purpose of the TM5ACLPR1 module?
A1: The TM5ACLPR1 is used as the right-side mechanical locking plate in the Modicon TM5 system, serving to physically lock and terminate the I/O module bus.
Q2: Does the TM5ACLPR1 have any electrical function?
A2: No, it is a purely mechanical component with no electrical capabilities.
Q3: Can the TM5ACLPR1 be installed anywhere in the TM5 chain?
A3: No, it is designed specifically for the far-right position in the TM5 module chain and should not be used elsewhere.
Q4: What are typical application scenarios for this module?
A4: It is used in industrial automation environments as the final piece to secure and terminate a row of TM5 I/O modules.
Q5: What type of mounting is supported?
A5: It supports DIN rail mounting for ease of integration into control panels.
Q6: What material is it made from?
A6: The module is typically constructed from industrial-grade plastic, offering good heat and impact resistance.
Q7: Does the TM5ACLPR1 require any configuration or programming?
A7: No, it is a plug-and-play mechanical part with no need for configuration or software setup.
Q8: Is TM5ACLPR1 compatible with the Modicon TM7 series?
A8: No, it is specifically designed for the Modicon TM5 series and is not compatible with TM7 or other ranges.
