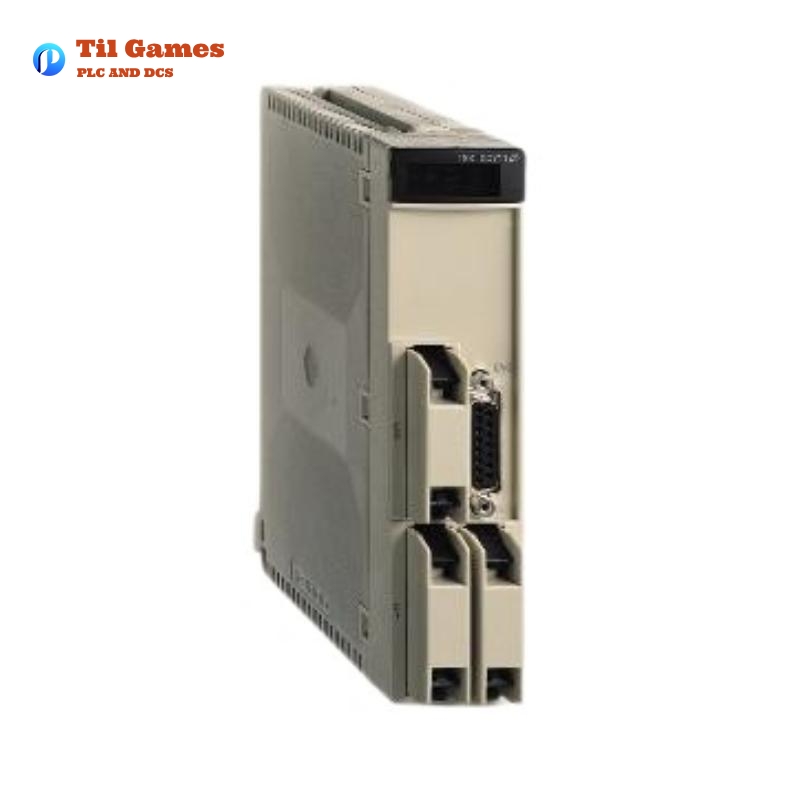

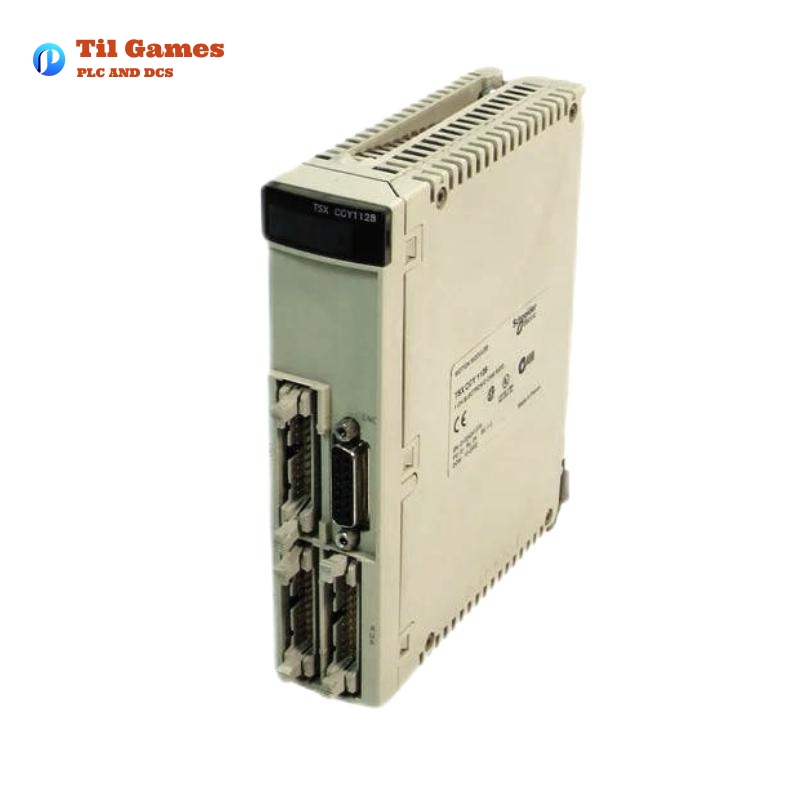

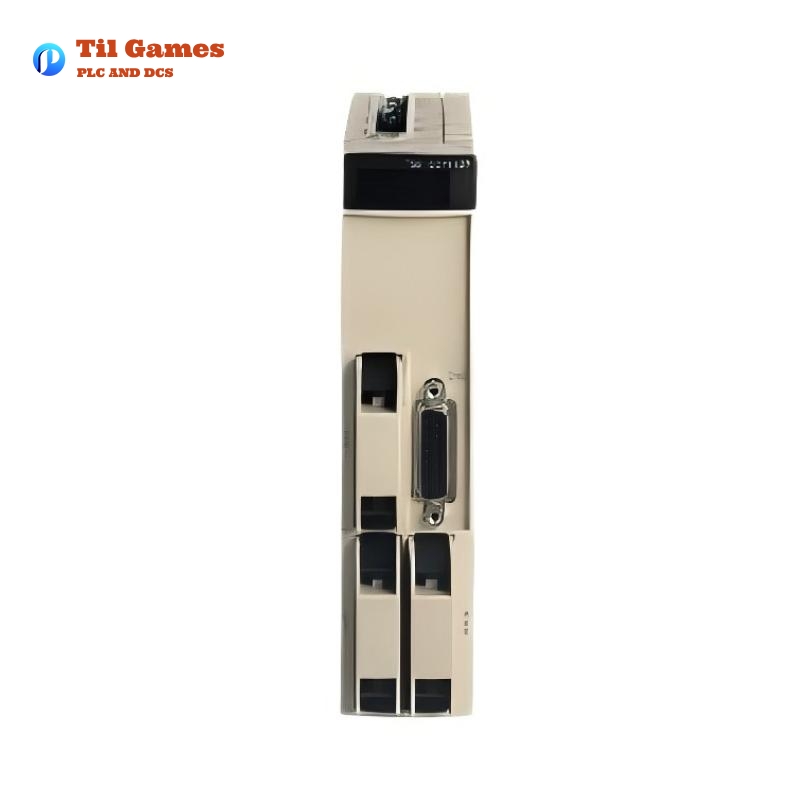

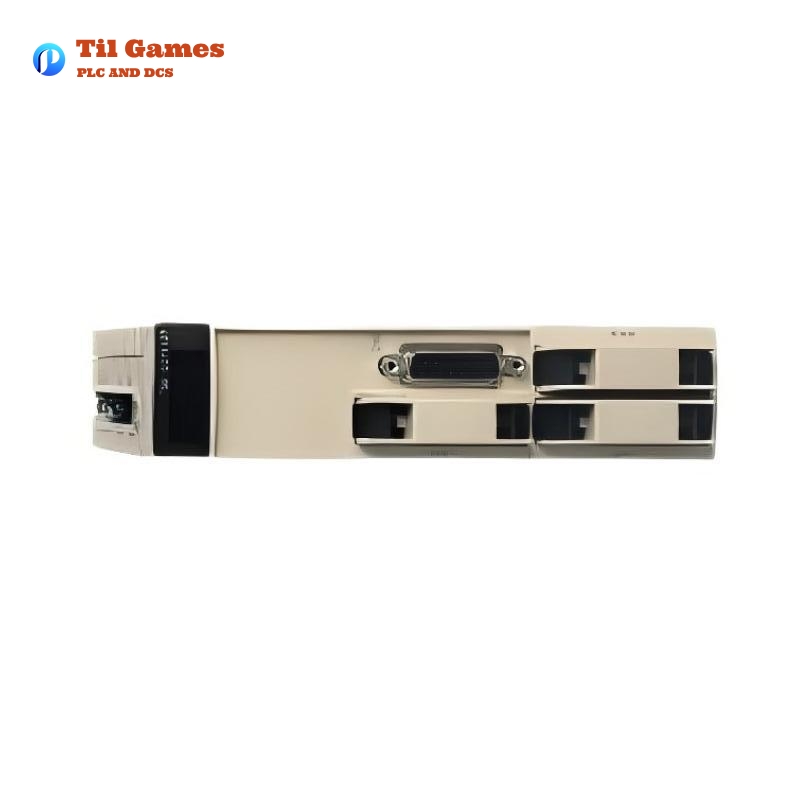

Schneider TSXCCY1128 Electronic Cam Module

Frequently Asked Questions – Schneider TSXCCY1128

Q1: What type of encoders are compatible with the TSXCCY1128 module?
A1: It supports incremental encoders (RS422, 10–30 V), and absolute encoders with SSI or parallel output (e.g., ABE7CPA11).

Q2: What is the maximum number of cams and tracks this module can handle?
A2: The TSXCCY1128 supports up to 128 cams and 32 tracks.

Q3: Can this module detect encoder faults or errors?
A3: Yes, the module includes diagnostic LEDs and monitoring functions to detect encoder faults and power issues.

Q4: What is the minimum output refresh time achievable?
A4: The minimum output refresh time is 50 microseconds for configurations with 16 outputs.

Q5: Is it possible to connect both incremental and absolute encoders simultaneously?
A5: No, the module supports either incremental or absolute encoders per configuration but not both simultaneously.

Q6: What protective features are integrated into the output circuitry?
A6: Outputs are protected with thermal circuit breakers, current limiters, Zener diodes for overvoltage, and reverse polarity protection.

Q7: Can the TSXCCY1128 be used for rotary cam applications?
A7: Yes, it is ideally suited for rotary and linear cam-based timing applications.

Q8: What is the recommended ambient operating temperature range?
A8: The module operates within a temperature range of 0 to 60 °C (32 to 140 °F).

Electronic Cam Module Schneider TSXCCY1128
