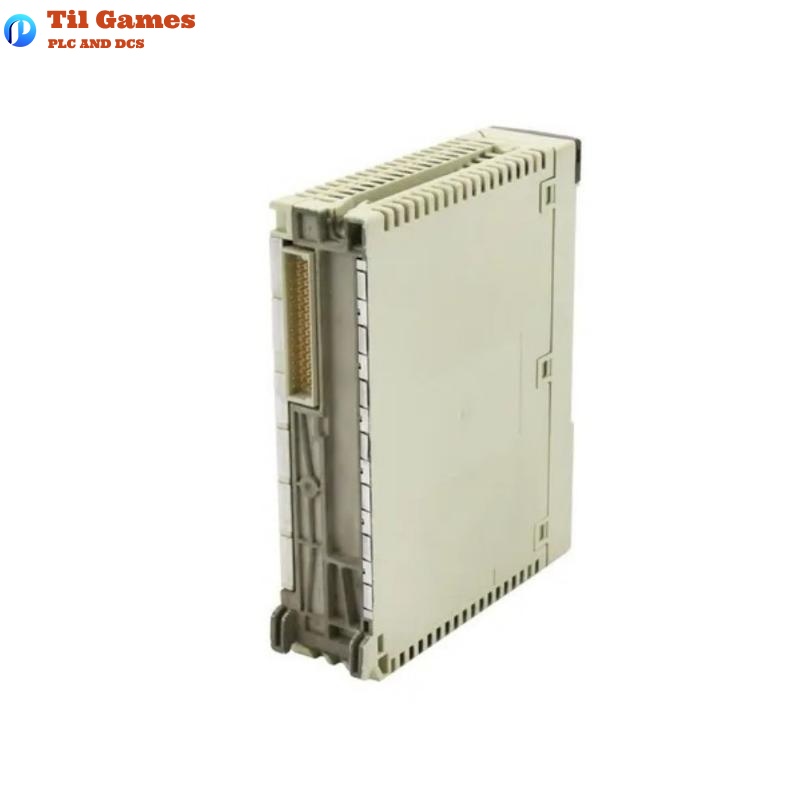

Technical Specifications
| Parameter | Description |
|---|---|
| Product Range | Modicon Premium Automation Platform |
| Product Type | Counter Module |
| I/O Modularity | 2 channels |
| Electrical Circuit Type | Auxiliary output EN/IEC 61131 standard |
| Counting Frequency | 40 kHz |
| Power Dissipation | 4.5…6 W |
| Cycle Time | 5 ms |
| Discrete Input Logic | Current sink (preset, enable, read), IEC 1131 Type 2 |
| Input Logic | Positive logic |
| Input Compatibility | PNP/NPN 2/3-wire proximity sensors; 10–30 V totem pole incremental encoder; 5 V RS422 encoder |
| Input Voltage | 24 V / 18 mA (proximity); 24 V / 7 mA (auxiliary); 5 V / 18 mA (encoder) |
| Input Voltage Limits | ≤ 5.5 V (encoder); 19…30 V (proximity and auxiliary) |
| Voltage State 1 Guaranteed | ≥ 2.4 V (encoder); ≥ 11 V (proximity and auxiliary) |
| Current State 1 Guaranteed | ≥ 3.7 mA (encoder); ≥ 6 mA (proximity and auxiliary) |
| Voltage State 0 Guaranteed | ≤ 1.2 V (encoder); ≤ 5 V (proximity and auxiliary) |
| Current State 0 Guaranteed | ≤ 1 mA (encoder); ≤ 2 mA (proximity and auxiliary) |
| Response Time | < 2.5 ms (sensor voltage loss at 24 V auxiliary input) |
| Input Impedance | Encoder: >270 Ω at 2.4 V; 400 Ω at rated; Proximity: 1400 Ω; Auxiliary: 3400 Ω |
| Output Voltage | 24 V DC |
| Rated Output Current | 0.5 A |
| Output Voltage Range | 19…30 V |
| Max Voltage Drop | < 0.5 V at state 1 |
| Output Compatibility | Positive logic DC inputs (resistance ≤ 15 kΩ), auxiliary output |
| Max Leakage Current | 0.1 mA |
| Switching Frequency | < 0.6/LI² Hz (inductive load) |
| Output Overload Protection | Thermal tripping (programmatic or automatic) |
| Output Short-Circuit Protection | Thermal tripping (programmatic or automatic) |
| Output Overvoltage Protection | Zener diode |
| Reverse Polarity Protection | Reverse diode on supply |
| Sensor Power Check | Supported |
| Current Consumption | 280 mA (5 V DC); 30 mA (24 V DC) |
| Module Format | Standard |
| Local Signaling | RUN: green LED; External fault: red LED; Internal fault: red LED; Channel diagnostics: 2 green LEDs |

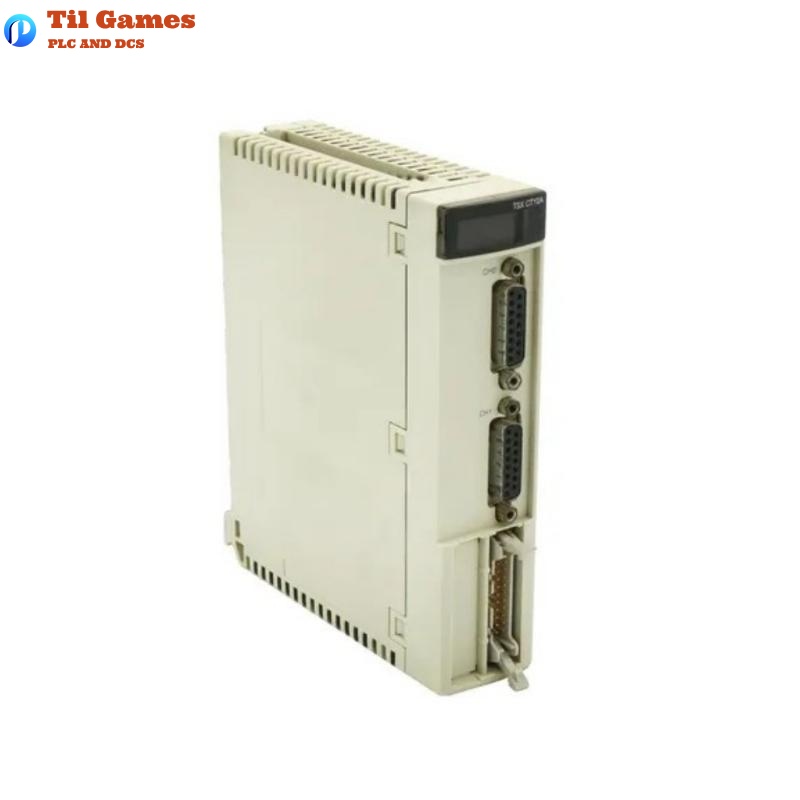

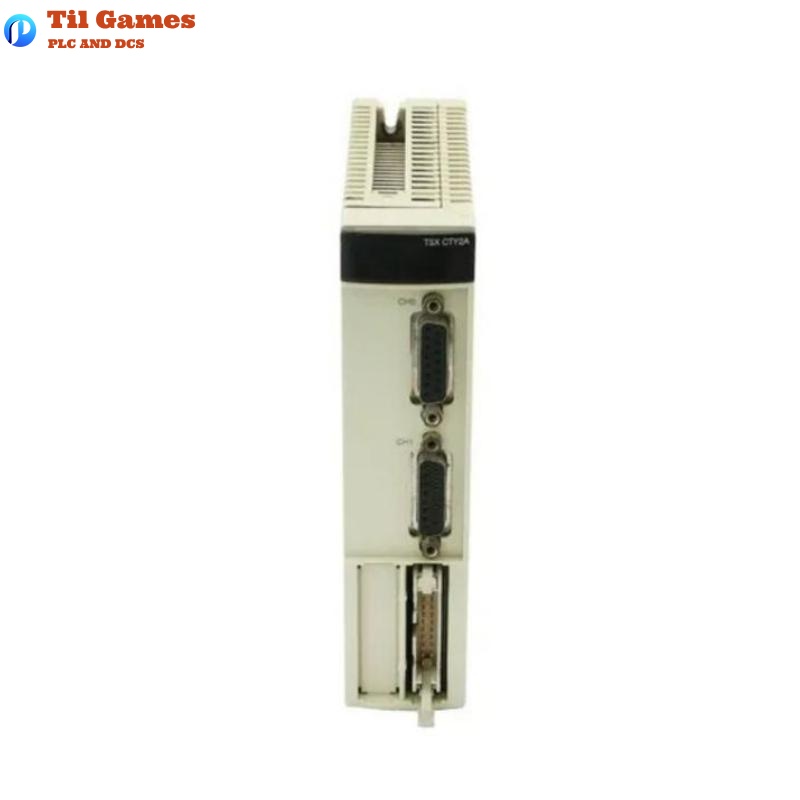

| Electrical Connection | 1 × HE-10 20-pin connector; 2 × SUB-D 15-pin connectors |
| Dimensions (W × H × D) | 55 × 180 × 260 mm |
| Net Weight | 0.32 kg (0.71 lb) |
| Protective Treatment | TC |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -25…70 °C (-13…158 °F) |
| Relative Humidity | 5…95% non-condensing |
| Operating Altitude | ≤ 2000 m (6561.68 ft) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of encoders are supported by TSXCTY2A?
A1: It supports incremental encoders with 5 V RS422 and 10–30 V totem pole outputs.
Q2: What is the input logic type of this module?
A2: Positive logic; compatible with both PNP and NPN proximity sensors.
Q3: What is the response time of the TSXCTY2A module?
A3: Less than 2.5 ms when auxiliary 24V input voltage is lost.
Q4: How many channels does the module support?
A4: It supports 2 counting channels.
Q5: Does it have protection against overload and short circuits?
A5: Yes, it includes thermal tripping and current limiting protections.
Q6: What are the dimensions and weight of the module?
A6: The module measures 55×180×260 mm and weighs 0.32 kg.
Q7: Is there output overvoltage protection on this module?
A7: Yes, a Zener diode is used for overvoltage protection.
Q8: What humidity conditions can this module operate under?
A8: It operates in environments with 5–95% relative humidity, without condensation.
