Technical Specifications
| Item | Description |
|---|---|

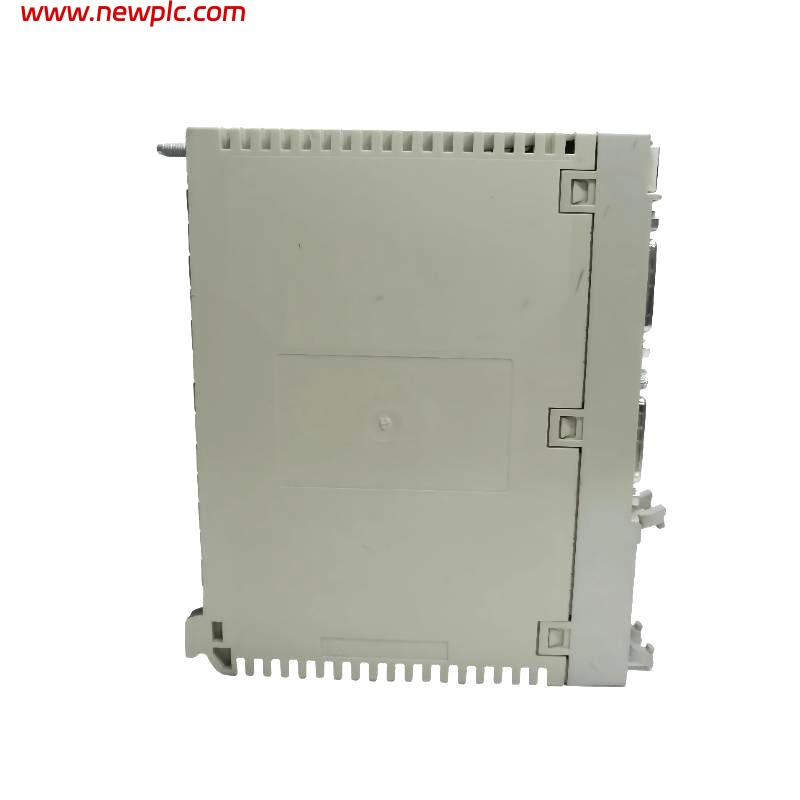

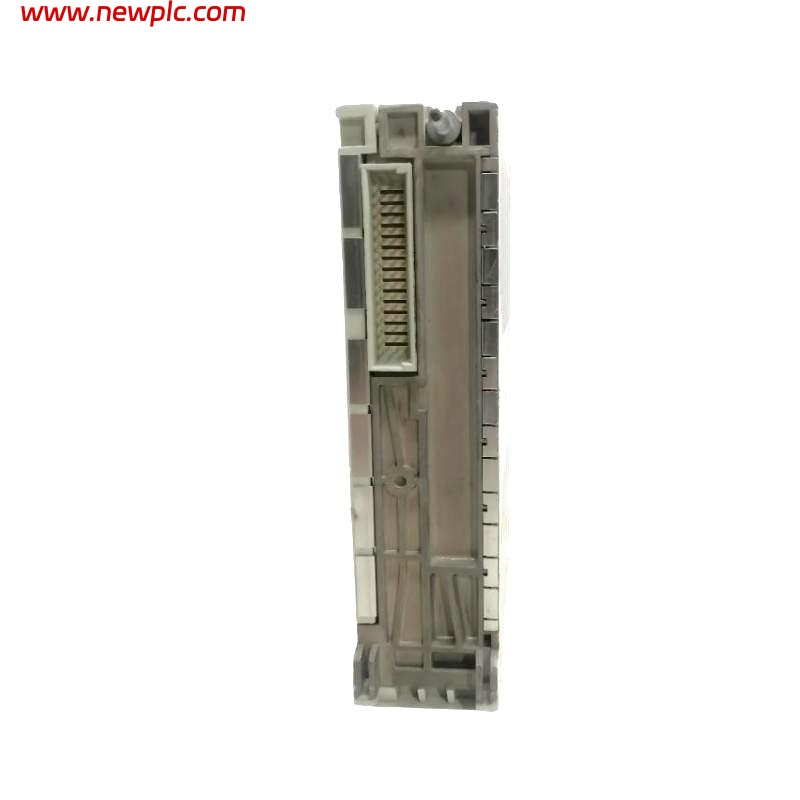

| Model | Schneider TSXCTY4A |
| Product Type | Counter Module |
| Function | Provides counting functionality for Schneider TSX series PLC systems |
| Operating Voltage | 24 VDC |
| Input Type | Digital pulse inputs |
| Counting Modes | Up, Down, Up/Down, and pulse accumulation |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –25°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Dimensions | 60 ×180 × 260 mm |
| Weight | 0.43 kg |
| Mounting Method | DIN rail or TSX base installation |
| Communication | TSX series backplane interface |
FAQ
FAQ
Q1: What is the main function of the TSXCTY4A?
A1: It provides digital counting capabilities for Schneider TSX PLC systems.
Q2: Which systems is this module compatible with?
A2: It is compatible with Schneider TSX series PLC systems.
Q3: Does the module require external power?
A3: Yes, it operates at 24 VDC.
Q4: How many counting modes does the module support?
A4: It supports Up, Down, Up/Down, and pulse accumulation modes.
Q5: Is the module field-replaceable?
A5: Yes, it can be replaced without modifying system wiring.
Q6: What type of signals does the module handle?
A6: Digital pulse inputs from sensors or other devices.
Q7: Does it require configuration after installation?
A7: Configuration is done through the TSX PLC programming environment.
Q8: What should be checked if the module malfunctions?
A8: Verify power supply, backplane connection, and input signal integrity.
