Technical Specifications
| Item | Description |
|---|---|

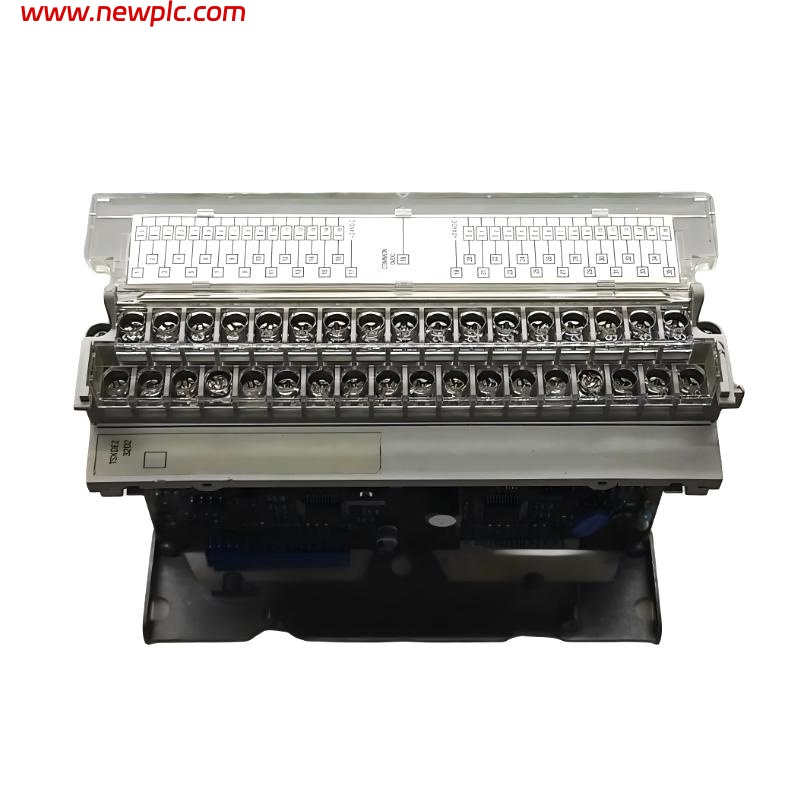

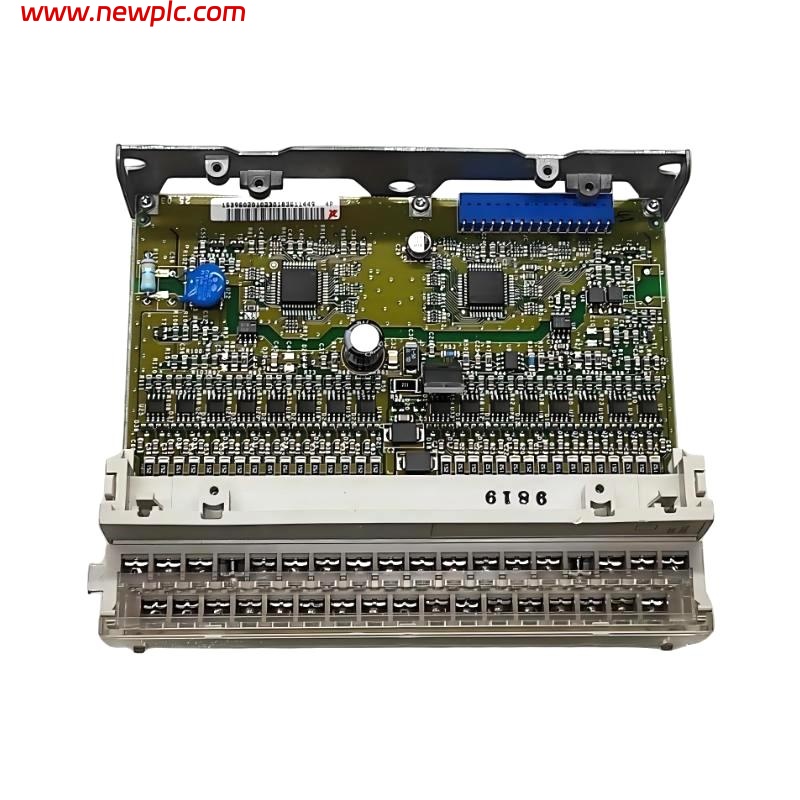

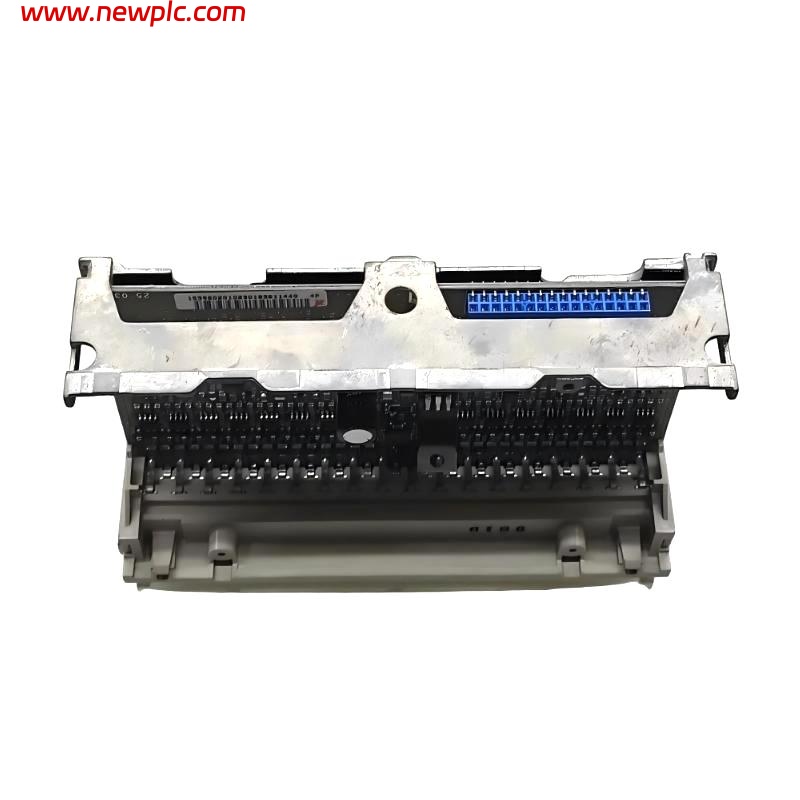

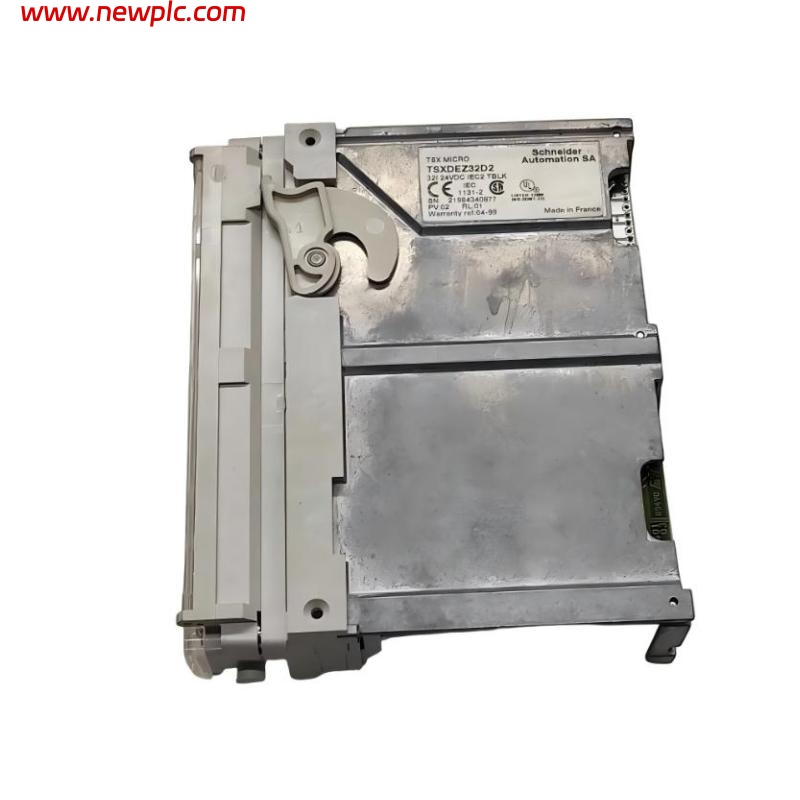

| Model | Schneider TSXDEZ32D2 |
| Product Type | Discrete Input Module |
| Function | Provides 32-channel digital input interface for Schneider TSX PLC systems |
| Input Voltage | 24 VDC |
| Input Type | Sinking or sourcing digital inputs |
| Channel Count | 32 inputs |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –25°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Dimensions | Package dimensions: 55 × 180 × 260 mm |
| Weight | Package weight: 0.54 kg |
| Mounting Method | DIN rail or TSX base installation |
| Communication | TSX series backplane interface |
FAQ
FAQ
Q1: What is the main function of the TSXDEZ32D2?
A1: It provides 32-channel digital input interface for Schneider TSX PLC systems.
Q2: Which systems is this module compatible with?
A2: It is compatible with Schneider TSX series PLC systems.
Q3: Does the module require external power?
A3: Yes, it operates at 24 VDC input voltage.
Q4: How many input channels does the module have?
A4: It has 32 digital input channels.
Q5: Is the module field-replaceable?
A5: Yes, it can be replaced without modifying system wiring.
Q6: What type of signals does the module handle?
A6: Sinking or sourcing digital input signals from field devices.
Q7: Does it require configuration after installation?
A7: Configuration is managed through the TSX PLC programming environment.
Q8: What should be checked if the module malfunctions?
A8: Verify input wiring, power supply, and backplane connection.
