Technical Specifications
| Parameter | Specification |
|---|---|

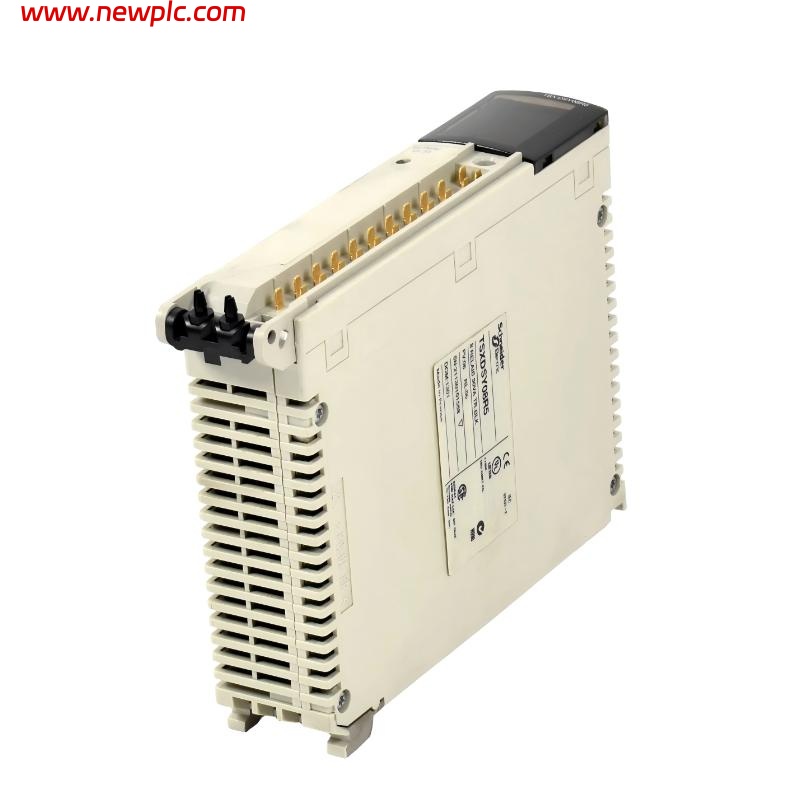

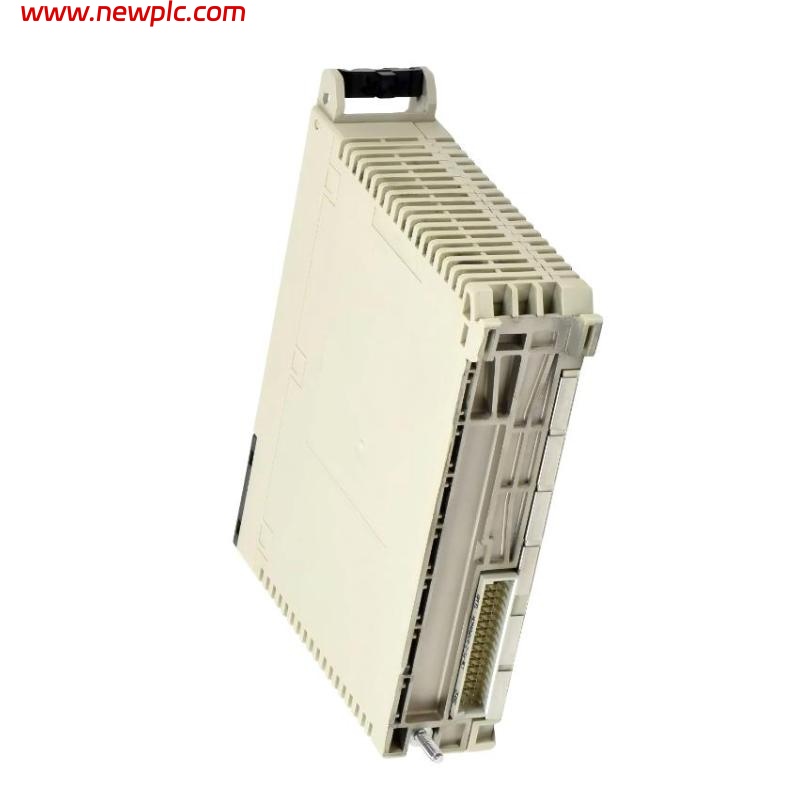

| Model | Schneider TSXDSYO8R5 |
| Type | Discrete Output Module |
| Output Channels | 8 channels |
| Output Type | Relay outputs |
| Rated Output Voltage | 24 V DC / 240 V AC |
| Maximum Output Current | 5 A per channel |
| Total Switching Capacity | 40 A (module limit) |
| Contact Type | Normally Open (NO) |
| Electrical Isolation | Channel to logic isolation |
| Response Time | < 10 ms |
| Diagnostic Indicators | LED status indication per channel |
| Protection Features | Overcurrent protection, arc suppression |
| Output Switching Frequency | Up to 1 Hz (rated load) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Mounting | Rack-mounted module |
| Communication Interface | Backplane bus |
| Dimensions | 55 × 180 × 260 mm |
| Weight | 0.554 kg |
| Application | PLC output control, machinery, automation |
FAQ
FAQ
Q1: What type of loads can the TSXDSYO8R5 control?
A1: It can control both AC and DC loads such as contactors, solenoid valves, lamps, and motors within rated limits.
Q2: Are the outputs isolated from the PLC logic?
A2: Yes, electrical isolation is provided between field circuits and PLC logic.
Q3: What happens if a load draws too much current?
A3: Built-in overcurrent protection helps prevent damage and unsafe conditions.
Q4: Can each output channel be controlled independently?
A4: Yes, all eight outputs are individually addressable and controlled by the PLC program.
Q5: Does the module provide status feedback?
A5: LED indicators on the front panel display real-time output status.
Q6: Is this module suitable for frequent switching applications?
A6: It is designed for moderate switching rates; for high-speed switching, solid-state modules are recommended.
Q7: Can this module control inductive loads?
A7: Yes, it can drive inductive loads provided that suitable suppression devices are used externally.
Q8: Is special configuration software required?
A8: No additional software is needed beyond the standard PLC programming environment used with the control system.
