Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon Premium Automation Platform |
| Product or Component Type | Ethernet TCP/IP Module |

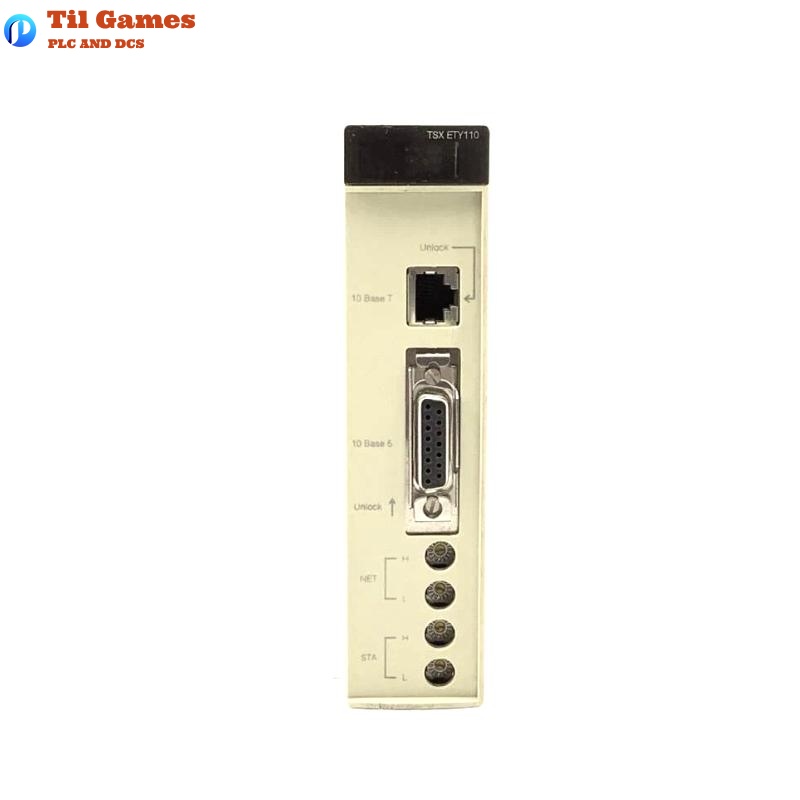

| Physical Interface | AUI – 100BASE-5 (1 AUI cable) |
| RJ45 – 10BASE-T (1 twisted pair) | |
| Transmission Rate | 10 Mbit/s |
| Communication Services | Modbus TCP messaging, Optional TCP open |
| SNMP agent, Uni-TE messaging | |
| Common words, Ethway/X-Way | |
| Application to application via Ethway/X-Way | |
| Communication Port Protocols | Modbus TCP, Uni-Telway, Ethway/X-Way |
| Maximum Number of Connections | 64 |
| Web Server | Transparent Ready Class C10 |
| Web Features | Data Editor, Rack Viewer, FactoryCast configurable |
| User Web Page Size | 1.4 MB |
| Local Signalling | COL (Collision Detection) – 1 LED |
| RUN (Network Status) – 1 LED | |
| ERR (Port Fault) – 1 LED | |
| TX/TR (Tx/Rx Activity) – 1 LED | |
| Power Supply | Supplied via rack power supply |
| Current Consumption | 1200 mA @ 5 V DC with remote power supply (AUI) |
| 800 mA @ 5 V DC without remote power supply (RJ45) | |
| Module Format | Standard |
| Marking & Certifications | CE, UL 508, CSA 1010-1 |
| Standards Compliance | EN 61131-2, FM Class 1 Div. 2 (Groups A, B, C, D) |
| IP Degree of Protection | IP20 |
| Operating Ambient Temperature | 0…60 °C (32…140 °F) |
| Relative Humidity | 10…95% at 60 °C, non-condensing |
| Dimensions (W x H x D) | 55 × 180 × 260 mm |
| Net Weight | 0.5 kg (0.82 lb) |
FAQ
FAQ
Q1: What communication protocols does the TSXETY110 support?
A1: It supports Modbus TCP, Uni-Telway, and Ethway/X-Way communication protocols.
Q2: How many devices can the TSXETY110 connect to simultaneously?
A2: The module supports up to 64 simultaneous connections.
Q3: What web features are available on the TSXETY110 module?
A3: The web server includes Data Editor, Rack Viewer, and FactoryCast configuration support.
Q4: What are the LED indicators used for on this module?
A4: LED indicators show collision detection (COL), network status (RUN), Ethernet port fault (ERR), and transmission/reception activity (TX/TR).
Q5: How is the TSXETY110 powered?
A5: It is powered through the rack’s power supply system.
Q6: What is the current consumption of the module?
A6: 1200 mA at 5 V DC when using AUI remote power, and 800 mA at 5 V DC when using RJ45.
Q7: Is the TSXETY110 module compliant with industrial standards?
A7: Yes, it complies with EN 61131-2 and FM Class 1 Division 2 (Groups A, B, C, D) standards.
Q8: What is the size and weight of this module?
A8: It measures 55 × 180 × 260 mm and weighs 0.5 kg.
