Technical Specifications
| Parameter | Specification |
|---|---|

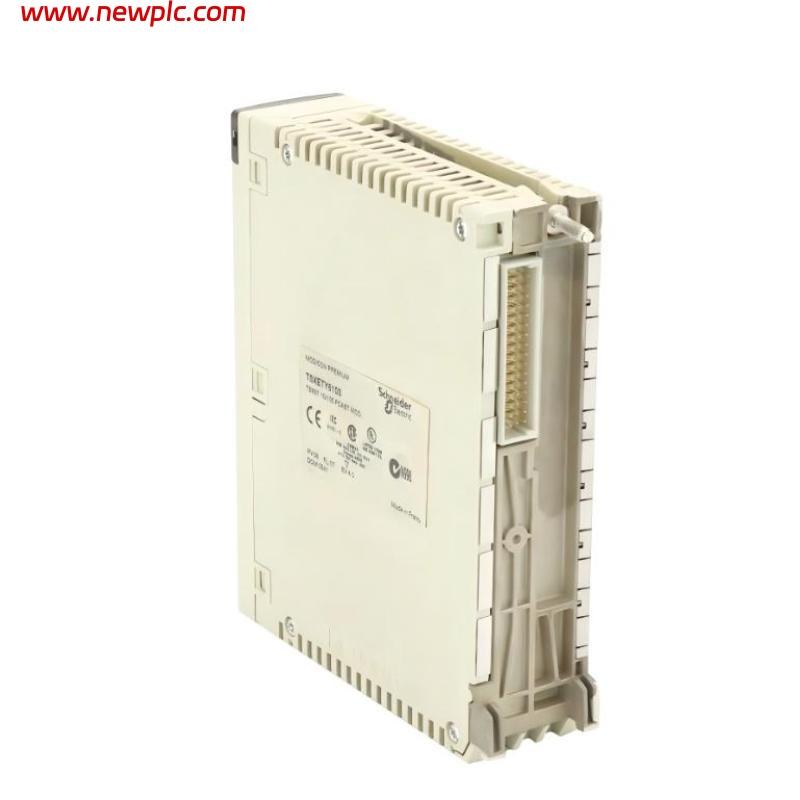

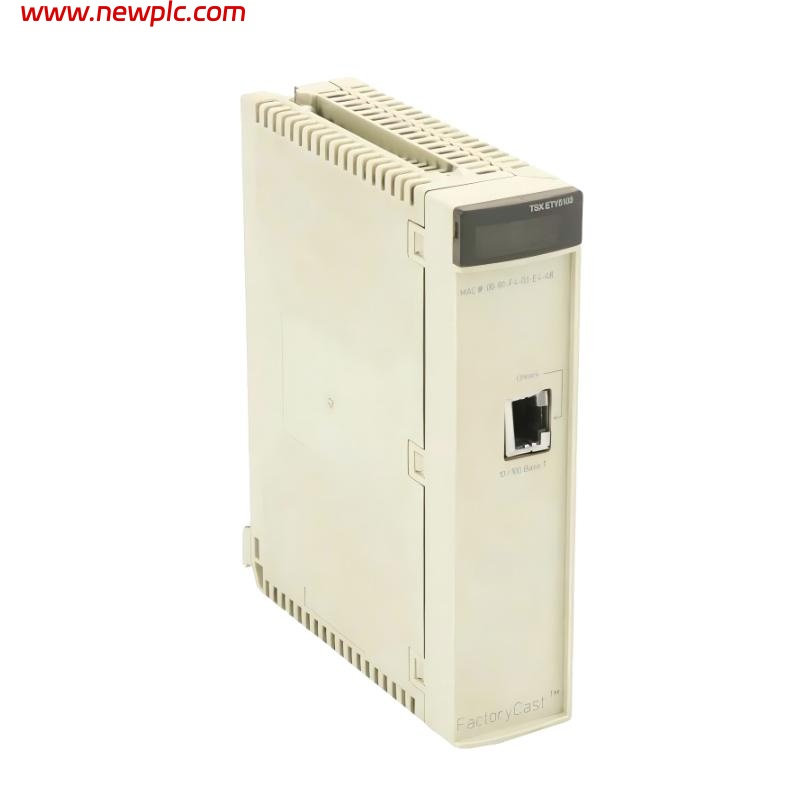

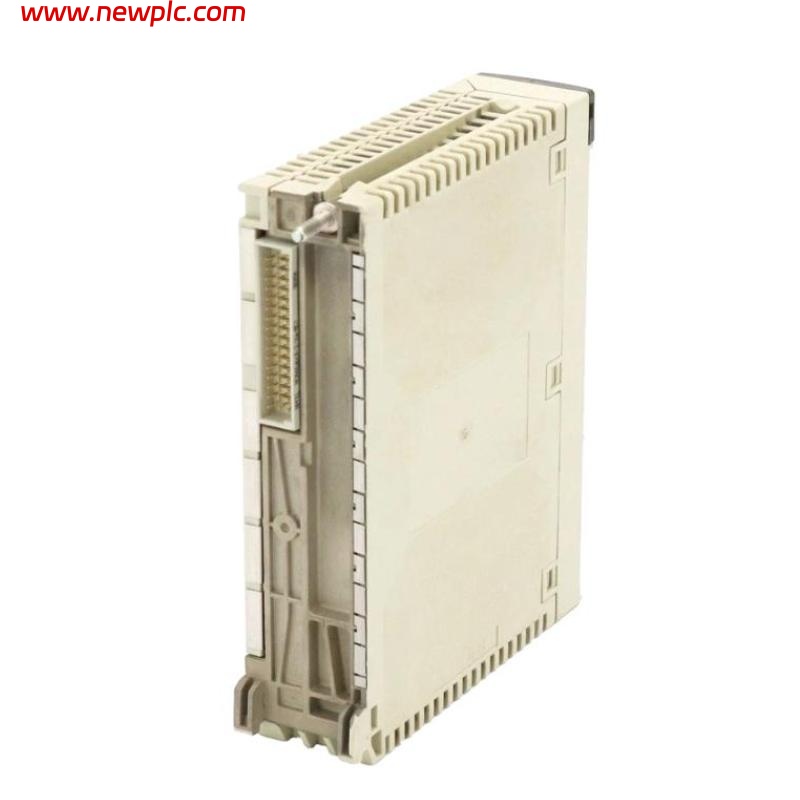

| Model | Schneider TSXETY5103 |
| Type | Ethernet TCP/IP Module |
| Communication Standard | Ethernet TCP/IP |
| Supported Protocols | Modbus TCP, HTTP |
| Ethernet Interface | Single RJ45 port (10/100 Mbps) |
| Network Services | Client / server communications |
| IP Configuration | Static IP, DHCP, BOOTP |
| Max Remote Connections | Up to 32 simultaneous sessions |
| Data Transfer Type | Deterministic cyclic and event-driven |
| Diagnostic Functions | Connection status, error counters, LEDs |
| PLC Compatibility | Modicon Premium series |
| Configuration Method | PLC programming software integration |
| Isolation | Logic / Ethernet electrical isolation |
| Power Supply | Supplied by PLC backplane |
| Typical Power Consumption | < 5 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Mounting | Rack-mounted module |
| Dimensions | 55 × 180 × 260 mm |
| Weight | 0.34 kg |
| Application | Industrial networking, PLC integration, Ethernet I/O |
FAQ
FAQ
Q1: What is the main function of the TSXETY5103?
A1: It provides Ethernet-based communication for PLC systems using TCP/IP networks.
Q2: Which protocols are supported by this module?
A2: It supports Modbus TCP and standard Ethernet TCP/IP communication.
Q3: How is network addressing configured?
A3: IP settings can be configured using static IP, DHCP, or BOOTP.
Q4: Can this module communicate with non-Schneider devices?
A4: Yes, it supports standard Ethernet and Modbus TCP for interoperability with third-party equipment.
Q5: Does the module offer diagnostic features?
A5: Yes, it provides connection monitoring, error counters, and LED indicators.
Q6: How many network connections are supported?
A6: The module supports up to 32 simultaneous TCP/IP connections.
Q7: Is the module suitable for real-time industrial communication?
A7: Yes, it supports deterministic data exchange for time-critical applications.
Q8: Does this module require a separate power supply?
A8: No, it receives power directly from the PLC backplane.
