Technical Specifications
| Item | Specification |
|---|---|

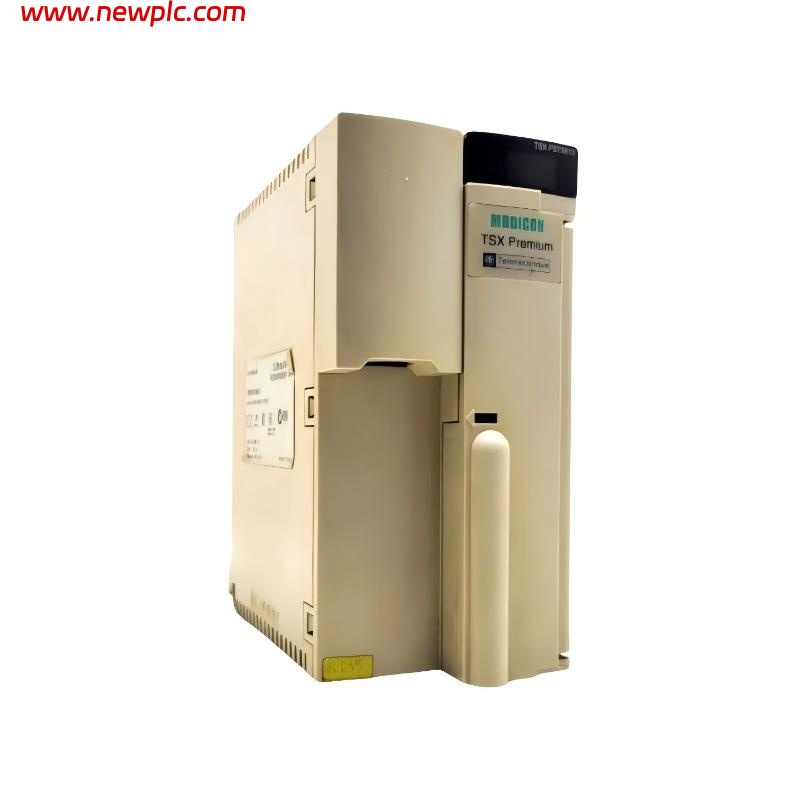

| Model | Schneider TSXPSY3610 |
| Product Type | Power Module for Modicon Premium PLC |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Output Voltage | 5 V DC and 24 V DC |
| Output Current | 5 V DC: 5 A; 24 V DC: 1.0 A |
| Total Power | 50 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –25 °C to +70 °C |
| Protection | Primary fuse; secondary overload, short‑circuit, overvoltage protection |
| Insulation | ≥100 MΩ primary/secondary and primary/ground |
| Format / Protection Class | Standard module format; IP20 |
| Dimensions | 95 x 180 x 260 mm |
| Weight | 0.62 kg |
FAQ
FAQ
Q1: What is the main purpose of the TSXPSY3610?
A1: It provides DC power for Modicon Premium PLCs, supplying 5 V and 24 V outputs for the processor and I/O modules.
Q2: What input voltage does it support?
A2: 100–240 V AC at 50/60 Hz.
Q3: What are the output voltages and currents?
A3: 5 V DC at 5 A; 24 V DC at 1.0 A.
Q4: What is the total power output?
A4: 50 W.
Q5: What protection features are included?
A5: Primary fuse, secondary overload, short‑circuit, and overvoltage protection.
Q6: What are the operating and storage temperature ranges?
A6: Operating: 0 °C to +60 °C; Storage: –25 °C to +70 °C.
Q7: What is the protection class of this module?
A7: IP20.
Q8: What are the physical dimensions and weight?
A8: Dimensions: 95 x 180 x 260 mm; Weight: 0.62 kg.
