Technical Specifications
| Item | Specification |
|---|---|

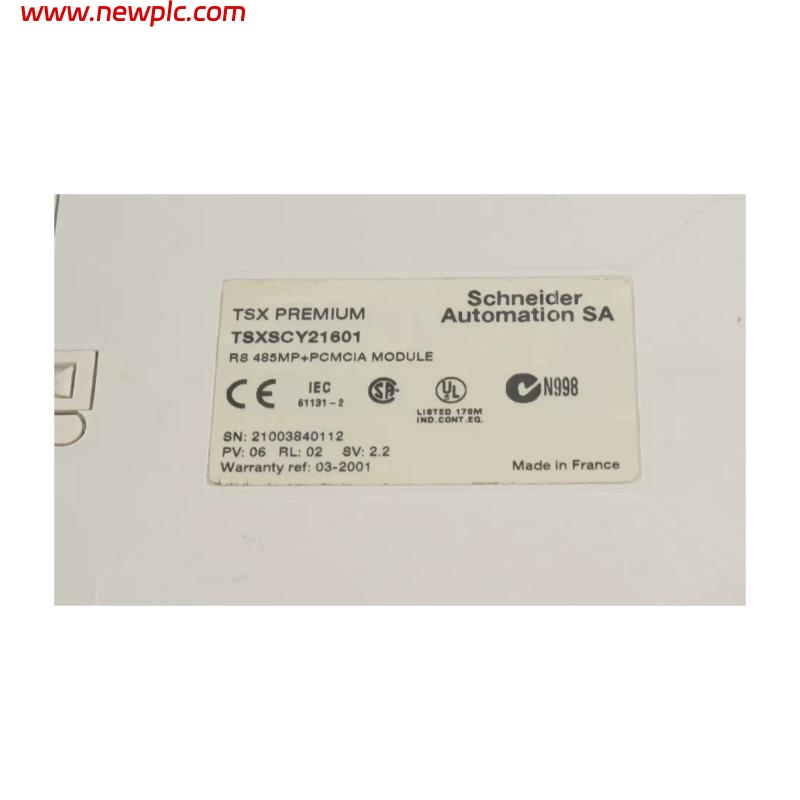

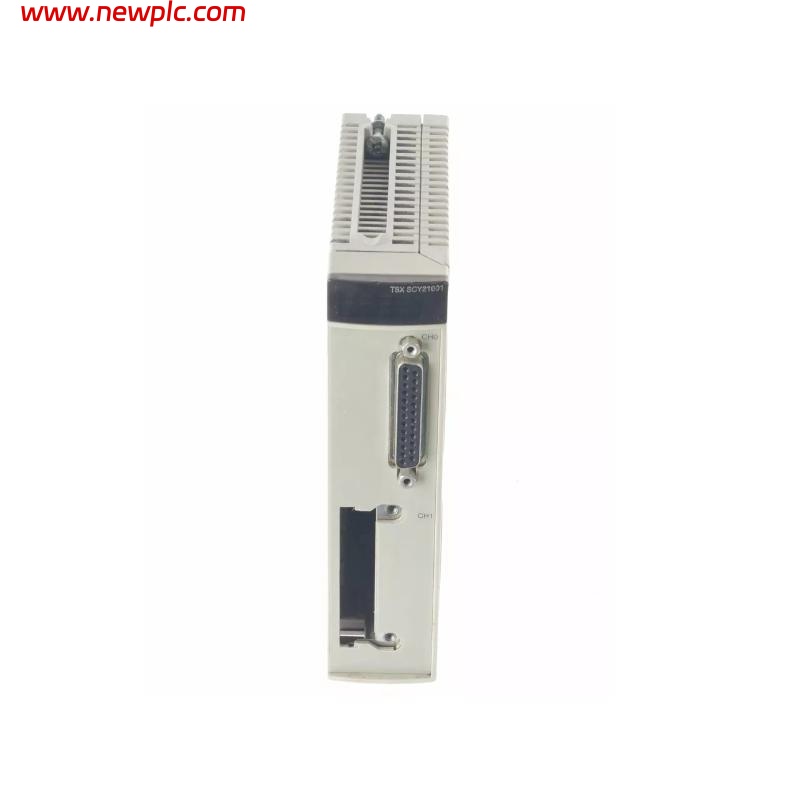

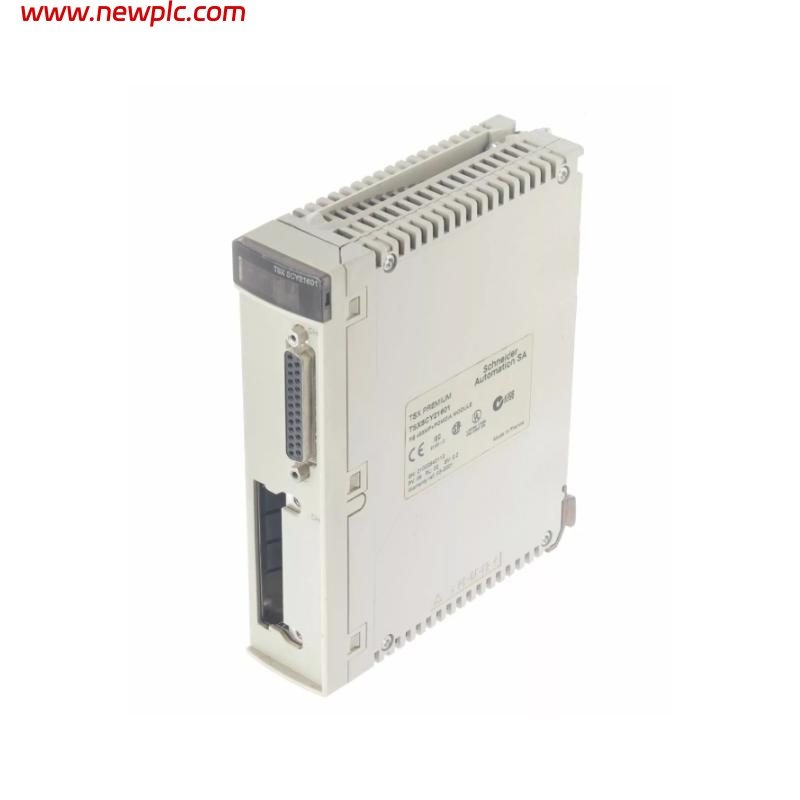

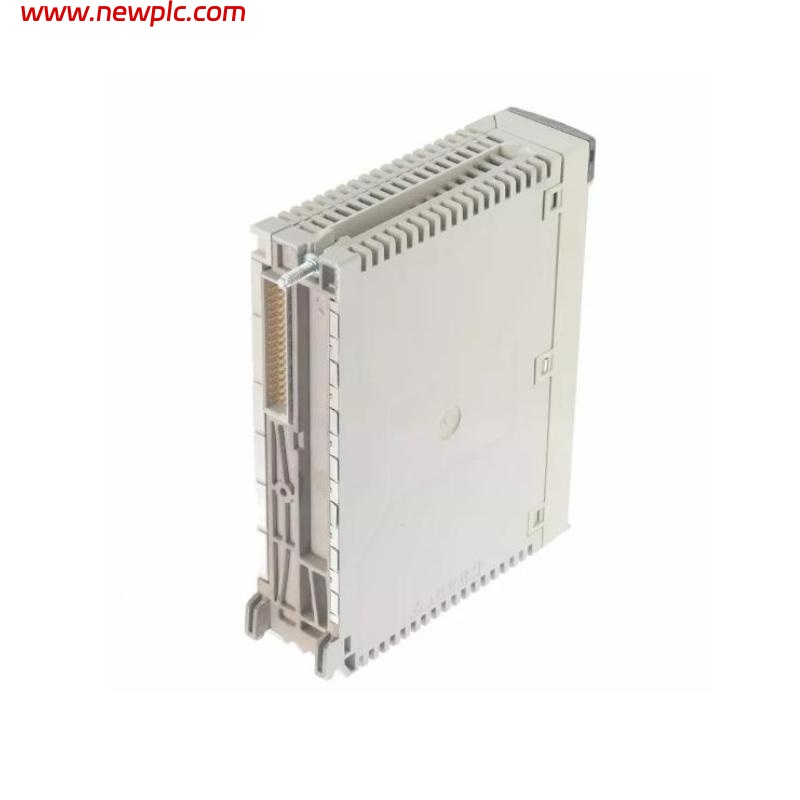

| Model | Schneider TSXSCY21601 |
| Product Type | Communication module for Modicon Premium PLC |
| Compatible Systems | Modicon Premium processors and co‑processors |
| Physical Interface | RS‑485 port |
| Supported Protocols | Modbus, Uni‑Telway, character-mode communications |
| Power Supply | 5 V DC, approx. 150 mA |
| Weight | 0.36 kg |
| Dimensions | Package dimensions: 55 × 180 × 260 mm |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –25 °C to +70 °C |
| Format | Plug-in module for Premium rack |
| Protection Class | IP20 |
FAQ
FAQ
Q1: What is the main function of the TSXSCY21601?
A1: It enables communication between Modicon Premium PLCs and field devices or other controllers, supporting RS‑485 based protocols such as Modbus and Uni‑Telway.
Q2: Which physical interface does it use?
A2: RS‑485 differential serial port.
Q3: Which communication protocols are supported?
A3: Supports Modbus, Uni‑Telway, and character-mode communication.
Q4: What are the power requirements?
A4: 5 V DC, approximately 150 mA.
Q5: In which systems can this module be used?
A5: Compatible with Modicon Premium processors and co‑processors.
Q6: What is the operating temperature range?
A6: 0 °C to +60 °C; storage: –25 °C to +70 °C.
Q7: What are the module dimensions and weight?
A7: Package dimensions: 55 × 180 × 260 mm; Weight is 0.36 kg.
Q8: What is the protection class?
A8: IP20, suitable for standard PLC rack environments.
