Technical Specifications
| Item | Description |
|---|---|

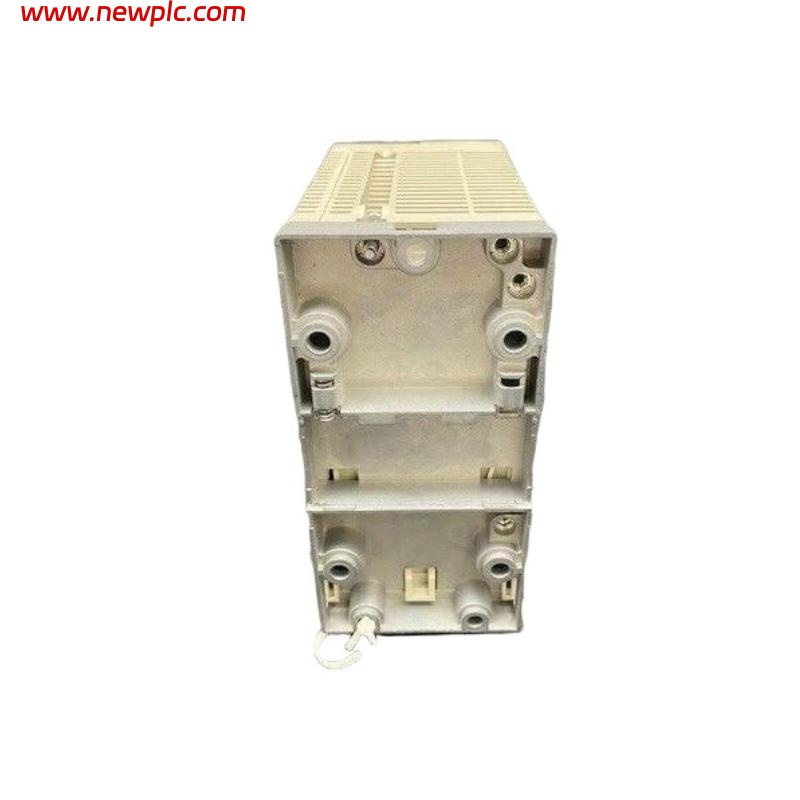

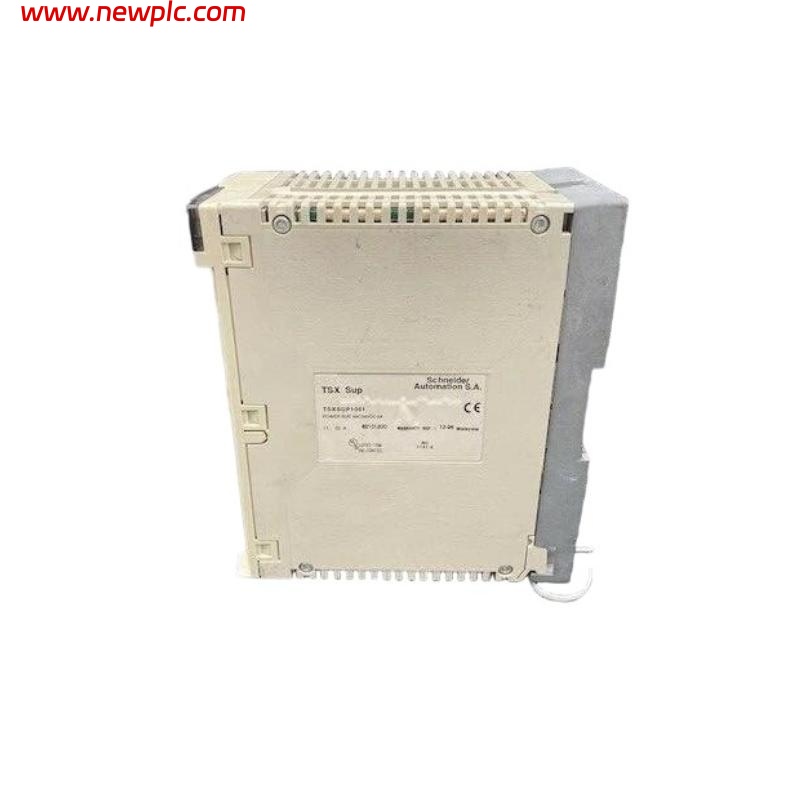

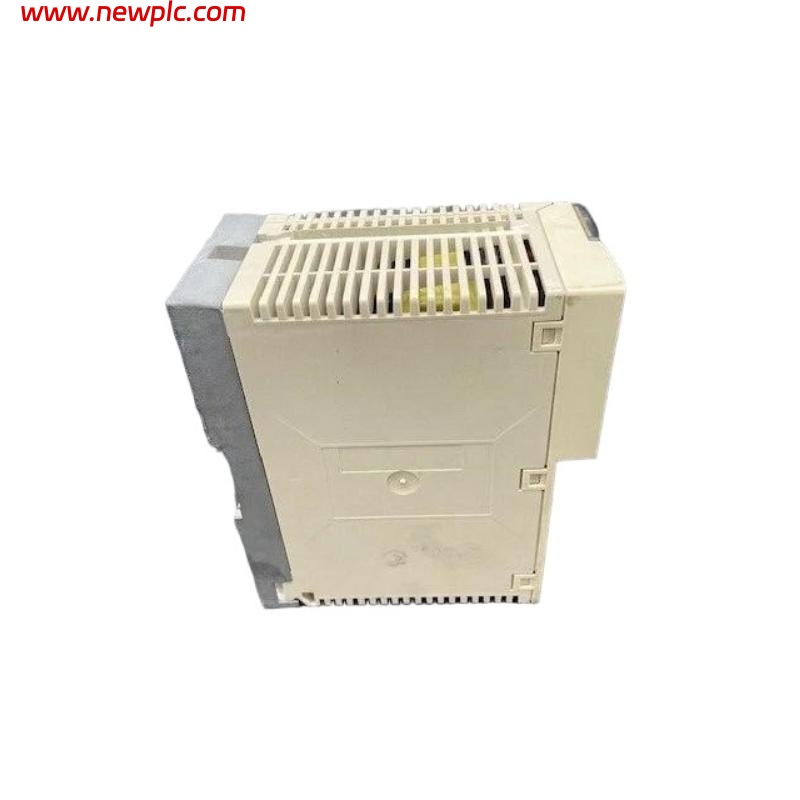

| Product Name | Schneider TSXSUP1051 Ethernet TCP/IP Module |
| Module Type | Ethernet TCP/IP Communication Module |
| Compatible System | Designed for Modicon Premium PLC series |
| Communication Protocol | Ethernet TCP/IP |
| Network Interface | RJ45 port (10/100 Mbps auto-sensing) |
| IP Address Configuration | Supports static IP and DHCP |
| Data Rate | 10/100 Mbps auto-negotiation |
| Data Transmission | Full-duplex/Half-duplex |
| Power Supply | 5 VDC (powered by PLC rack) |
| Power Consumption | Approx. 1.8 W |
| Mounting Method | Plug-in module for Premium PLC rack |
| Indicators | LINK, ACT, ERR status LEDs |
| Operating Temperature | 0 to +60°C (32 to 140°F) |
| Storage Temperature | -25 to +70°C (-13 to 158°F) |
| Humidity | Up to 95% non-condensing |
| Dimensions | Package dimensions: 60 × 180 × 260 mm |
| Weight | 0.34 kg |
FAQ
FAQ
Q1: What is the main function of the TSXSUP1051 module?
A1: It provides Ethernet TCP/IP communication for Modicon Premium PLCs, enabling high-speed data exchange with supervisory or network devices.
Q2: Which communication protocols are supported?
A2: It supports Ethernet TCP/IP and Modbus TCP communication.
Q3: What type of network interface does the module use?
A3: It features a standard RJ45 interface supporting 10/100 Mbps auto-negotiation.
Q4: How is the IP address configured?
A4: The IP address can be set manually (static) or automatically via DHCP.
Q5: How is the module installed?
A5: Simply plug the module into the designated communication slot of the Modicon Premium PLC rack.
Q6: Does the module support remote diagnostics?
A6: Yes, remote monitoring and configuration are supported via web interface or Schneider software tools.
Q7: What are the environmental requirements for operation?
A7: Operating temperature is 0 to +60°C with up to 95% non-condensing humidity.
Q8: What are the module’s dimensions and weight?
A8: Package dimensions: 60 × 180 × 260 mm, and weight is 0.34 kg.
