Technical Specifications
| Parameter | Description |
|---|---|

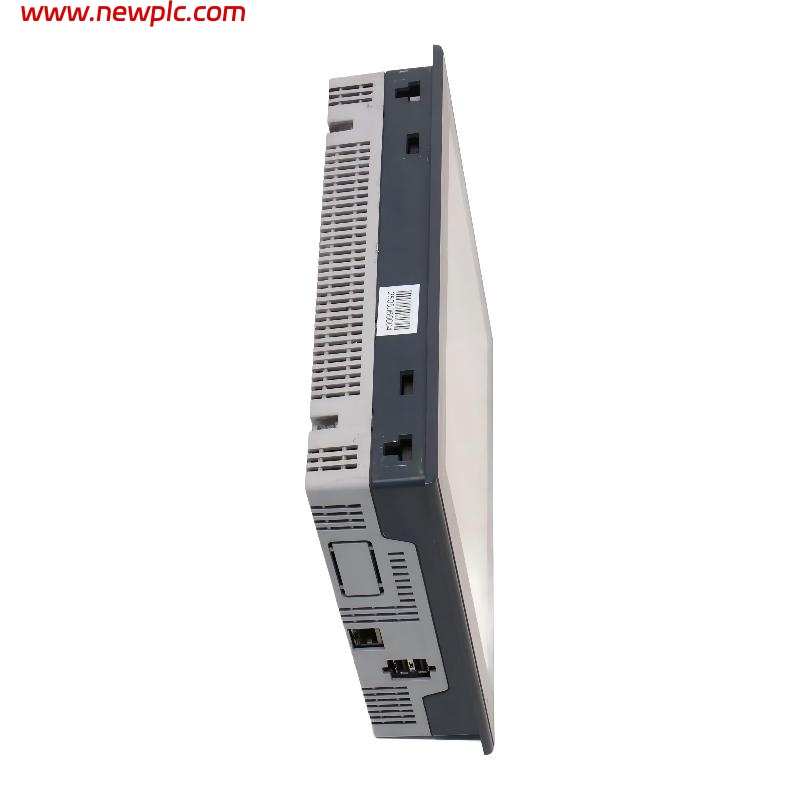

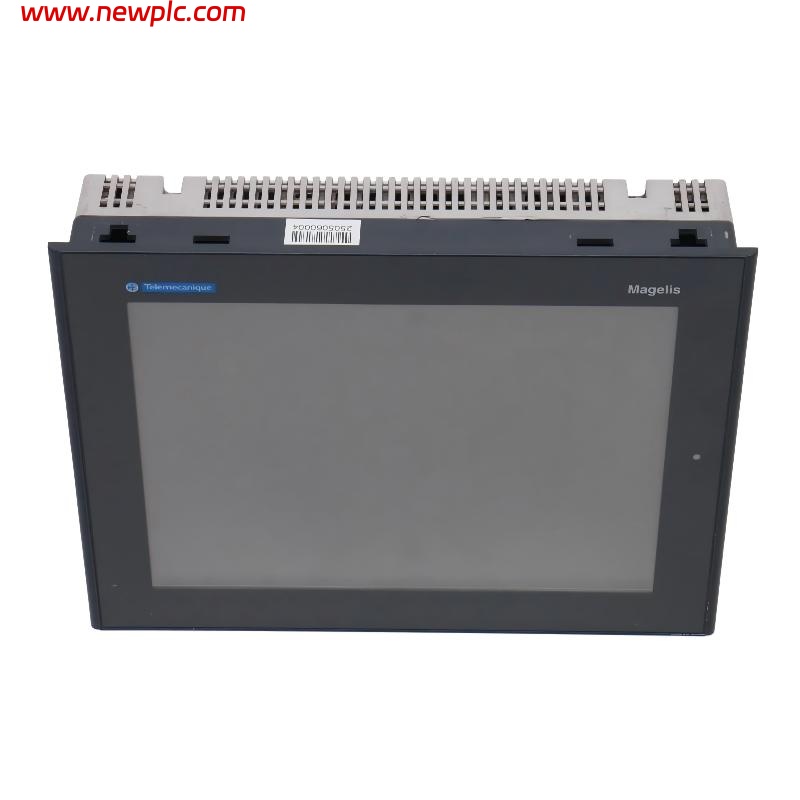

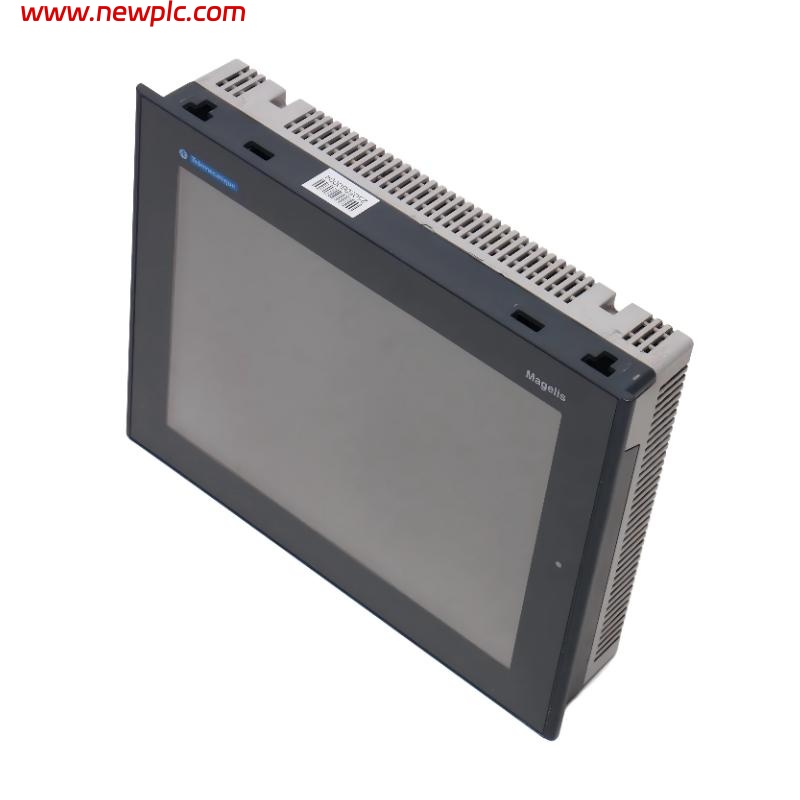

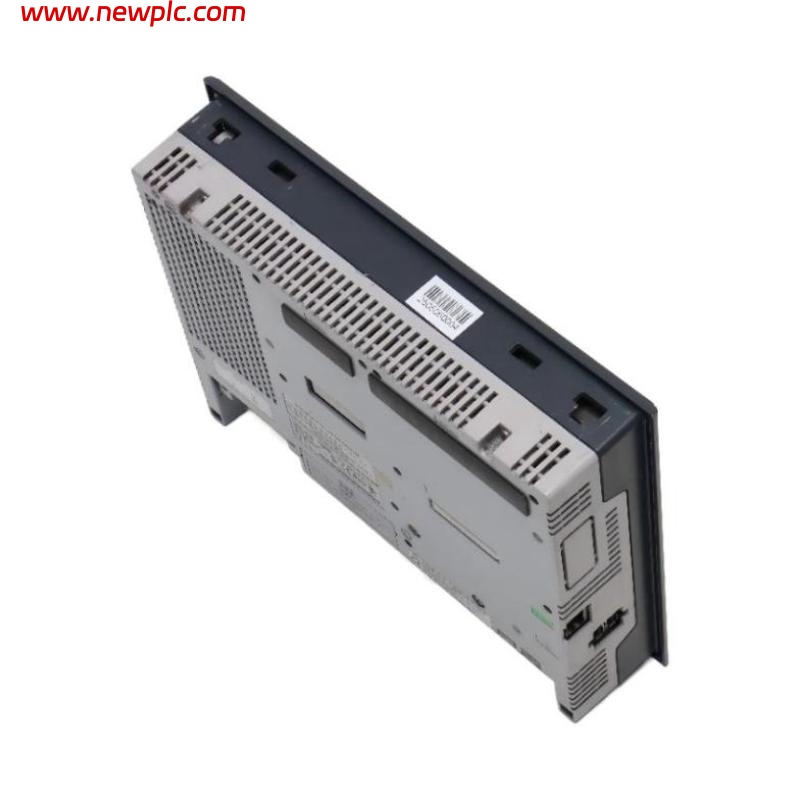

| Model | XBTGT5330 |
| Type | Advanced Touchscreen Panel (HMI) |
| Display Type | TFT color LCD |
| Display Size | 10.7 inches |
| Resolution | 640 × 480 pixels (VGA) |
| Colors | 65,536 colors |
| Touch Type | Resistive touchscreen |
| CPU | 266 MHz RISC CPU |
| Memory | 32 MB Flash + 512 kB SRAM with battery backup |
| Power Supply | 24 V DC (range 19.2 – 28.8 V) |
| Power Consumption | Approx. 30 W |
| Backlight Life | Approx. 54,000 hours |
| Interfaces / Communication | USB ×2, Ethernet, Serial COM1/COM2, digital I/O, audio output, etc. |
| Touch Resolution | 1024 × 1024 |
| Dimensions | 270.5 x 212.5 x 57 mm |
| Weight | 2.5 kg |
FAQ
FAQ
Q1: What is the main purpose of XBTGT5330?
A1: Serves as an HMI panel for industrial automation systems to display process data, input control commands, view alarms and trends, and enable equipment monitoring and operation.
Q2: What are the display specifications?
A2: 10.7 inch TFT color display, 640×480 pixels (VGA), 65,536 colors.
Q3: What is the power requirement?
A3: 24 V DC, allowable range 19.2 – 28.8 V, power consumption approx. 30 W.
Q4: Which communication interfaces are supported?
A4: USB ×2, Ethernet, Serial COM1/COM2, digital I/O, audio output, etc.
Q5: What type of touchscreen and resolution does it have?
A5: Resistive touchscreen, touch resolution 1024 × 1024, suitable for menu, button, and graphical control operations.
Q6: How is it mounted and what is the protection rating?
A6: Flush panel mounting; front panel IP65, rear panel IP20.
Q7: What are the environmental conditions?
A7: Operating temperature 0°C – 50°C, storage –20°C – 60°C, normal humidity.
Q8: What are the typical applications?
A8: Industrial automation HMI, including production line monitoring, machine operation, alarm/trend display, data acquisition and visualization.
