Technical Specifications
| Parameter | Value |
|---|---|

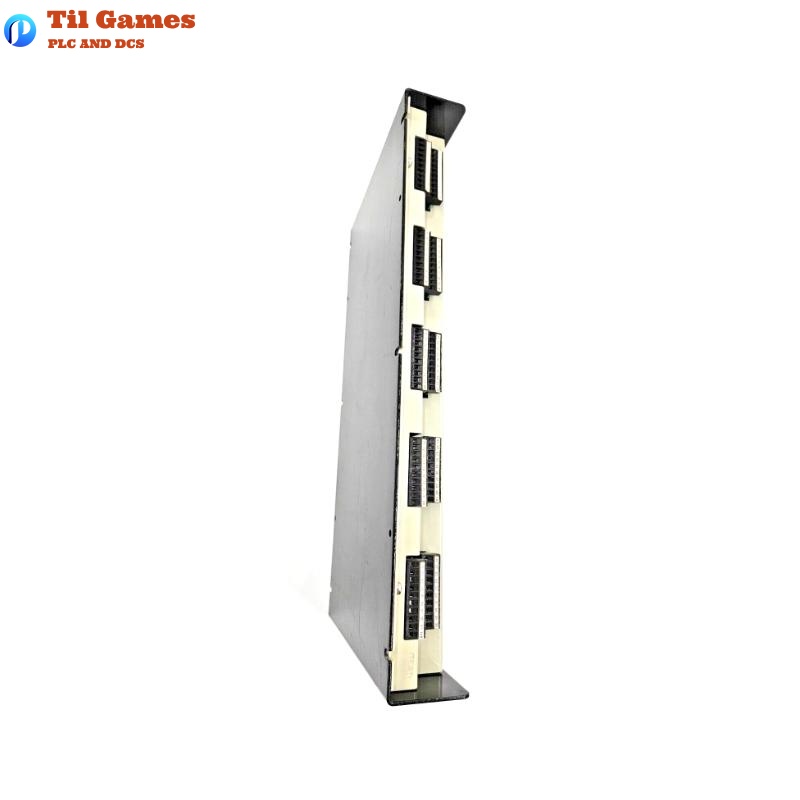

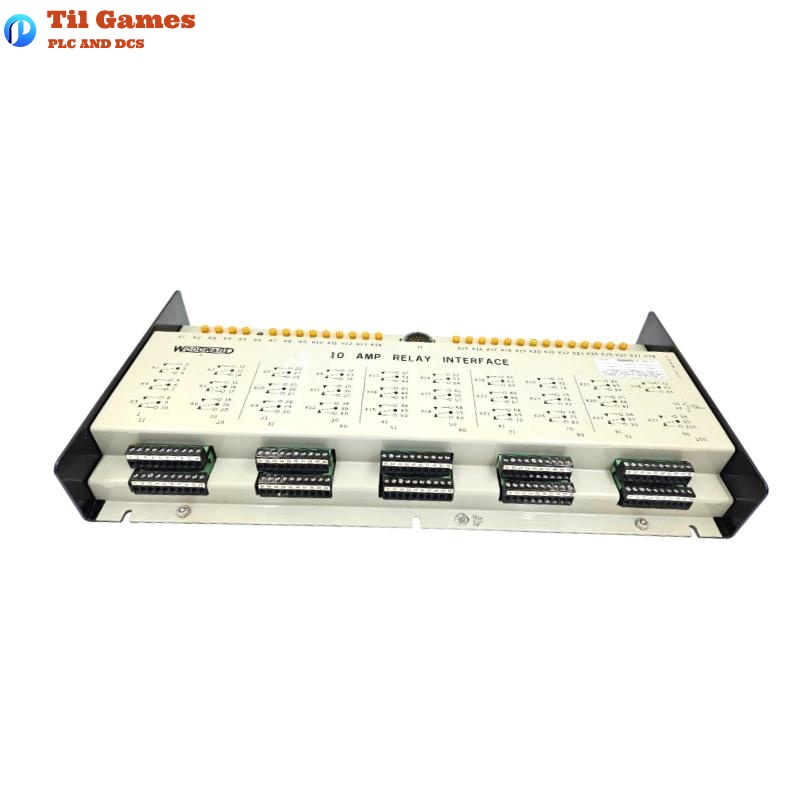

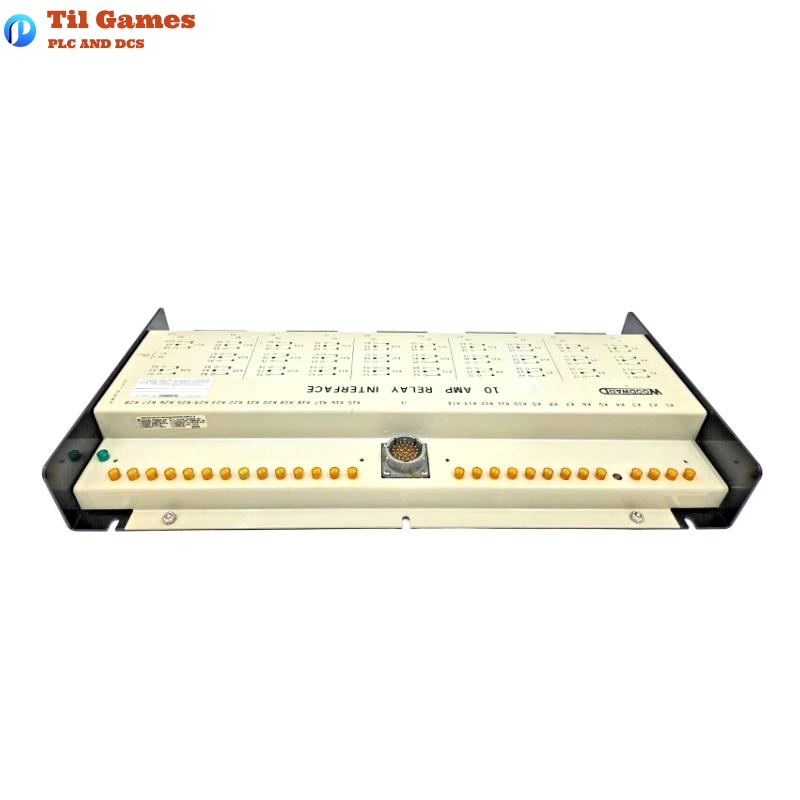

| Product Name | Woodward 5441-645 Relay Interface Module |
| Product Type | Interface Module |
| Application | Relay output interface for control systems |
| Input Type | Digital signal input (dry contact) |
| Output Type | Multiple relay outputs |
| Operating Voltage | 24 VDC |
| Current Consumption | Max. 200 mA |
| Number of Channels | 8 channels |
| Mounting Method | DIN rail mounting |
| Wiring Method | Pluggable terminals |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Enclosure Material | Industrial-grade plastic |
| Insulation Voltage | 500 V AC |
| Dimensions | 130 × 90 × 40 mm |
| Weight | 0.32 kg |
FAQ
FAQ
Q1: How many output channels does the Woodward 5441-645 module support?
A1: It supports 8 relay output channels for multi-point control.
Q2: What type of input signals are supported by this module?
A2: It supports digital inputs such as dry contact signals.
Q3: What is the operating voltage of the module?
A3: The module operates at 24 VDC.
Q4: What is the installation method of the module?
A4: It uses standard DIN rail mounting for easy integration into control panels.
Q5: What is the operating temperature range?
A5: The module operates within a temperature range of -20°C to +70°C.
Q6: What kind of wiring terminals does it use?
A6: It uses pluggable terminals for convenient installation and maintenance.
Q7: Does the module have insulation protection?
A7: Yes, it features 500 V AC insulation for enhanced safety.
Q8: What are the typical application scenarios for this module?
A8: It is commonly used in industrial automation, power control systems, and process control environments to interface control systems with actuators.
