Technical Specifications
| Item | Description |
|---|---|

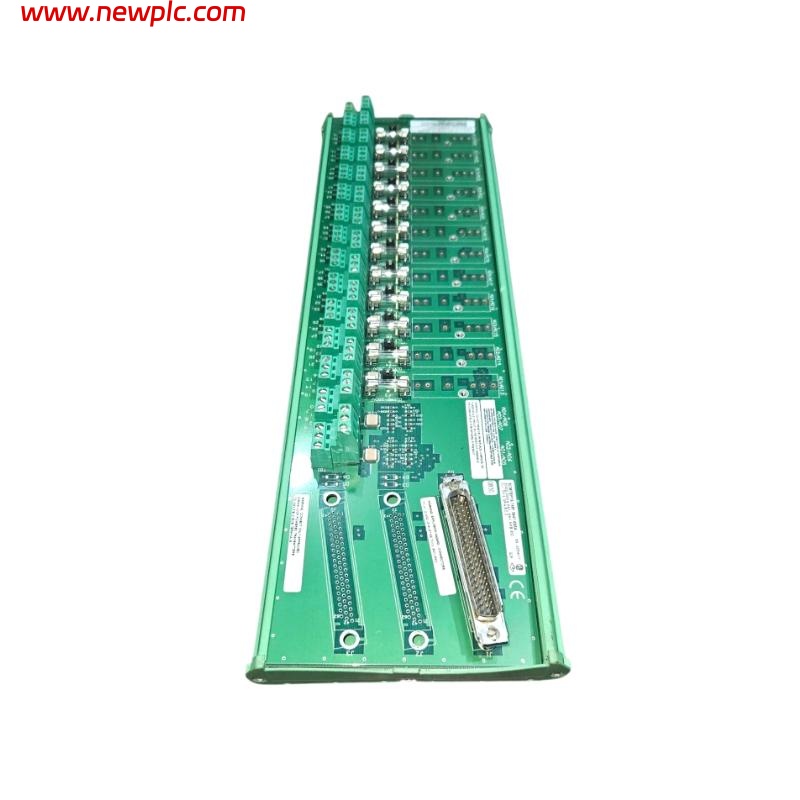

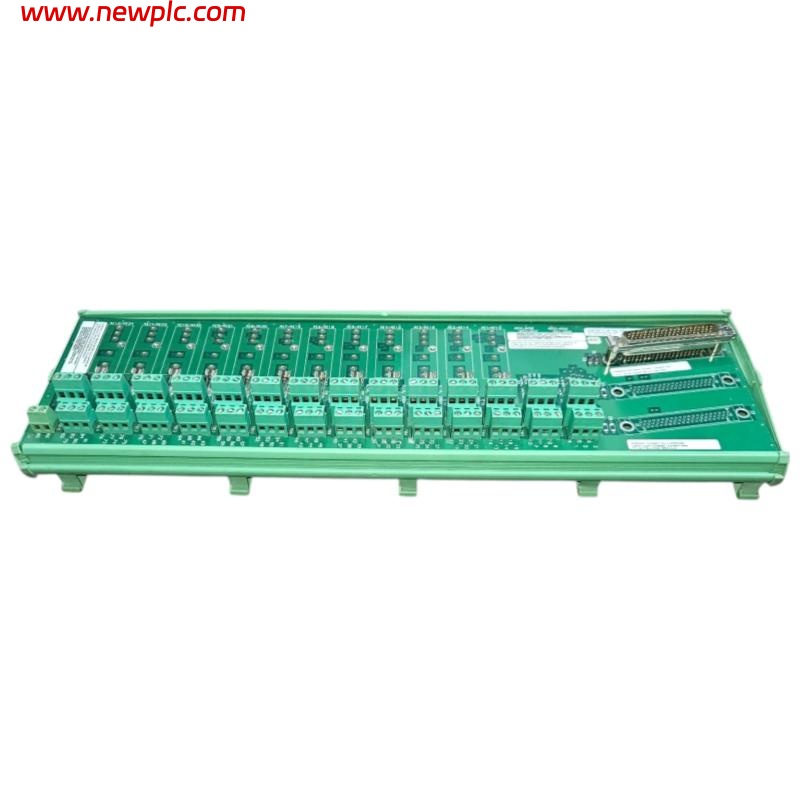

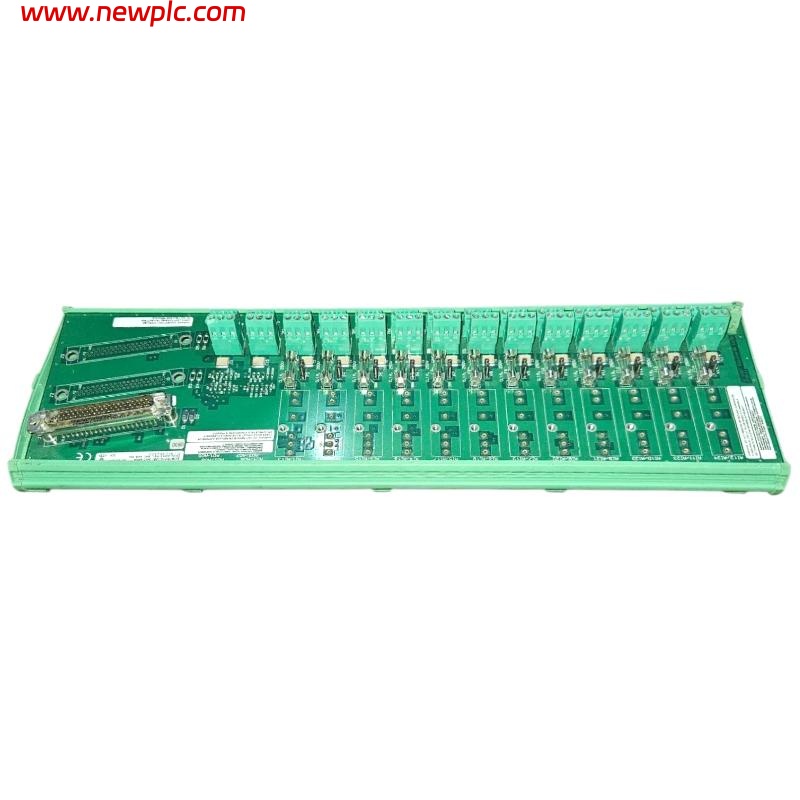

| Product Model | Woodward 5441-695 |
| Type | DataForth FTM Module |
| Function | Provides conditioned analog and digital signal handling for turbine and engine control systems |
| Signal Inputs | Supports standard process signals including voltage, current, and frequency inputs |
| Signal Outputs | Delivers conditioned analog and digital outputs for control loops and monitoring feedback |
| Processing | Performs real-time filtering, scaling, conversion, and signal normalization |
| Isolation | Galvanic isolation between channels and system electronics to prevent noise interference |
| Diagnostics | Onboard monitoring for module status, signal quality, and error conditions |
| Interface | Integrates with Woodward control systems through DataForth field terminal architecture |
| Operating Method | Continuous data acquisition and conditioning for closed-loop and supervisory control |
| Applications | Used in turbine control, engine management, industrial monitoring, and data acquisition |
| Cooling | Passive cooling supported by system airflow |
| Dimensions | 120 × 180 × 40 mm |
| Weight | 0.38 kg |
FAQ
FAQ
Q1: What is the main role of the Woodward 5441-695 module?
A1: It handles analog and digital field signals by conditioning and forwarding them to the control system.
Q2: What types of signals can the module receive?
A2: It supports voltage, current, and frequency inputs commonly found in industrial measurement applications.
Q3: What outputs does the module provide?
A3: It delivers conditioned analog and digital signals for use in feedback and control functions.
Q4: Does the module offer electrical isolation?
A4: Yes, it provides galvanic isolation to protect the control system from electrical interference and transients.
Q5: What signal processing functions are performed internally?
A5: The module performs filtering, scaling, and conversion to ensure clean and accurate signal delivery.
Q6: Are diagnostic capabilities included?
A6: Yes, it monitors system health, input quality, and internal error states.
Q7: How is the 5441-695 integrated into a Woodward control system?
A7: It connects directly into the DataForth field terminal structure for seamless communication with controllers.
Q8: What typical applications rely on this module?
A8: It is widely used in turbine control systems, engine control, industrial monitoring, and data acquisition environments.
