Technical Specifications
| Parameter | Description |
|---|---|

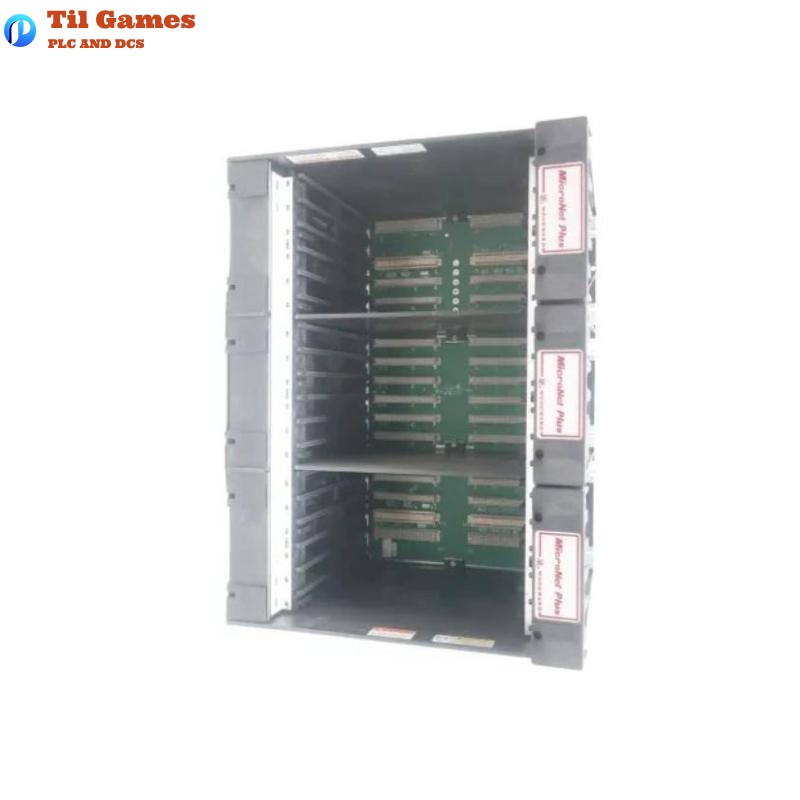

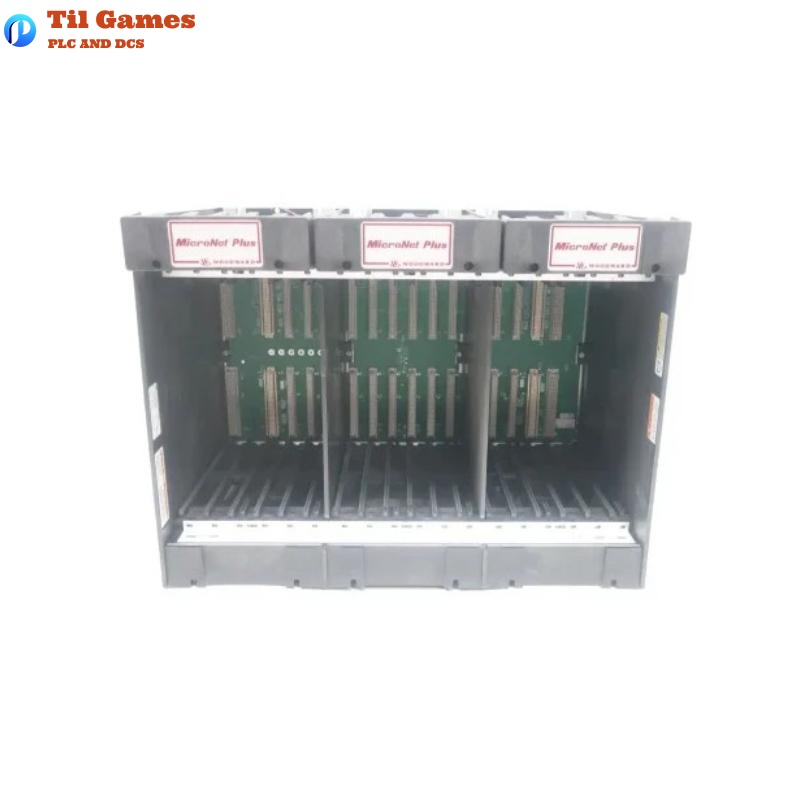

| Product Name | Woodward 5453-759 MicroNet-Plus 14-Slot Chassis |
| Chassis Type | 14-Slot Rack Mount Modular Backplane |
| Power Supply Support | Supports multiple power supply modules for redundancy |
| CPU Module Support | Supports MicroNet Plus CPU modules |
| Module Types Supported | Actuator modules, I/O modules, specialty modules, communication modules |
| Mounting | Standard 19″ rack-mountable |
| Backplane Interface | VME-based high-speed communication |
| Slot Count | 14 total module slots |
| Redundancy | Supports redundant CPU, power supplies, and communication modules |
| Environmental Standards | CE, UL (Class I, Div 2), ATEX Zone 2 |
| EMC Compliance | EN61000-6-2 (Immunity), EN61000-6-4 (Emissions) |
| Shock & Vibration | MIL-STD-810, MIL-STD-167 |
| Operating Temperature | –40 to +55 °C |
| Field Wiring | Shielded, supports terminal blocks and FTMs |
| Dimensions | 160 x 160 x 120 mm |
| Weight | 1.36 kg |
FAQ
FAQ
Q1: Does the product support hot swapping of modules?
A1: Yes, the Woodward 5453-759 chassis supports hot-swapping, but electrostatic precautions should be followed.
Q2: What types of modules can be installed in the 5453-759 chassis?
A2: It supports various types including CPU modules, actuator drivers, analog/discrete I/O, communication, and specialty modules.
Q3: Is redundancy supported in this chassis?
A3: Yes, it supports redundancy for CPU, power supplies, and communication modules for high reliability.
Q4: Can it be used in hazardous environments?
A4: Yes, the product is compliant with ATEX Zone 2 and UL Class I, Division 2 for explosive environments.
Q5: What communication bus standard is used?
A5: The chassis uses a VME-based high-speed communication backplane.
Q6: How is the 5453-759 chassis installed?
A6: It is rack-mounted in a standard 19-inch cabinet. Modules are inserted via guide rails and secured with screws.
Q7: Does the chassis include a power module?
A7: No, the 5453-759 refers to the chassis only. Power modules must be purchased separately.
Q8: How can a faulty module be identified?
A8: Each module includes a fault LED. A solid red indicates lost communication with CPU, while flashing red indicates internal fault.
