Technical Specifications
| Parameter | Specification |
|---|---|

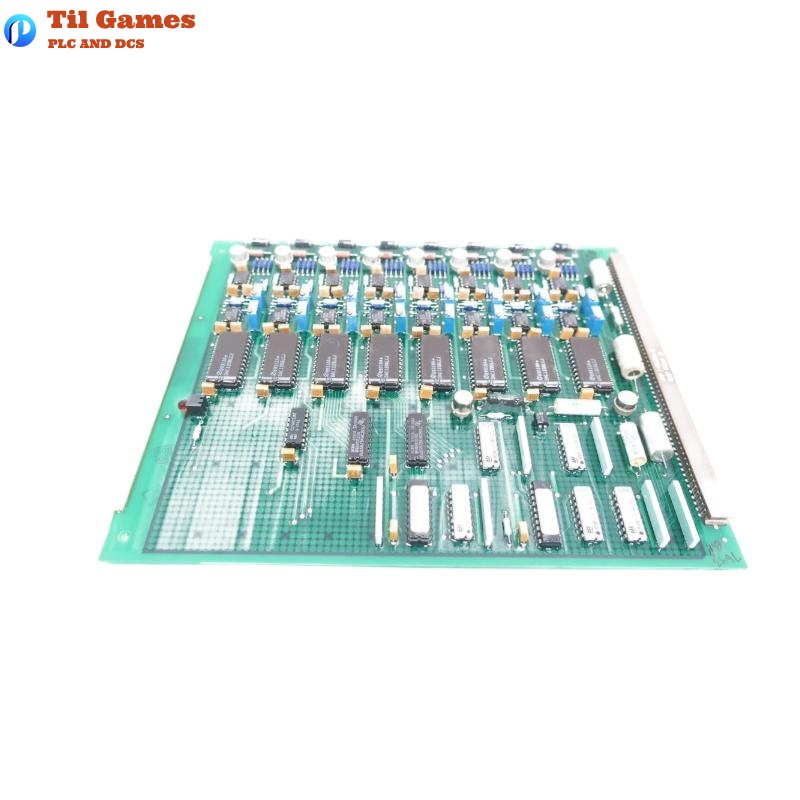

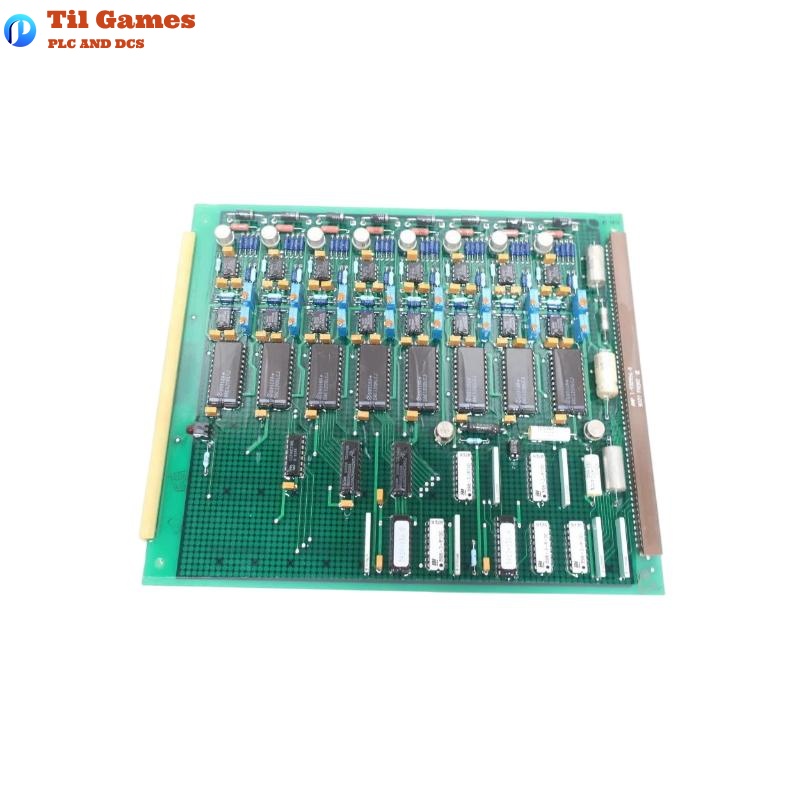

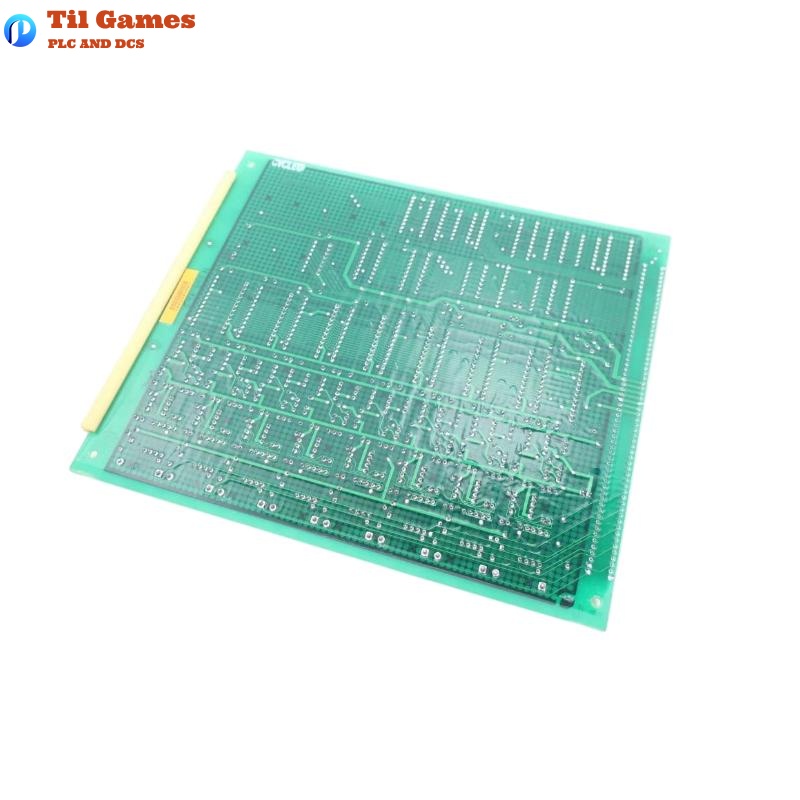

| Product Type | Analog Output Module |
| Manufacturer | Woodward |
| Part Number | 5461-644 |
| Output Type | Analog |
| Typical Output Range | 0–20 mA / 4–20 mA (field configurable) |
| Channels | Multiple output channels |
| Compatible Systems | Woodward 723, 505, MicroNet, NetCon |
| Mounting | Chassis mount |
| Dimensions | 203 x 25 x 229 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the primary function of this module?
A1: The Woodward 5461-644 is an analog output module used for controlling actuators or other analog devices.
Q2: What output current range does it support?
A2: It supports 0–20 mA and 4–20 mA outputs, configurable depending on application requirements.
Q3: Which Woodward systems is it compatible with?
A3: This module is compatible with Woodward control platforms such as 723, 505, MicroNet, and NetCon.
Q4: Does this module support hot-swapping?
A4: No, the module does not support hot-swapping. Power must be turned off before insertion or removal.
Q5: How is the module mounted?
A5: It uses a chassis slot mounting design, making installation and replacement straightforward.
Q6: Does it include protection against short circuits or overloads?
A6: Yes, it includes basic output protection features to prevent system damage from overcurrent.
Q7: Is calibration required?
A7: It is factory-calibrated, but periodic calibration is recommended for precision applications.
Q8: Under what environmental conditions can it operate reliably?
A8: It operates reliably under industrial standard conditions, recommended temperature is 0–60°C with relative humidity below 95% non-condensing.
