Technical Specifications
| Parameter | Value |
|---|---|

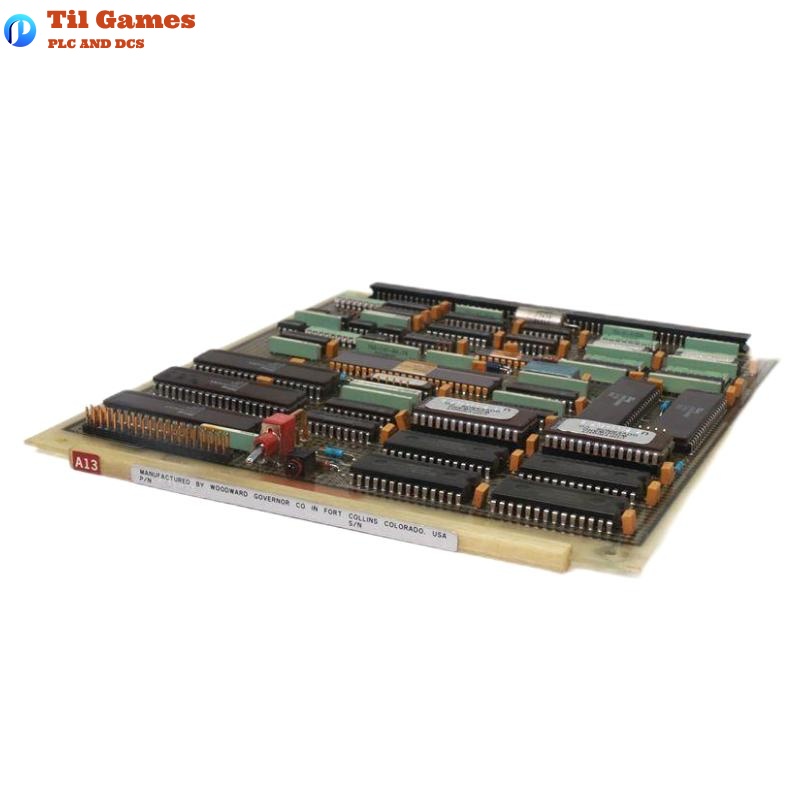

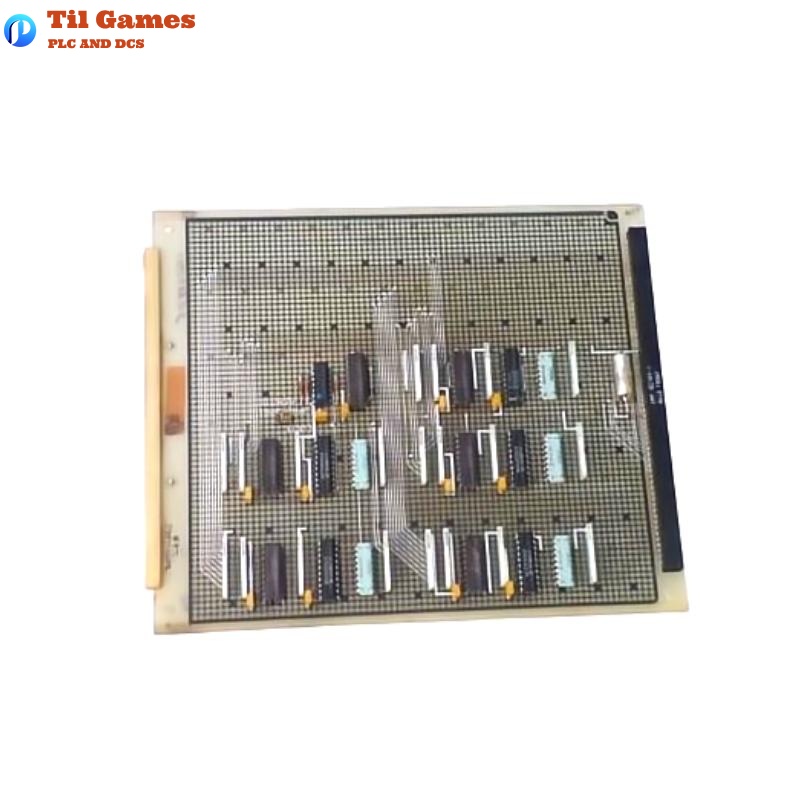

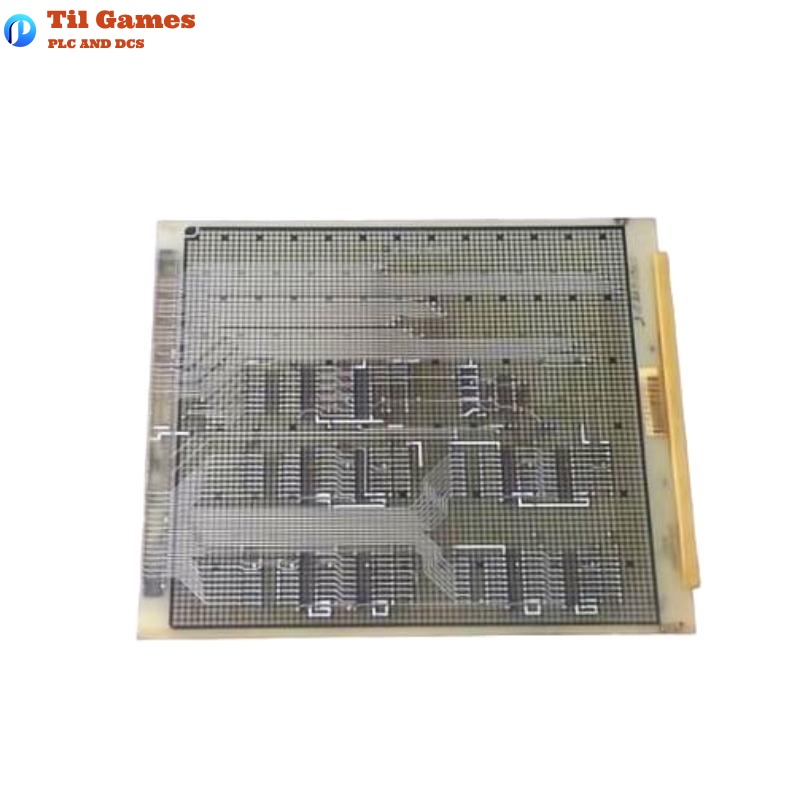

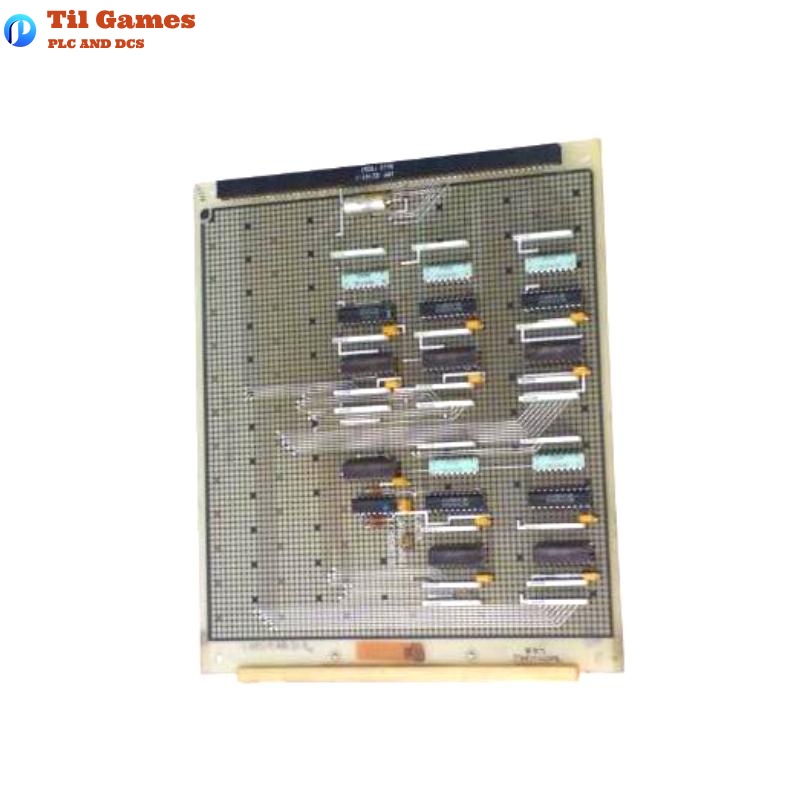

| Product Name | 5461-650 T/C Input Board |
| Manufacturer | Woodward |
| Supported Thermocouple Types | Type J and Type K |
| Cold Junction Compensation | AD592 sensor for ambient compensation |
| Input Channels | Multiplexed to voltage-to-frequency converter |
| Communication Interface | Transceiver to LINKnet controller |
| Input Alarm Feature | Input deviation alarms without channel exclusion |
| Fail Mode Selection | Jumper-selectable fail high or fail low |
| Terminal Wiring | Terminals 16–19 for control, 20–21 actuator, 22 shield |
| Speed Trim Feature | Supports external speed trim potentiometer (terminals 23–24) |
| Speed Adjustment Range | ±5% with 100Ω potentiometer |
| Power Input | +5 VDC logic power |
| Dimensions | 40 × 250 × 210 mm |
| Weight | 1.25 kg |
| Mounting Method | Plug-in module within control unit |
| Product Status | Discontinued by manufacturer |
FAQ
FAQ
Q1: What types of thermocouples are supported by the 5461-650 module?
A1: The module supports both Type J and Type K thermocouples, selectable via the application.
Q2: How is cold junction compensation handled?
A2: It uses an on-board AD592 temperature sensor to measure ambient temperature, with compensation performed in software.
Q3: What happens if a thermocouple input becomes open?
A3: The module can be configured to fail high or fail low using jumpers to maintain a known input state.
Q4: Does the module feature input deviation alarms?
A4: Yes, an alarm is raised if any input deviates beyond the “Max Deviation” threshold, typically 1% of the input range.
Q5: How does the module communicate with the control network?
A5: It transmits data through a transceiver to the LINKnet controller module.
Q6: Is remote speed trim adjustment supported?
A6: Yes, it supports a remote potentiometer (recommended 100Ω) to adjust speed within ±5%.
Q7: Are there wiring precautions for the shielded cables?
A7: Yes, the shield must be connected only to terminal 22 and must be continuous and isolated from all conductive surfaces.
Q8: Is the 5461-650 module still in production?
A8: Contact Us.
