Technical Specifications
| Parameter | Description |
|---|---|

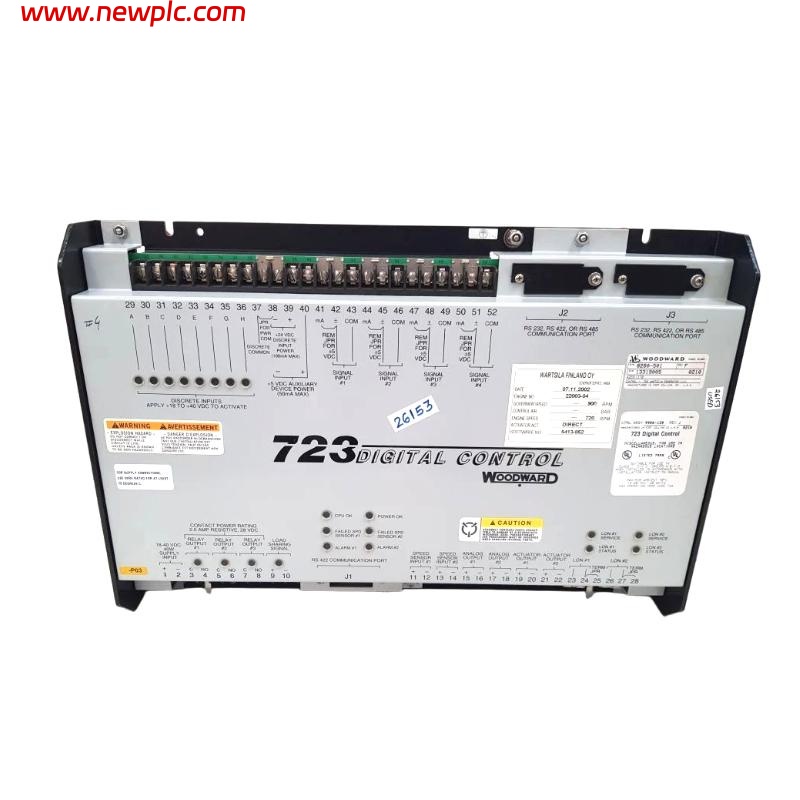

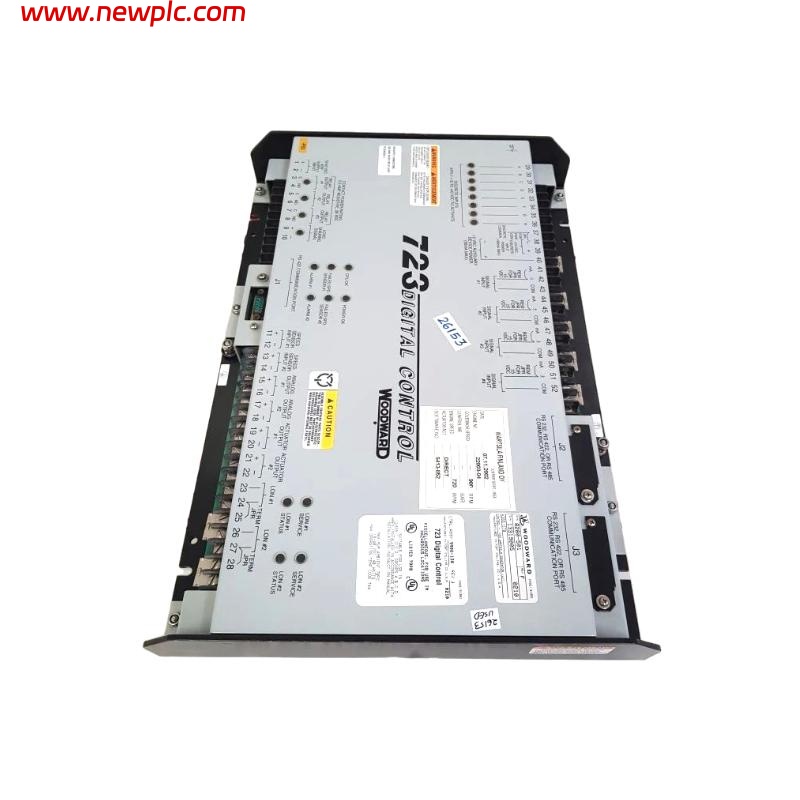

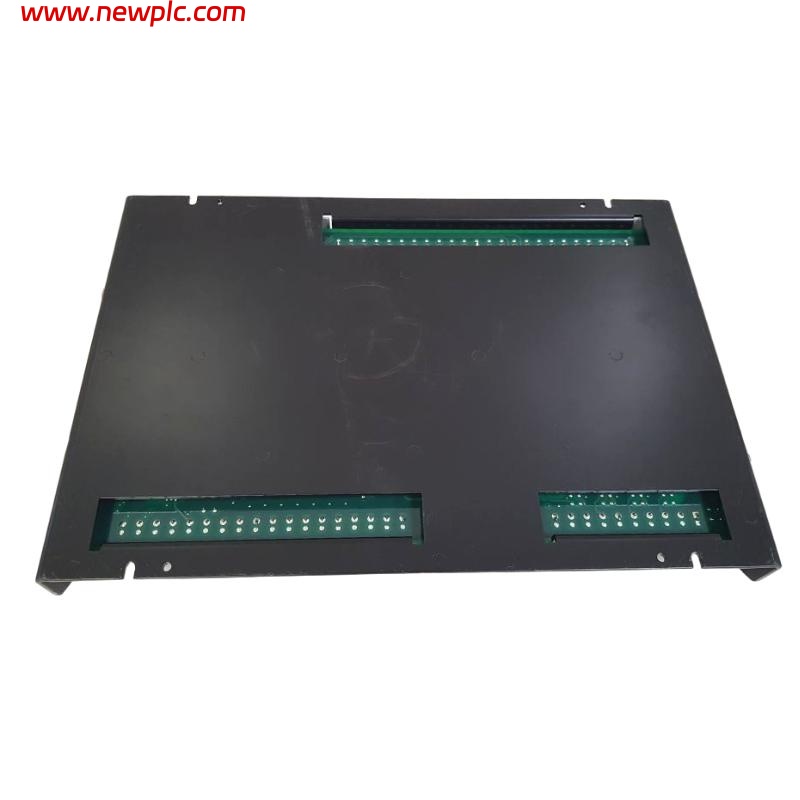

| Product Model | Woodward 8280-501 Digital Control Module |
| Control Type | Digital Speed and Load Control for prime movers |
| Input Signals | – Magnetic pickup input – 4–20 mA configurable process inputs – Discrete logic-level inputs |
| Output Signals | – Relay outputs for shutdown and alarm – 4–20 mA analog control outputs |
| Communication | RS-232/RS-485 serial interface |
| Power Supply | 18–40 VDC nominal operating range |
| Processing | High-stability digital control algorithm with configurable logic |
| Operating Temperature | –40°C to +70°C (typical module rating) |
| Vibration Resistance | Designed for industrial and engine-mounted environments |
| Mounting | Panel-mounted enclosure |
| Dimensions | 50 × 150 × 120 mm |
| Weight | 0.6 kg |
FAQ
FAQ
Q1: What types of prime movers can the 8280-501 control?
A1: It supports gas, diesel, and dual-fuel engines, as well as small turbines requiring digital speed and load regulation.
Q2: Does the module support redundant speed sensing inputs?
A2: Yes, it can accept magnetic pickup inputs and can be configured for redundant sensing to increase system reliability.
Q3: Can the 8280-501 participate in load sharing?
A3: Yes, it supports isochronous load sharing with compatible Woodward controllers.
Q4: What communication interfaces are available?
A4: The module provides RS-232 and RS-485 ports for integration with PLCs, SCADA, or monitoring systems.
Q5: How does the module manage alarm and shutdown conditions?
A5: It uses programmable relay outputs that respond to defined fault or protection logic.
Q6: Is online configuration supported?
A6: Most parameters can be adjusted through configuration software while the controller remains connected, depending on safety requirements.
Q7: What analog outputs does the controller provide?
A7: It offers 4–20 mA outputs for actuators, valves, or monitoring devices.
Q8: How does the module maintain performance in harsh environments?
A8: The design incorporates reinforced mechanical structure and industrial-grade components to withstand vibration and temperature variations.
