Technical Specifications
| Item | Specification |
|---|---|

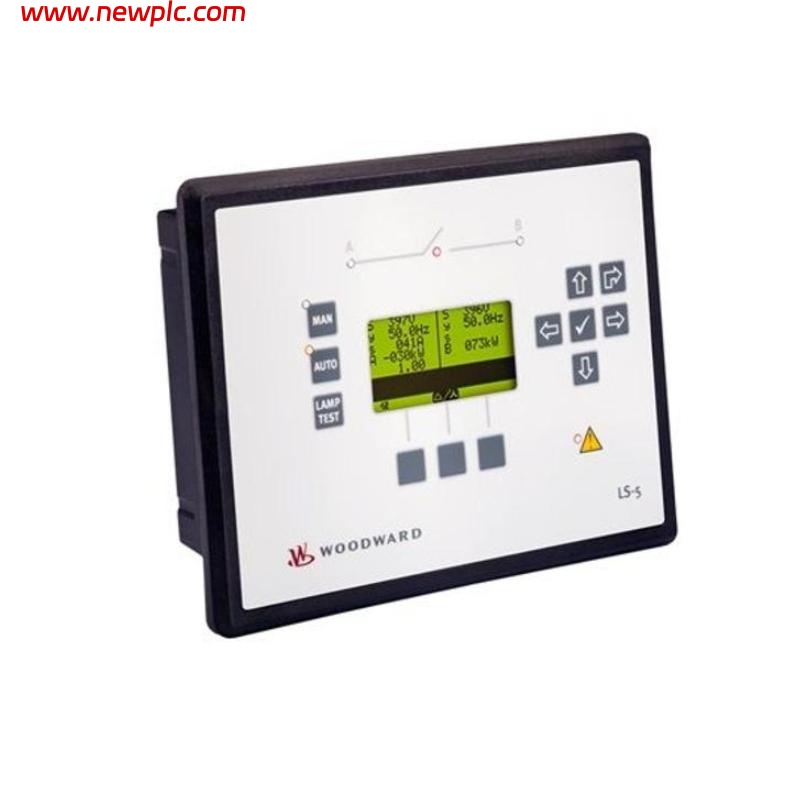

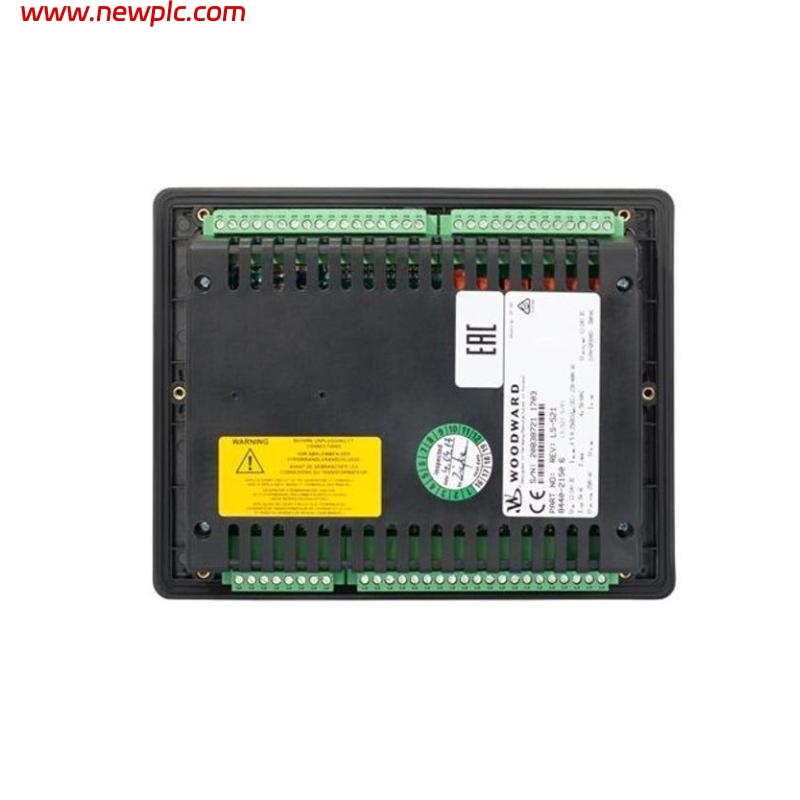

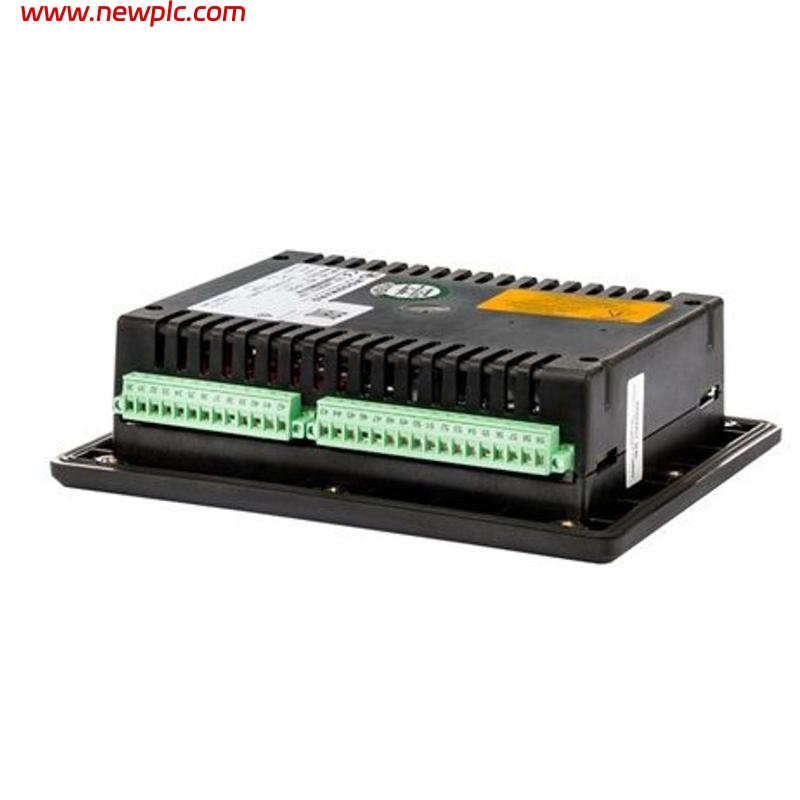

| Product Model | Woodward 8440-2150A |
| Product Type | Controller |
| Control Functions | Breaker synchronization, load sharing, bus switching, fault protection |
| Output Channels | Single or multiple breaker control (depending on version) |
| Input Channels | Voltage, frequency, and phase measurement inputs |
| Auto/Manual Mode | Supports both automatic and manual mode |
| Communication Interface | CAN bus, optional RS-485 / Ethernet depending on version |
| Alarm/Protection Functions | Phase shift protection, frequency change protection (df/dt), bus abnormal detection, relay fault detection |
| Power Supply | 24 VDC |
| Indicators | Power and breaker status LEDs |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Panel mount or backplane mount |
| System Compatibility | Woodward easYgen series and LS-5 controller network |
| Dimensions | 240 × 172 × 65 mm |
| Weight | 1.5 kg |
FAQ
FAQ
Q1: What is the main function of the 8440-2150A controller?
A1: It controls circuit breakers on a grid or generator bus to provide synchronization, load sharing, bus switching, and fault protection.
Q2: How many breaker outputs does it support?
A2: It supports single or multiple breaker outputs depending on the version.
Q3: How does it achieve load sharing?
A3: The controller measures voltage, frequency, and phase to synchronize units and distribute load.
Q4: What communication interfaces are supported?
A4: CAN bus is supported, with some versions supporting RS-485 or Ethernet.
Q5: What protection functions does the controller provide?
A5: Phase shift protection, frequency change (df/dt) protection, bus abnormal detection, and relay fault detection.
Q6: Does it support auto and manual modes?
A6: Yes, it can operate in automatic or manual mode.
Q7: Which systems is it compatible with?
A7: Compatible with Woodward easYgen series and LS-5 controller networks.
Q8: What are the controller’s dimensions and weight?
A8: Dimensions are 240 × 172 × 65 mm, and weight is 1.5 kg.
