Technical Specifications
| Parameter | Description |
|---|---|

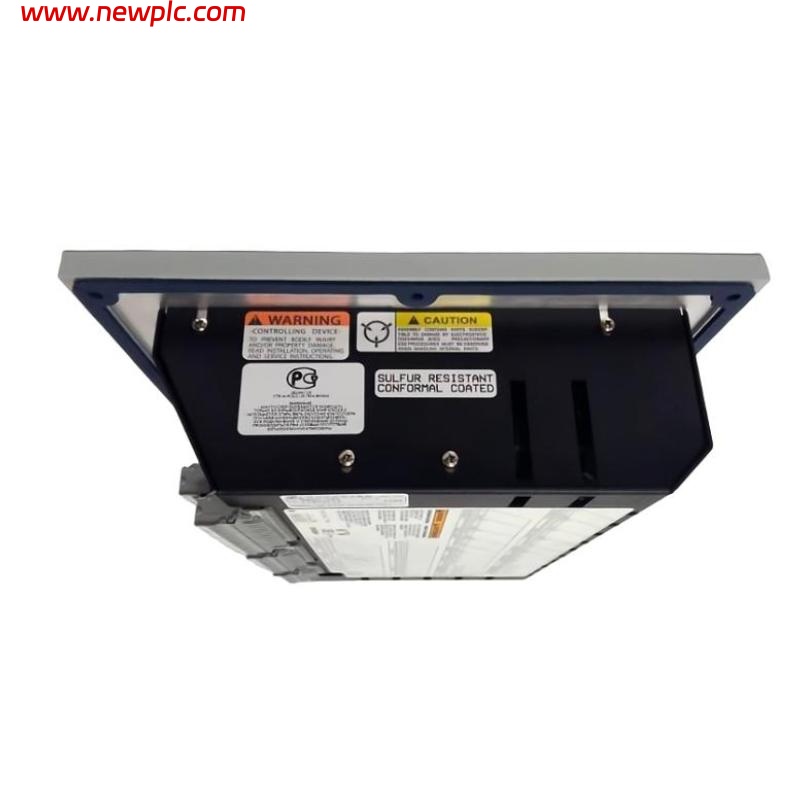

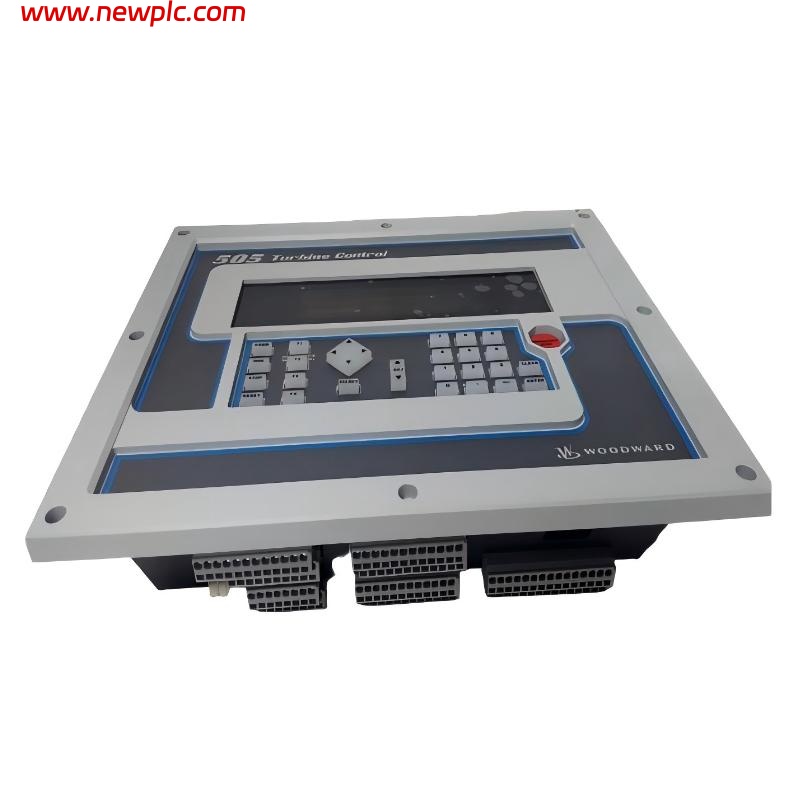

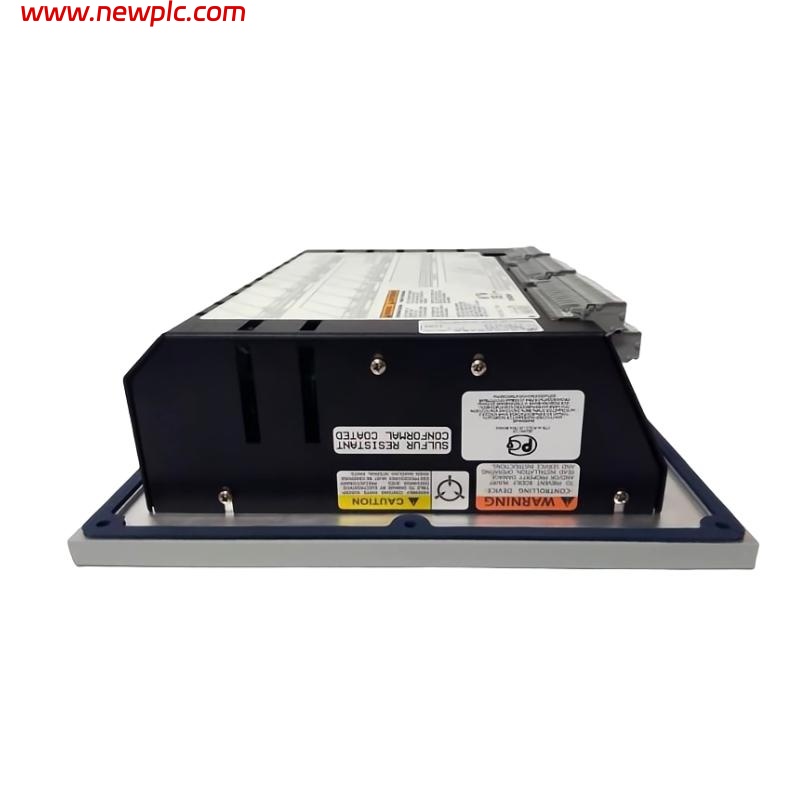

| Product Name | Digital Control Module |
| Model Number | 9905-263 |
| Brand | Woodward |
| Product Type | Digital Governor/Control Module |
| Function | Provides precise digital control for engine or turbine speed and load management |
| Control Type | Microprocessor-based digital control |
| Input Type | Speed sensor input, analog feedback, discrete signals |
| Output Type | Actuator drive output, relay outputs, analog control signals |
| Speed Sensing Range | 100 Hz to 10 kHz (magnetic pickup or proximity probe input) |
| Power Supply | 18–32 VDC nominal |
| Power Consumption | 15 W typical |
| Control Accuracy | ±0.25% of rated speed |
| Communication Interface | RS-232/RS-485 serial communication |
| Configuration | Configurable via Woodward software tools |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Vibration Resistance | 4 g, 5–500 Hz |
| Shock Resistance | 20 g, 11 ms |
| Protection | Reverse polarity and transient voltage protection |
| Mounting Type | Panel or chassis mounting |
| Dimensions | 216 x 191 x 50 mm |
| Weight | 1.1 kg |
FAQ
FAQ
Q1: What is the main function of the Woodward 9905-263 module?
A1: It provides precise digital control of engine or turbine speed, load sharing, and system synchronization.
Q2: What type of sensors can be connected to this module?
A2: It supports magnetic pickup or proximity probe sensors for accurate speed detection.
Q3: How is the 9905-263 configured?
A3: Configuration and calibration are performed using Woodward’s dedicated configuration software via RS-232 or RS-485 ports.
Q4: What kind of output does this module provide?
A4: It provides actuator drive signals, relay outputs, and analog feedback for control systems.
Q5: Does the module include protection features?
A5: Yes, it has built-in protection against reverse polarity and transient voltage conditions.
Q6: What is the accuracy level of the control system?
A6: The control accuracy is within ±0.25% of rated speed, ensuring stable performance.
Q7: Can the module operate in harsh industrial environments?
A7: Yes, it is designed for rugged environments with high vibration and temperature resistance.
Q8: In what applications is the 9905-263 commonly used?
A8: It is widely used in industrial engines, gas and steam turbines, and power generation systems requiring precise digital control.
