Technical Specifications
| Item | Specification |
|---|---|

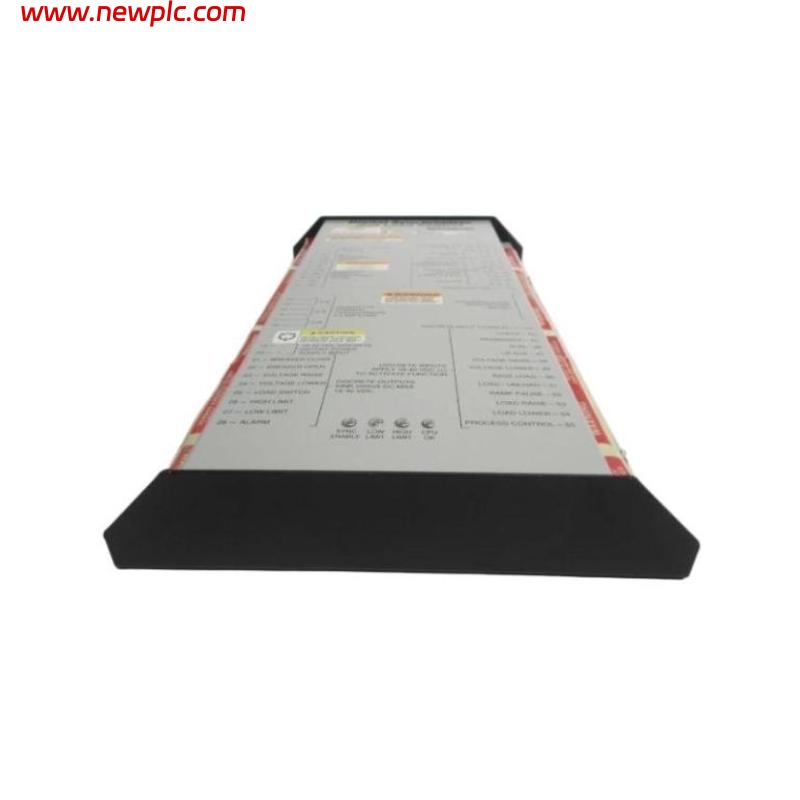

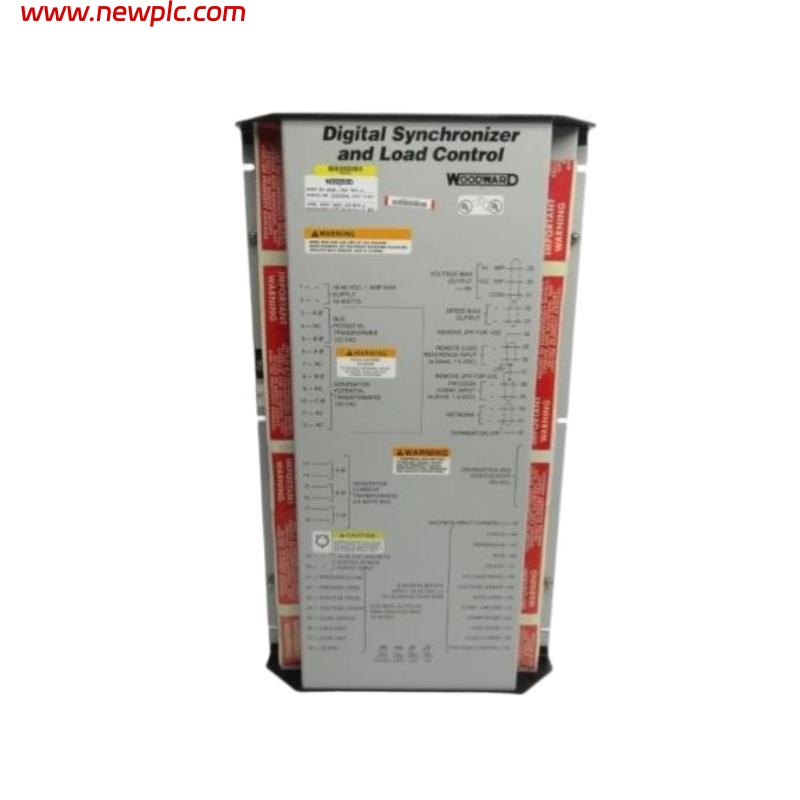

| Product Model | Woodward 9905-708 |
| Product Type | Digital Synchronizer and Load Controller |
| Function | Provides automatic synchronization and load control for generator sets |
| Control Mode | Automatic and Manual |
| Power Supply | 18 to 40 VDC |
| Power Consumption | Maximum 15 W |
| Frequency Range | 45 to 66 Hz |
| Voltage Range | 90 to 600 VAC |
| Current Input | 0–1 A or 0–5 A selectable |
| Display Type | LED indicators and digital interface |
| Communication Interface | RS-232 or RS-485 (Modbus compatible) |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Humidity | Up to 95% non-condensing |
| Dimensions | 200 × 150 × 80 mm |
| Weight | 2.2 kg |
FAQ
FAQ
Q1: What is the main function of the Woodward 9905-708?
A1: It provides automatic synchronization and load control for generator sets, ensuring stable power system operation.
Q2: What voltage range does the controller support?
A2: It supports an input voltage range from 90 to 600 VAC.
Q3: What are the power requirements for this device?
A3: The operating voltage range is 18 to 40 VDC with a maximum power consumption of 15 W.
Q4: What is the operating temperature range of the 9905-708?
A4: It operates within a temperature range of –40°C to +70°C, suitable for harsh environments.
Q5: Does the controller support communication interfaces?
A5: Yes, it supports RS-232 and RS-485 communication interfaces compatible with Modbus protocol.
Q6: What is the mounting method for this device?
A6: It is designed for panel mounting, making it easy to integrate into control panels.
Q7: Does the Woodward 9905-708 include display or indicator features?
A7: Yes, it features LED indicators and a digital interface for real-time status monitoring.
Q8: What are the dimensions and weight of the Woodward 9905-708?
A8: The dimensions are 200 × 150 × 80 mm, and the weight is 2.2 kg.
