Technical Specifications
| Parameter | Description |
|---|---|

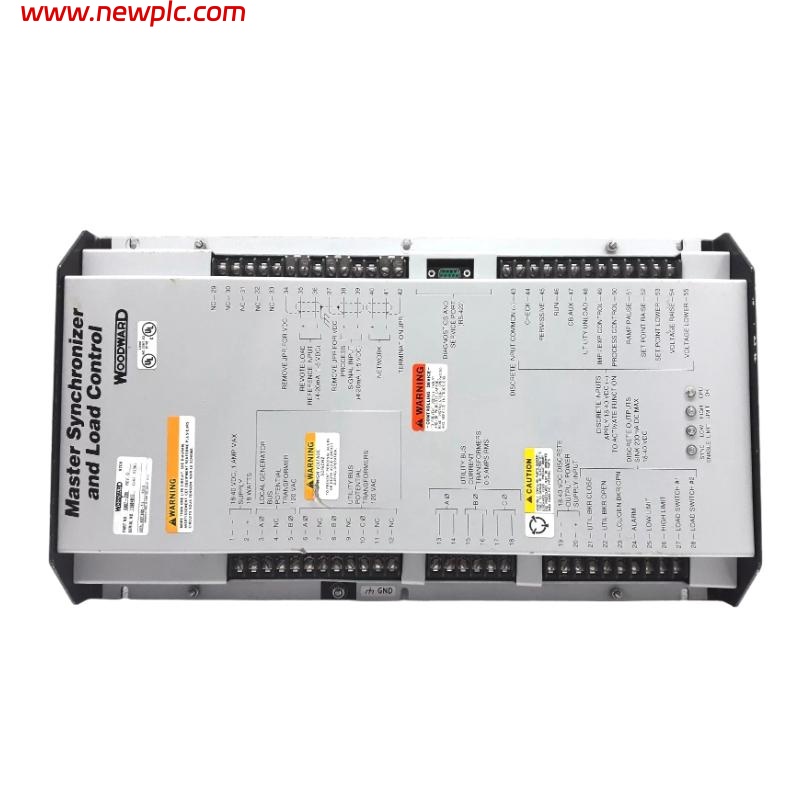

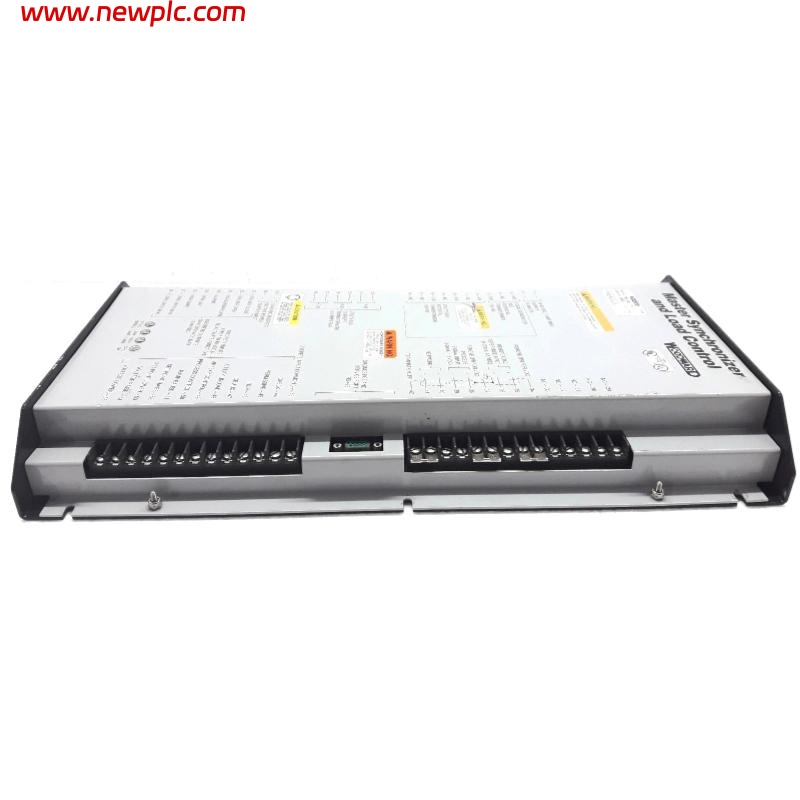

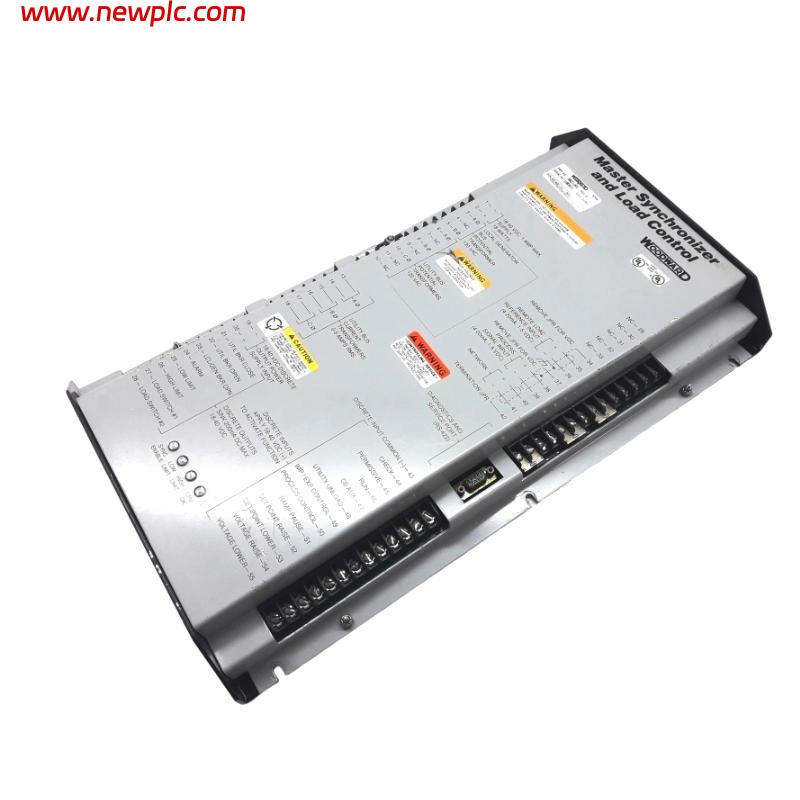

| Product Name | Master Synchronizer and Load Control Module |
| Model Number | 9907-005 |
| Brand | Woodward |
| Product Type | Digital Synchronizer and Load Control Module |
| Function | Provides precise generator synchronization, load sharing, and power control in multi-generator systems |
| Synchronization Range | 25 to 70 Hz |
| Voltage Range | 90–132 VAC or 180–264 VAC, selectable |
| Frequency Deviation Control | ±0.02 Hz typical |
| Phase Angle Synchronization | Adjustable 0–30 degrees |
| Load Sharing Accuracy | ±1% between paralleled units |
| Reactive Load Sharing | Automatic VAR or Power Factor control |
| Communication Interface | RS-485 (Modbus RTU) |
| Input Signals | Generator voltage, bus voltage, frequency, and phase |
| Output Signals | Control outputs for generator governor and AVR (Automatic Voltage Regulator) |
| Control Modes | Automatic, manual, and test modes |
| Power Supply | 24 VDC nominal (18–32 VDC range) |
| Power Consumption | 15 W typical |
| Protection Features | Over/under voltage, over/under frequency, loss of phase, phase reversal |
| LED Indicators | Power, communication, synchronization, and fault status |
| Display | Front-panel LED indicators and adjustment knobs for sync and phase |
| Mounting Type | Panel mount or rack mount |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +105°C |
| Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 5 g, 10–2000 Hz |
| Compliance | CE, UL, and CSA certified |
| Dimensions | 355.6 x 279.4 x 101.6 mm |
| Weight | 4.13 kg |
FAQ
FAQ
Q1: What is the main purpose of the Woodward 9907-005 module?
A1: The 9907-005 is designed to synchronize multiple generators with a power grid or with each other while managing load sharing and maintaining system stability.
Q2: How does this module achieve synchronization between generators and the grid?
A2: It continuously monitors voltage, frequency, and phase differences between the generator and the grid, automatically adjusting the governor and exciter to align them before connection.
Q3: What communication interface does the 9907-005 support?
A3: The module supports RS-485 communication using the Modbus RTU protocol, enabling integration with supervisory control systems.
Q4: Can the 9907-005 perform both real and reactive load control?
A4: Yes, it provides both real (kW) and reactive (kVAR or Power Factor) load sharing for balanced generator operation across the system.
Q5: What protection features are built into the 9907-005?
A5: It includes over/under voltage, over/under frequency, phase reversal, and loss-of-phase protection to prevent damage and ensure operational safety.
Q6: How is synchronization accuracy maintained under variable load conditions?
A6: The module employs dynamic feedback algorithms to compensate for load fluctuations, maintaining synchronization within ±0.02 Hz and ±1% load sharing accuracy.
Q7: What type of mounting options does the 9907-005 support?
A7: It can be mounted on a control panel or within a rack enclosure, offering flexibility for various installation environments.
Q8: In what types of systems is this module typically applied?
A8: The 9907-005 is widely used in power plants, marine vessels, and industrial facilities requiring automatic generator synchronization and load distribution control.
