Technical Specifications
| Parameter | Specification |
|---|---|

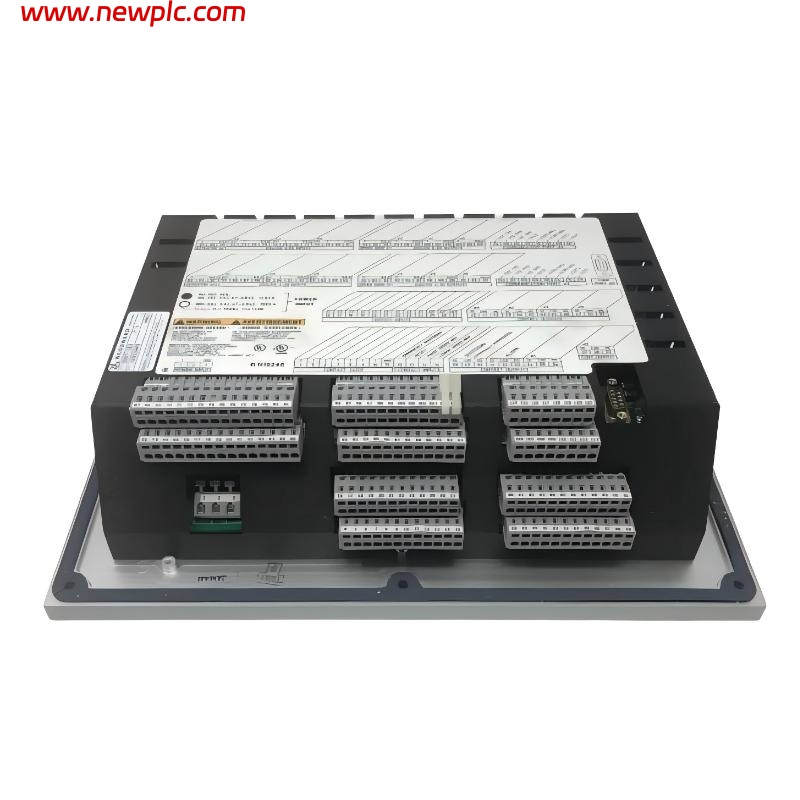

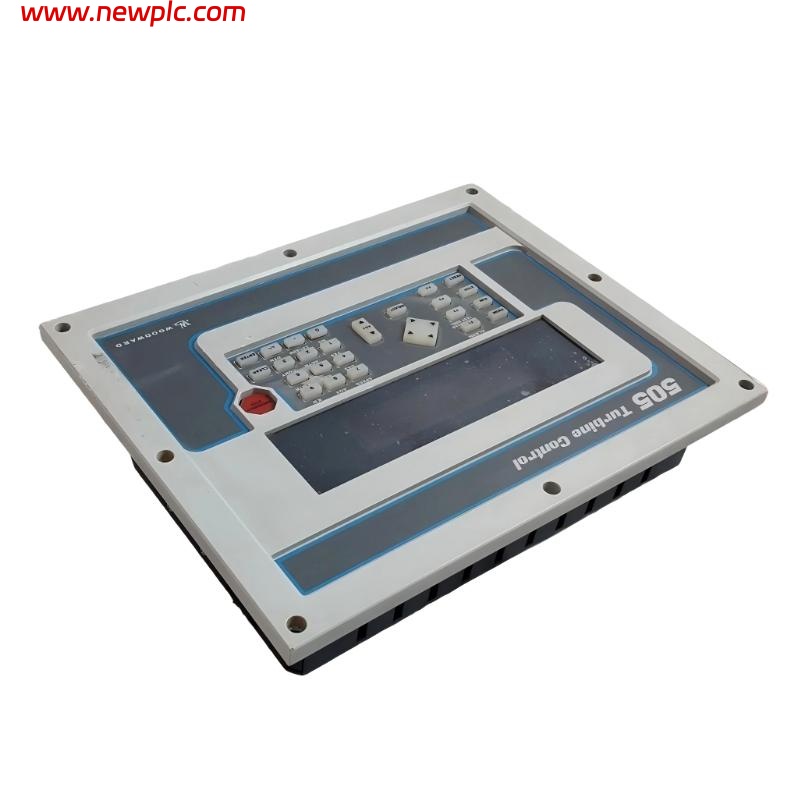

| Model | Woodward 9907-163 |
| Function | Digital Governor |
| Control Type | Electronic Speed and Load Control |
| Power Supply Voltage | 18 to 32 VDC |
| Power Consumption | 20 W typical |
| Speed Input Signal | Magnetic Pickup (MPU) or 4–20 mA |
| Speed Range | 100 to 25,000 Hz |
| Output Signal | PWM or analog output to actuator |
| Communication Interface | RS-232 / RS-485 |
| Control Accuracy | ±0.25% of rated speed |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity Resistance | Up to 95% non-condensing |
| Vibration Resistance | 5–500 Hz, 1.5 mm / 2 g |
| Dimensions (HxWxD) | 355.6 x 279.4 x 101.6 mm |
| Weight | 3.6 kg |
FAQ
FAQ
Q1: What is the main function of the Woodward 9907-163?
A1: The 9907-163 is a digital governor designed to provide precise control of engine or turbine speed and load in industrial and marine applications.
Q2: What types of speed input signals does it accept?
A2: It accepts magnetic pickup (MPU) signals or 4–20 mA input signals for speed measurement.
Q3: What type of output signals are provided?
A3: The governor outputs PWM or analog signals to actuators for controlling fuel or energy input.
Q4: Does the 9907-163 support communication with external systems?
A4: Yes, it includes RS-232 and RS-485 interfaces for monitoring, configuration, and integration into control systems.
Q5: How accurate is the speed control?
A5: It maintains speed accuracy within ±0.25% of the rated speed under normal operating conditions.
Q6: What is the environmental operating range for this controller?
A6: It operates reliably in temperatures from -40°C to +70°C and can tolerate up to 95% non-condensing humidity.
Q7: What types of engines or turbines can the 9907-163 control?
A7: It is suitable for diesel, gas, dual-fuel engines, and small turbine applications.
Q8: What is the typical power consumption of the 9907-163?
A8: The module typically consumes approximately 20 W during normal operation.
