Technical Specifications
| Item | Specification |
|---|---|
| Model | 9907‑167 (505E) |

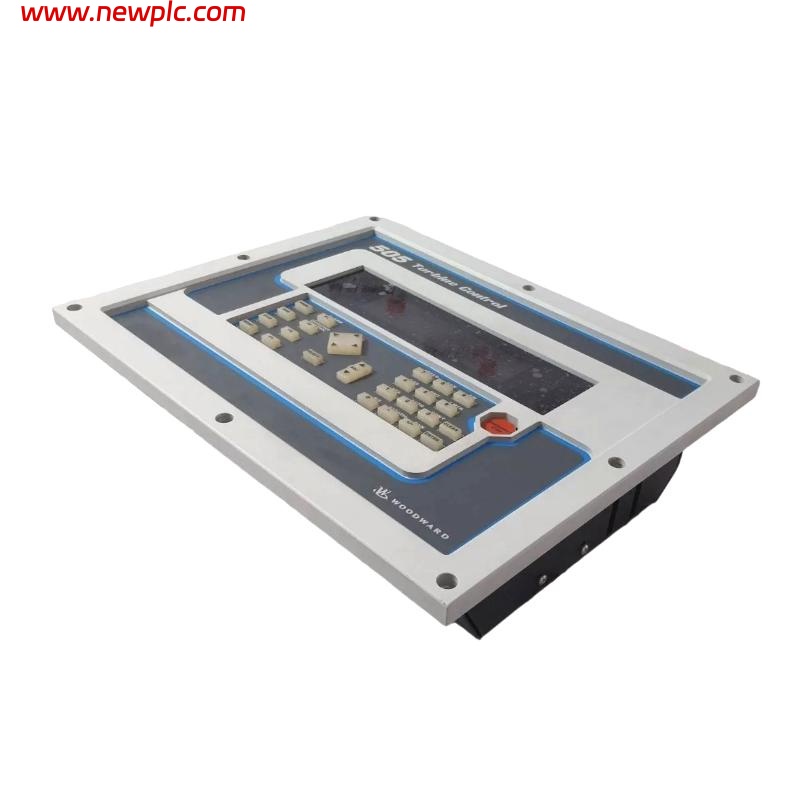

| Product Name | Digital Speed Controller |
| Manufacturer | Woodward |
| Control Type | Embedded microprocessor control (PID structure) |
| Input Signal | Speed sensor or encoder signal |
| Control Range | Typical 0‑3600 rpm (application dependent) |
| Output Type | Actuator outputs + relay outputs + programmable current outputs |
| Accuracy | ±0.1% (typical) |
| Response Time | ≤ 10 ms (typical) |
| Power Supply | 18‑32 V DC |
| Operating Temperature Range | –40 °C to +70 °C |
| Mounting | Panel‑mount or rack installation |
| Dimensions | 355.6 x 279.4 x 101.6 mm |
| Weight | 3.6 kg |
FAQ
FAQ
Q1: What is the main function of this speed controller?
A1: It provides precise digital speed control and protection for turbine, generator, or compressor drive systems to ensure stable operation at the setpoint.
Q2: What types of input signals does it support?
A2: It supports speed sensor or encoder inputs for rotational speed measurement.
Q3: What types of outputs are provided?
A3: It provides actuator outputs for process valves or actuators, relay outputs, and programmable 4‑20 mA current outputs.
Q4: What is its operating temperature range?
A4: –40 °C to +70 °C.
Q5: What are the dimensions and weight of this controller?
A5: Approximately 355.6 x 279.4 x 101.6 mm in size and around 0.36 kg in weight.
Q6: Does it support hot‑swapping?
A6: No, replacement or maintenance should be done with power off.
Q7: What should be considered when selecting this model?
A7: Review required control range (speed/ load), input signal type, power supply specification, output requirements and system compatibility.
Q8: What are typical application scenarios for this unit?
A8: Used in turbines, gas engines, compressors for speed regulation and protection—such as power plants, petrochemical facilities, offshore platforms.
