Technical Specifications
| Item | Specification |
|---|---|

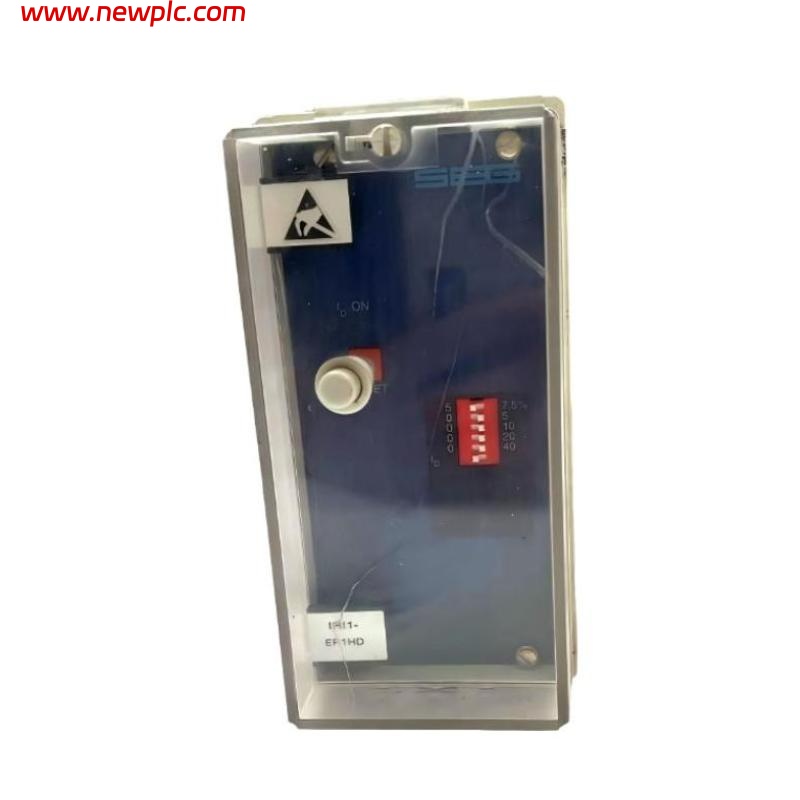

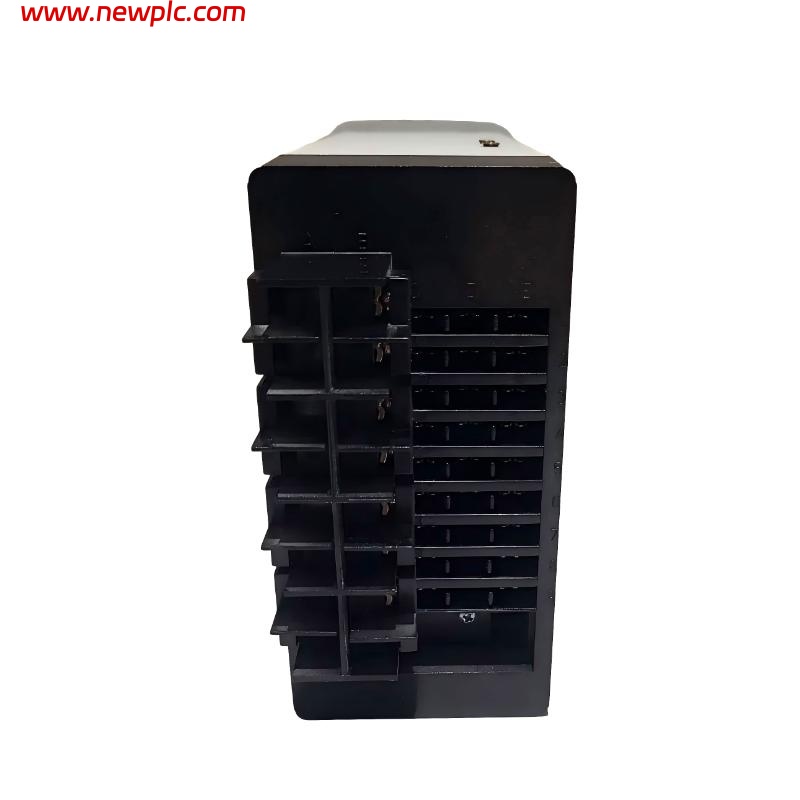

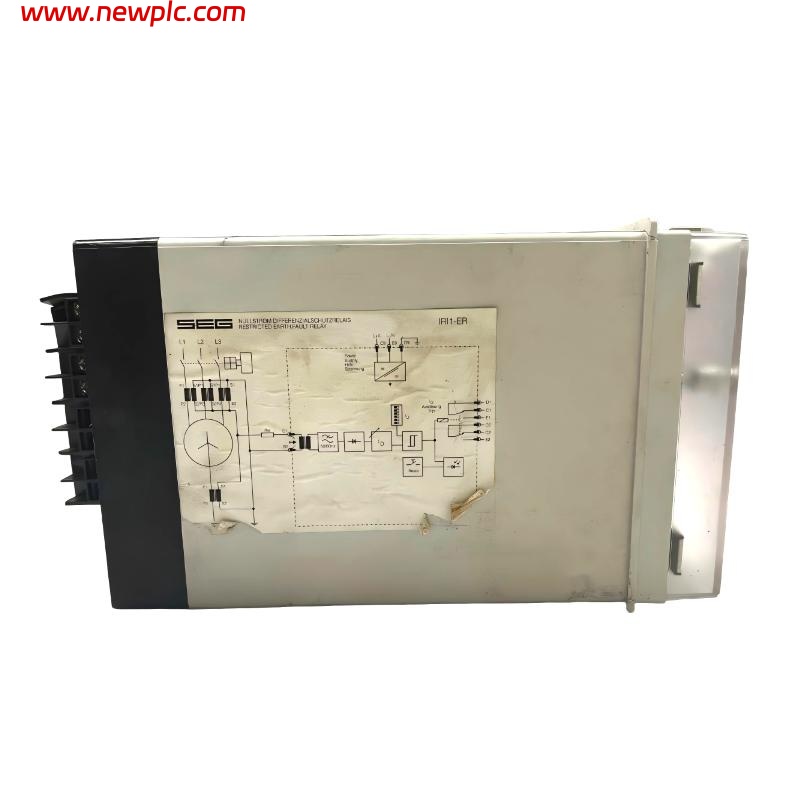

| Model | IRI1-I5E05D |
| Manufacturer | Woodward |
| Product Type | Earth Fault Relay |
| Protection Function | Ground fault / earth leakage detection |
| Input Current Range | 0.1 – 5 A (configurable) |
| Rated Frequency | 50 / 60 Hz |
| Measurement Principle | True RMS evaluation |
| Operating Mode | Definite time and inverse time |
| Trip Characteristic | IEC standard inverse curves |
| Time Delay Setting | 0.05 – 30 seconds |
| Pickup Setting Range | Adjustable via rotary dials |
| Reset Method | Manual or automatic |
| Output Contacts | 1 trip relay + 1 alarm relay |
| Contact Rating | 5 A @ 250 V AC |
| Power Supply Options | 24–240 V AC / DC |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Insulation Level | Industrial protection class |
| Enclosure Type | Metal housing |
| Installation Method | Panel mounting |
| Terminal Type | Screw terminals |
| EMC Compliance | IEC / EN industrial standard |
| Insulation Resistance | >100 MΩ |
| Dimensions (L × W × H) | 260 × 72 × 138 mm |
| Weight | 1.5 kg |
FAQ
FAQ
Q1: What type of ground fault conditions can this relay detect?
A1: It detects leakage currents caused by insulation failure, cable damage, or unintended grounding paths in power systems.
Q2: Can the relay be adjusted for low-level earth leakage detection?
A2: Yes, sensitivity can be set as low as 0.1 A to detect early-stage insulation faults.
Q3: Does this relay support inverse time protection curves?
A3: Yes, it provides IEC inverse time characteristics to coordinate with upstream and downstream protection devices.
Q4: How does the relay reduce nuisance tripping?
A4: Adjustable time delay and filtering prevent momentary ground transients from triggering false trips.
Q5: Is this relay suitable for both AC and DC auxiliary supplies?
A5: Yes, it accepts a wide-range AC/DC auxiliary power input.
Q6: Can the relay provide both alarm and trip signaling?
A6: Yes, it includes separate output contacts for alarm and trip functions.
Q7: How is fault status indicated?
A7: LED indicators on the front panel display operating condition, trip status, and power presence.
Q8: Can the relay be integrated with protection panels and PLC systems?
A8: Yes, its relay outputs allow seamless integration with control circuits, annunciators, and automation systems.
