Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodhead / SST |

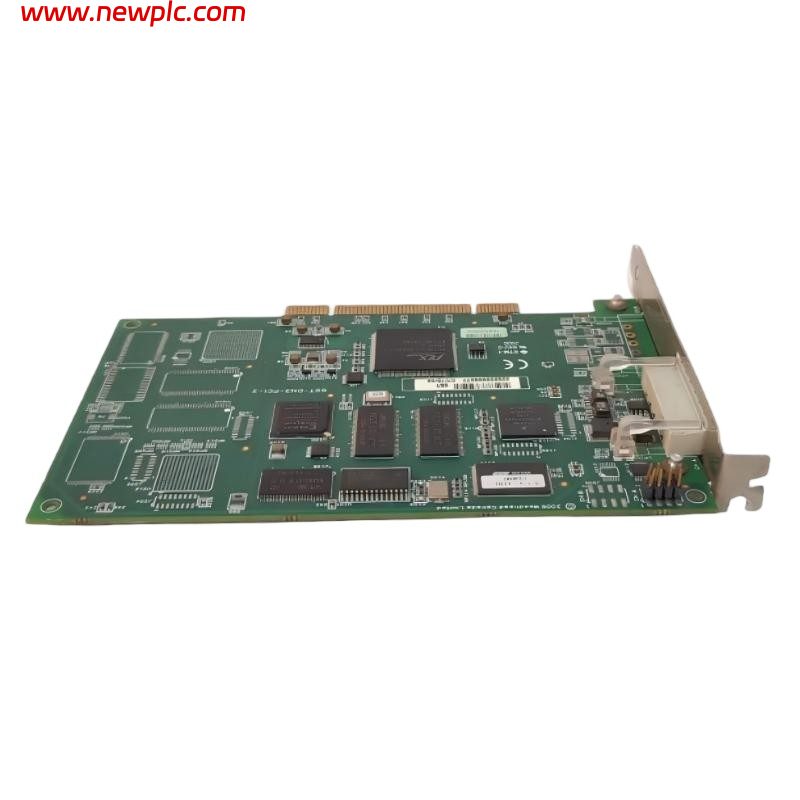

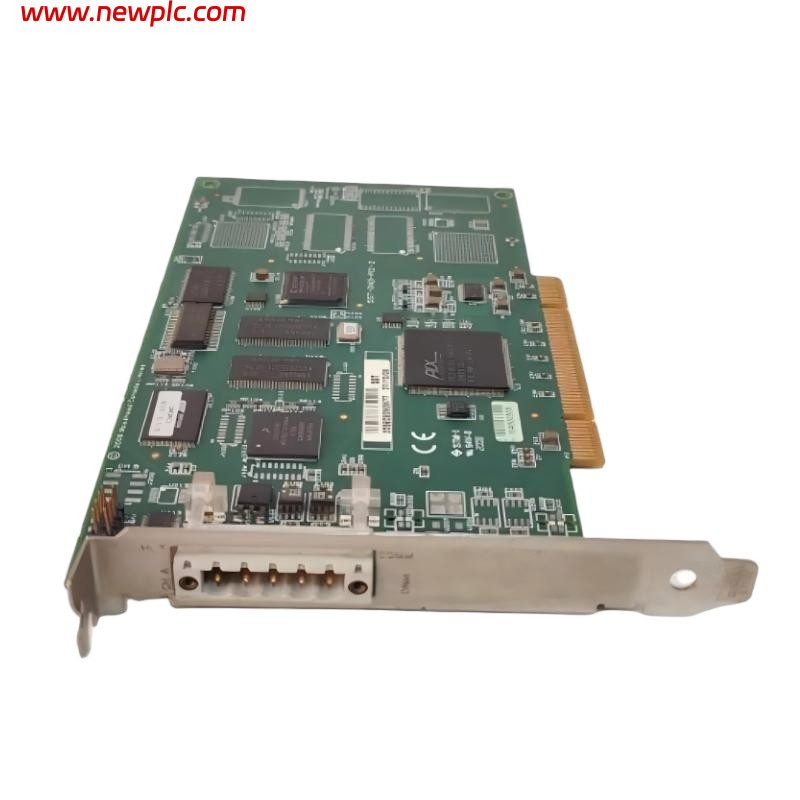

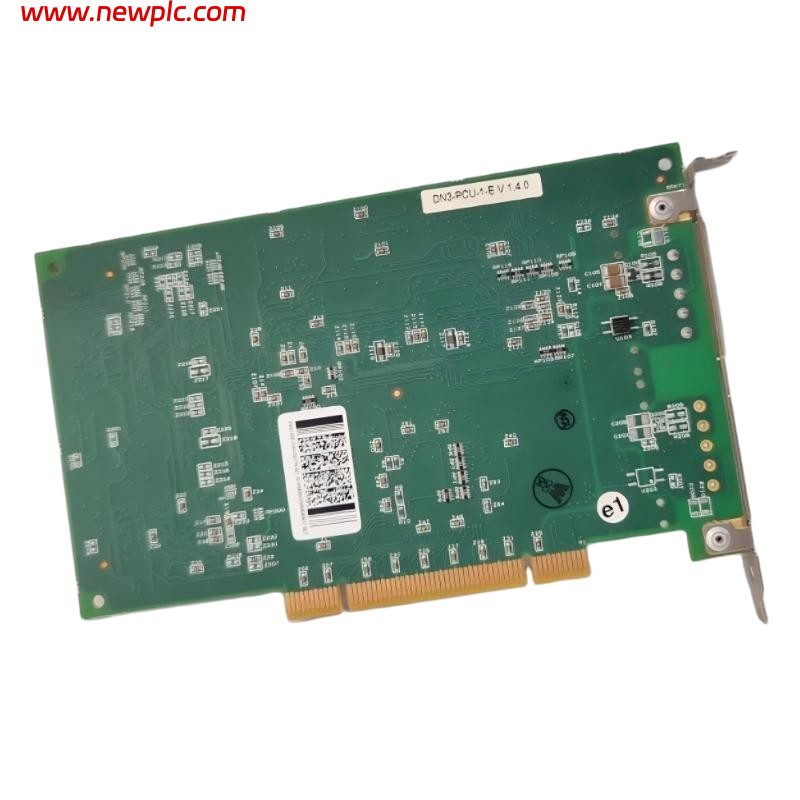

| Product Model | SST-DN3-PCI-2 |
| Product Type | DeviceNet PCI Interface Card |
| Application | Industrial automation and PC-based control systems |
| DeviceNet Channels | 2 independent channels |
| Host Bus | 32-bit PCI |
| PCI Standard | PCI v2.3 |
| CAN Interface | CAN-based DeviceNet |
| DeviceNet Baud Rates | 125, 250, 500 kbps |
| CAN Data Rate | Up to 1 Mbps |
| CAN Connector | 5-pin DeviceNet/CAN connector |
| Processor | Independent CPU for each channel |
| Shared Memory | 256 KB per channel |
| CAN Physical Layer | Electrically isolated |
| Status Indicators | Bi-color LED indicators |
| Operating Temperature | 0 to 55°C |
| Power Supply | PCI bus / external DeviceNet power as required |
| Form Factor | Standard PCI plug-in card |
| Approx. Dimensions | 108 × 70 × 18 mm |
| Approx. Weight | 0.34 kg |
| Network Protocol | DeviceNet / CAN |
| Compatibility | CAN Specification 2.0A and 2.0B |
| Typical Use | DeviceNet network interface, industrial PC control, machine automation |
FAQ
FAQ
Q1: What is the Woodward SST-DN3-PCI-2?
A: The SST-DN3-PCI-2 is a two-channel DeviceNet PCI interface card used to connect an industrial PC or control computer to DeviceNet networks.
Q2: How many DeviceNet channels does the SST-DN3-PCI-2 have?
A: It has two independent DeviceNet channels. Each channel is controlled by its own CPU, so activity on one channel does not directly affect the processing resources of the other.
Q3: Is the SST-DN3-PCI-2 a PCI or PCIe card?
A: It is a 32-bit PCI card, not a PCIe card. The host computer therefore needs a compatible conventional PCI slot.
Q4: What DeviceNet communication speeds are supported?
A: The card supports the standard DeviceNet baud rates of 125 kbps, 250 kbps, and 500 kbps. For general CAN communication, the interface can support data rates of up to 1 Mbps.
Q5: Can the two channels operate independently?
A: Yes. The two interfaces use independent CPUs and do not share processor or memory resources. An application running on one channel therefore does not directly affect the performance of the other channel.
Q6: What type of connector does the SST-DN3-PCI-2 use?
A: The card uses a 5-pin CAN/DeviceNet connector for network connections. The card also provides LED indicators for monitoring channel and communication status.
Q7: What is the operating temperature range of the SST-DN3-PCI-2?
A: The commonly specified operating temperature range is approximately 0 to 55°C. For an actual installation, the original hardware documentation and the environmental conditions of the host computer should be checked.
Q8: Is the SST-DN3-PCI-2 still available?
A: The SST-DN3-PCI-2 is a legacy Woodhead product and is generally found through industrial automation distributors and surplus-equipment suppliers. Availability and condition can vary, so the exact part number and hardware revision should be confirmed before purchase.
