Technical Specifications
| Item | Specification |
|---|---|

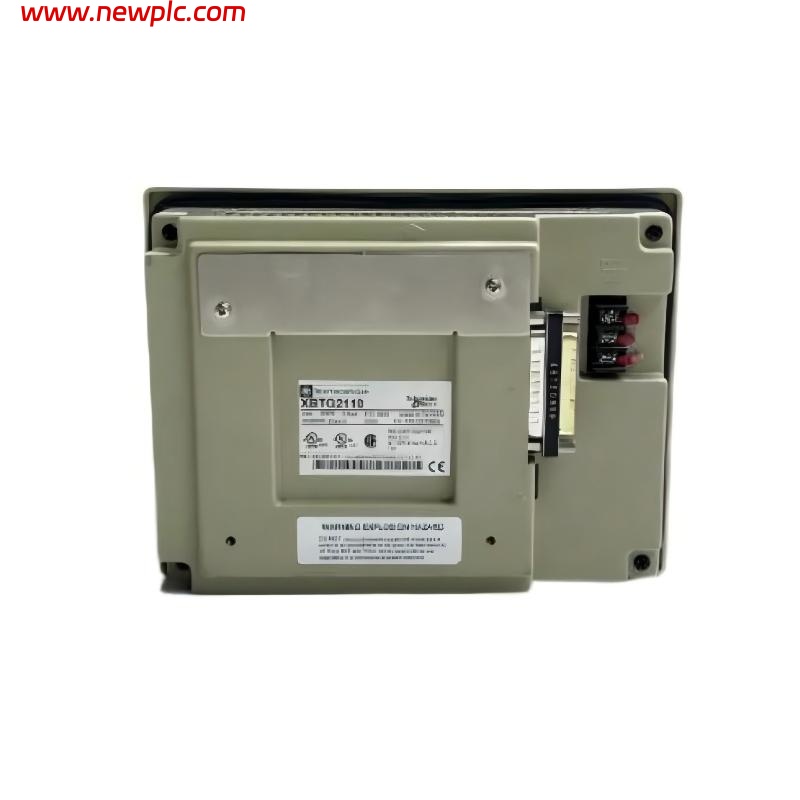

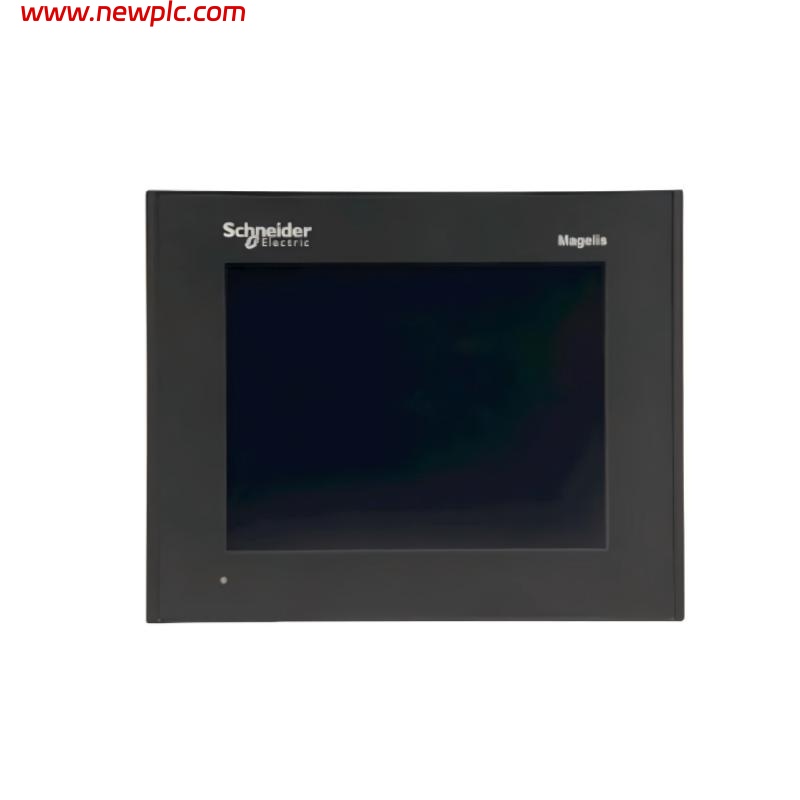

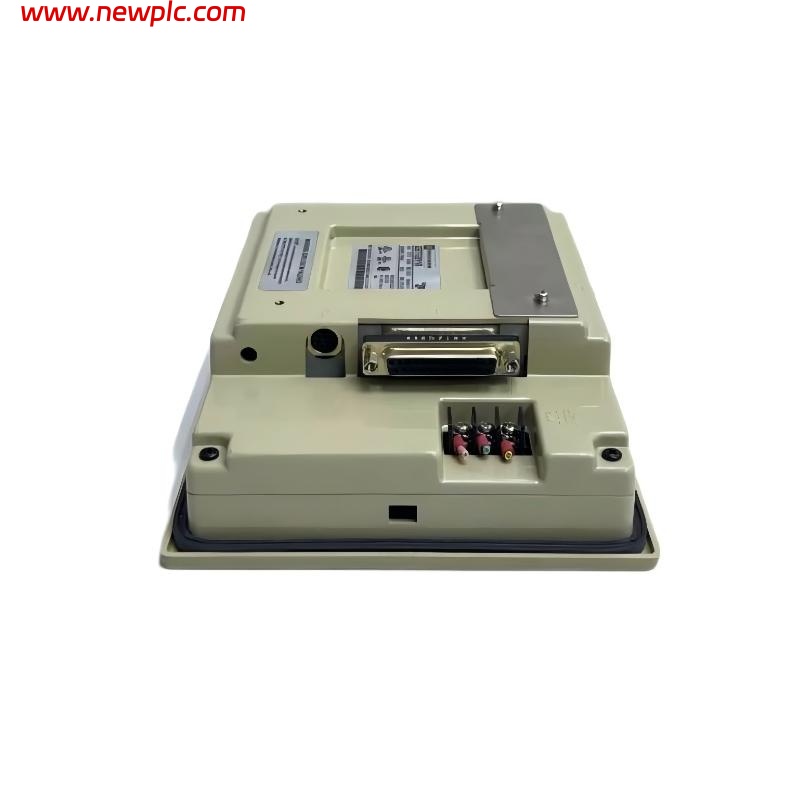

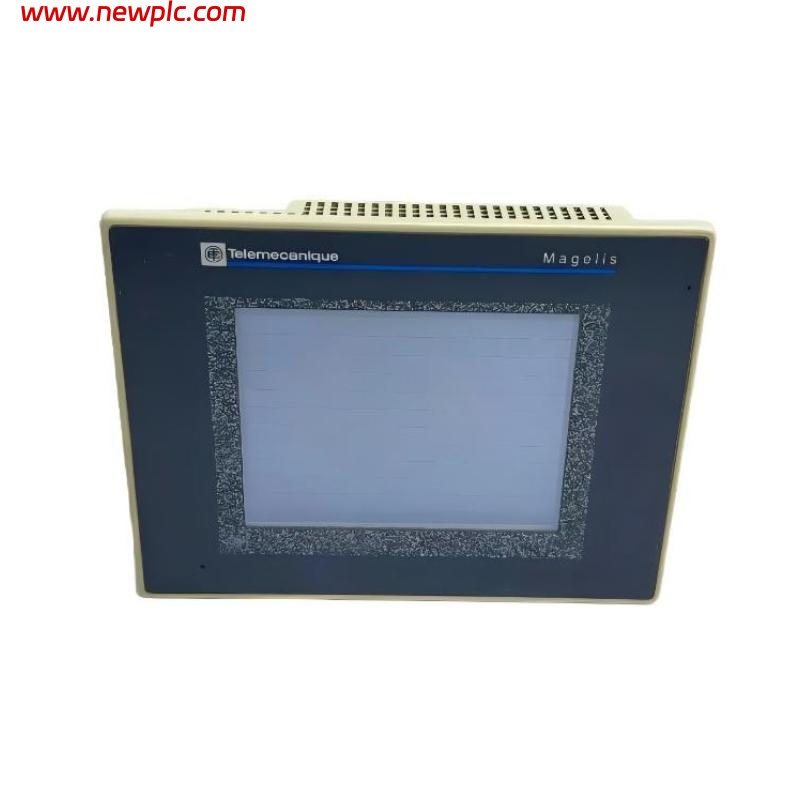

| Product Model | Schneider XBTG2110 |
| Product Type | Touch Screen Panel |
| Display Type | Color TFT LCD |
| Screen Size | 3.5 inches (diagonal) |
| Resolution | 320 × 240 pixels |
| Touch Type | Resistive touchscreen |
| Communication Interfaces | RS-232, RS-485, Modbus RTU, CANopen |
| Power Supply Voltage | 24 V DC |
| Power Consumption | Max 6 W |
| Memory | 2 MB user program |
| Storage | 2 MB internal flash |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Type | Panel mounting |
| Protection Rating | IP65 (front panel) |
| Dimensions | 167.5 x 135 x 59.5 mm |
| Weight | 1.0 kg |
FAQ
FAQ
Q1: What communication protocols does the XBTG2110 support?
A1: It supports Modbus RTU, CANopen, and communication via RS-232/RS-485 interfaces.
Q2: What is the screen type and size?
A2: The panel has a 3.5-inch color TFT LCD with a resistive touchscreen.
Q3: How is the XBTG2110 installed?
A3: It supports panel mounting, with an IP65-rated front panel.
Q4: What is the power requirement?
A4: It requires 24 V DC power with a maximum consumption of 6 W.
Q5: What are the memory and storage capacities?
A5: User program memory is 2 MB, and internal flash storage is 2 MB.
Q6: What is the operating temperature range?
A6: Operating temperature is 0°C to +55°C, and storage temperature is -20°C to +70°C.
Q7: What are the dimensions and weight of the device?
A7: Dimensions are 1167.5 x 135 x 59.5 mm, and the weight is 1.0 kg.
Q8: What are typical applications for the XBTG2110?
A8: It is suitable for HMI display and operation in small control systems, such as machine panels and automation devices.
