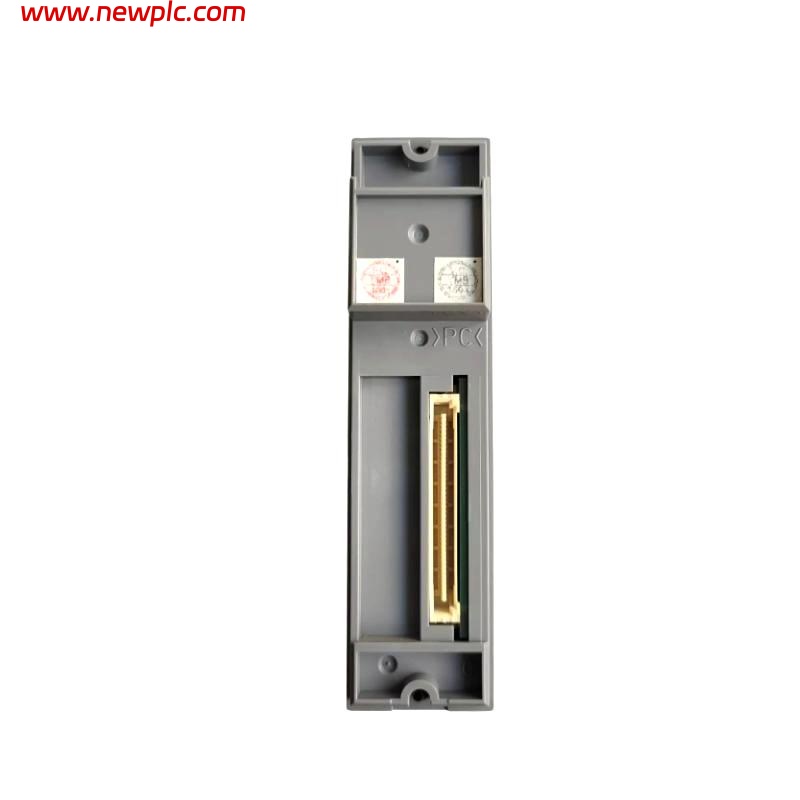

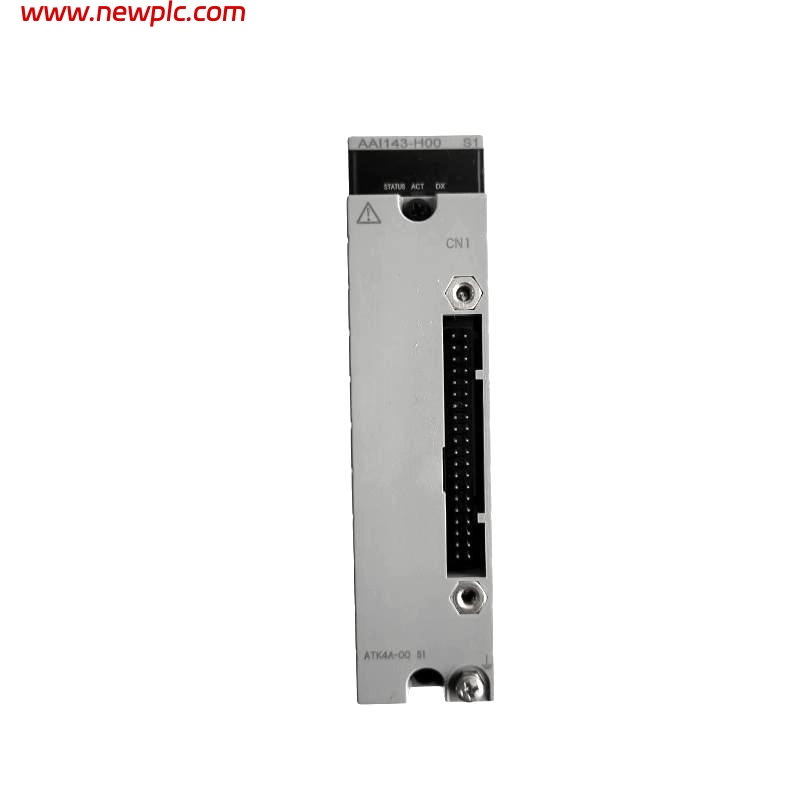

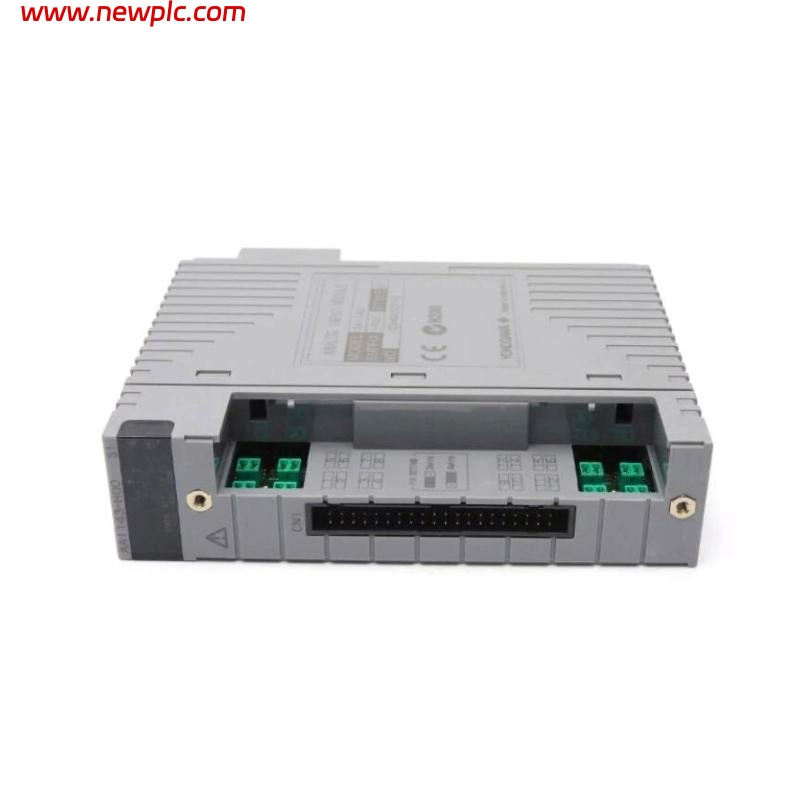

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H00 S1 |
| Input channels | 16 (isolated) |
| Input signal | 4 to 20 mA DC |
| Allowable input current | 24 mA |
| Withstanding voltage | 1500 V AC (1 minute, input to system) |
| Input resistance (power ON) | 270 Ω (20 mA) to 350 Ω (4 mA) |
| Input resistance (power OFF) | ≥500 kΩ |
| Accuracy | ±16 µA |
| Data update period | 10 ms |
| Transmitter power supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA), output limit: 25 mA |
| Temperature drift | ±16 µA/10 °C |
| Maximum current consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART communication | Supported |
| External connections | Pressure clamp terminal, MIL connector cable, dedicated KS1 cable |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many input channels does this module support?
A1: The AAI143-H00 S1 module supports 16 isolated current input channels.
Q2: What type of input signal does it accept?
A2: It accepts standard 4 to 20 mA DC current signals.
Q3: Does the module support HART communication?
A3: Yes, the module supports HART communication.
Q4: What is the maximum allowable input current?
A4: The maximum allowable input current is 24 mA.
Q5: What are the module’s dimensions and weight?
A5: The dimensions are 107.5 × 32.8 × 130 mm, and it weighs approximately 0.3 kg.
Q6: What is the withstanding voltage?
A6: The withstanding voltage between input and system is 1500 V AC for 1 minute.
Q7: What is the input resistance per channel?
A7: Input resistance per channel is 270 Ω (at 20 mA) to 350 Ω (at 4 mA) when powered on, and ≥500 kΩ when powered off.
Q8: What is the module’s power consumption?
A8: The maximum power consumption is 230 mA (5 V DC) and 540 mA (24 V DC).
