Technical Specifications
| Parameter | Description |
|---|---|

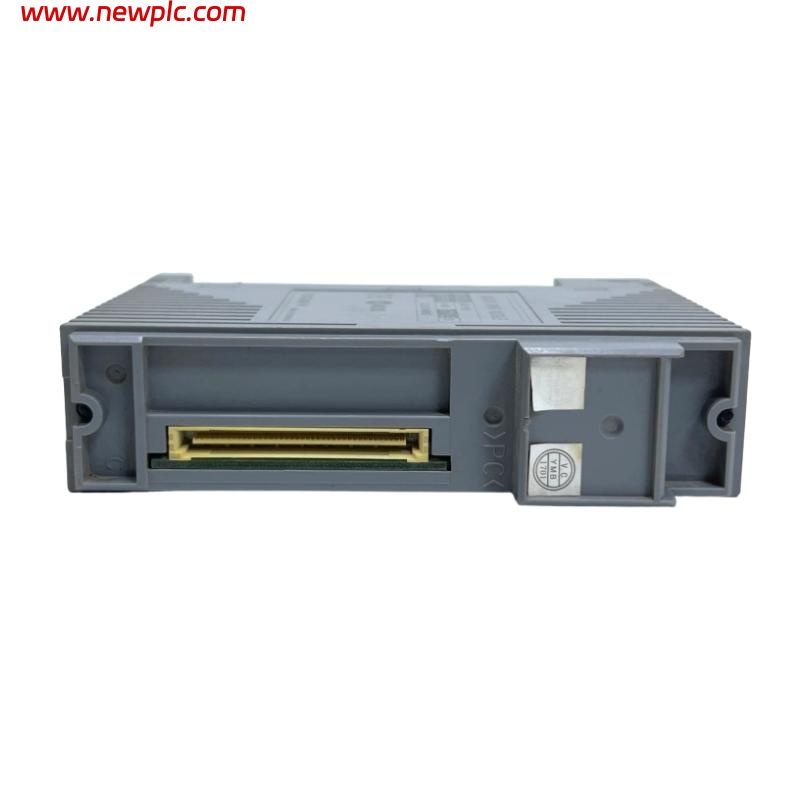

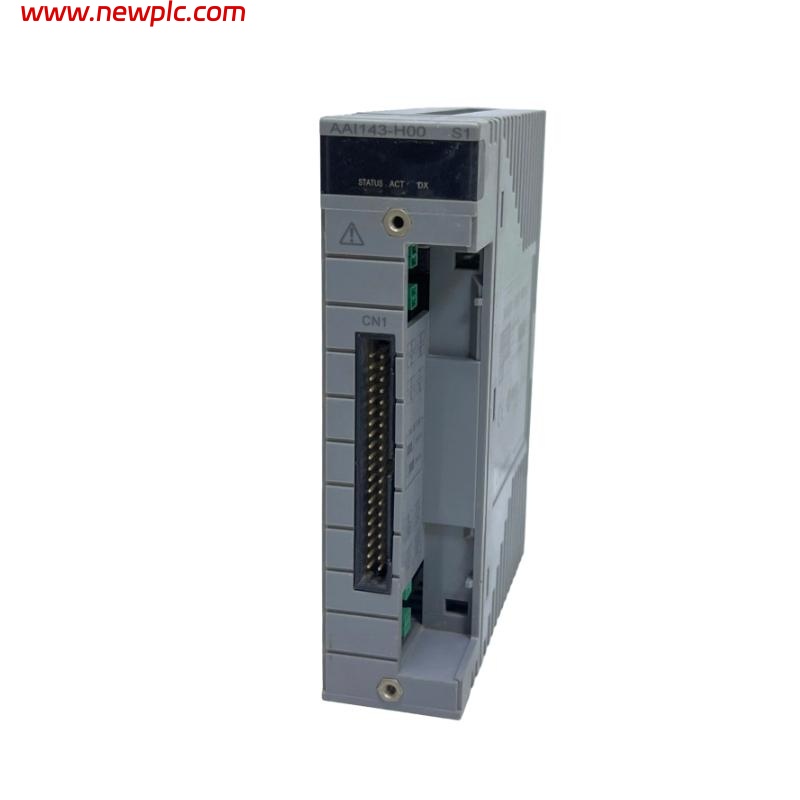

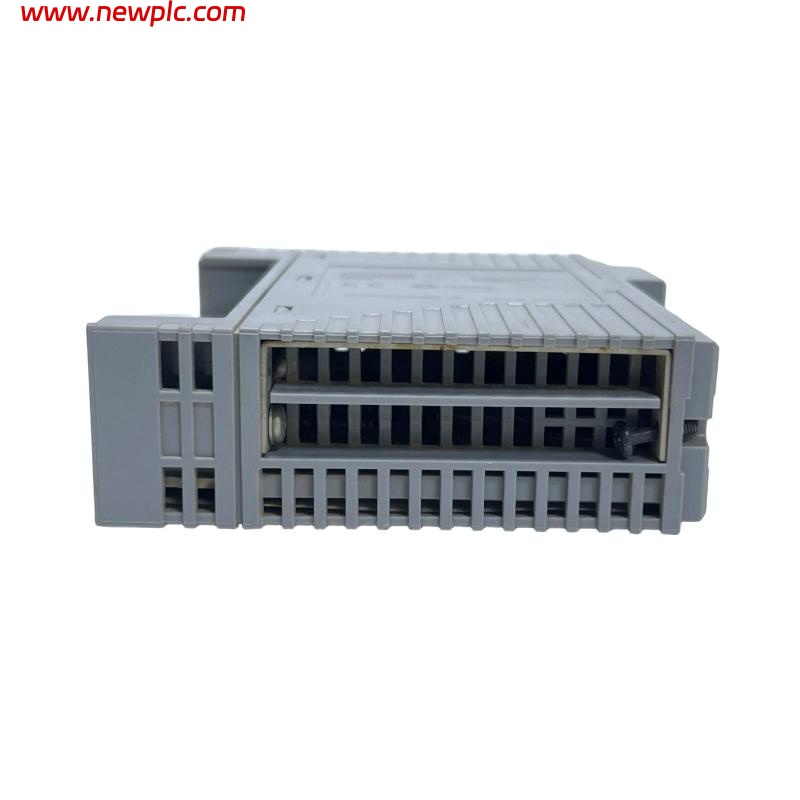

| Module Model | AAI143-H5 |
| Type | Analog Input Module |
| Input Signal Type | 4–20 mA DC |
| Number of Channels | 16 channels |
| Input Accuracy | ±0.1% F.S. |
| Resolution | 12-bit |
| Isolation Method | Channel-to-system bus isolation |
| Power Supply Voltage | 24 V DC (supplied via system) |
| Power Consumption | 6 W (typical) |
| Operating Temperature Range | 0 to 55 ℃ |
| Storage Temperature Range | -40 to 70 ℃ |
| Humidity Range | 5 to 95% RH (non-condensing) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many input channels does the AAI143-H5 module support?
A1: It supports 16 analog input channels.
Q2: What is the input signal type for this module?
A2: The input signal type is 4–20 mA DC.
Q3: What is the resolution of the AAI143-H5?
A3: The resolution is 12-bit.
Q4: Is the module isolated from the system bus?
A4: Yes, it has electrical isolation between the input channels and the system bus.
Q5: What is the power consumption of this module?
A5: The typical power consumption is 6 W.
Q6: What is the operating temperature range of the AAI143-H5?
A6: The operating temperature range is 0 to 55 ℃.
Q7: What are the dimensions and weight of the module?
A7: The dimensions are 107.5 × 32.8 × 130 mm, and the weight is 0.3 kg.
Q8: In what applications can this module be used?
A8: It can be used for analog signal acquisition and monitoring in process automation systems.
