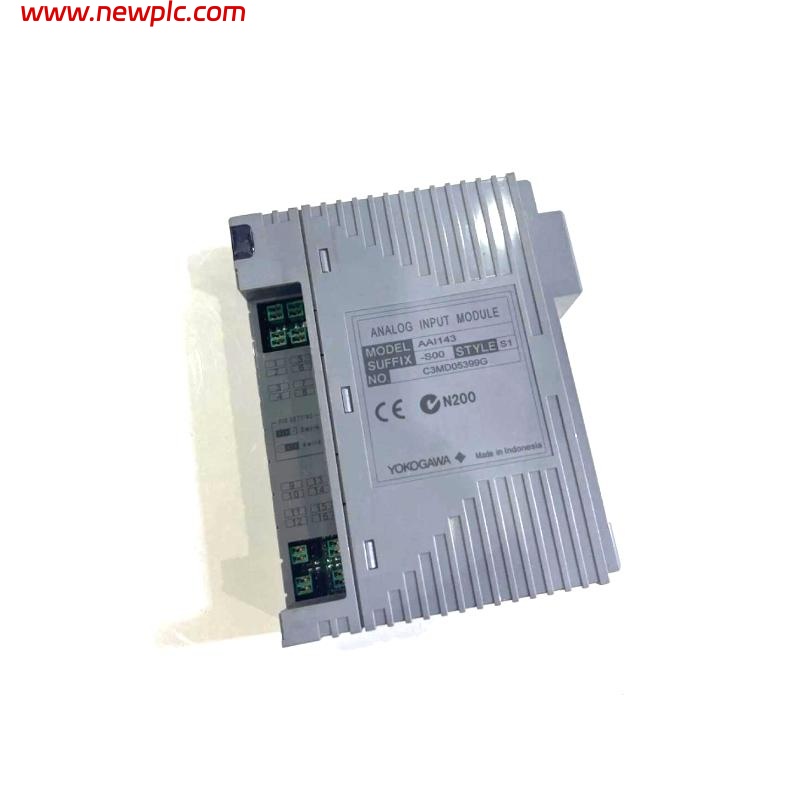

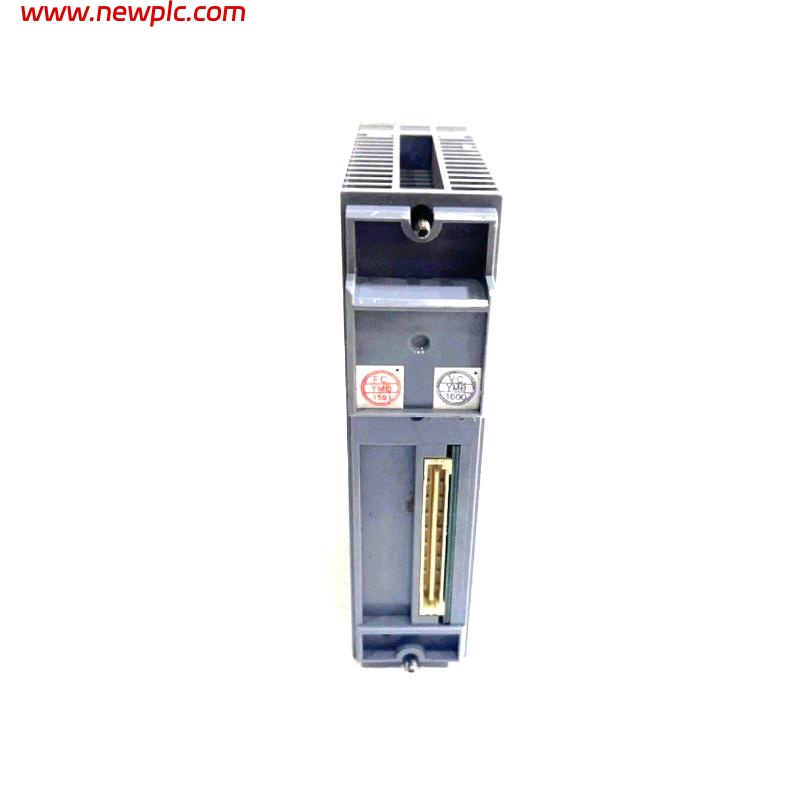

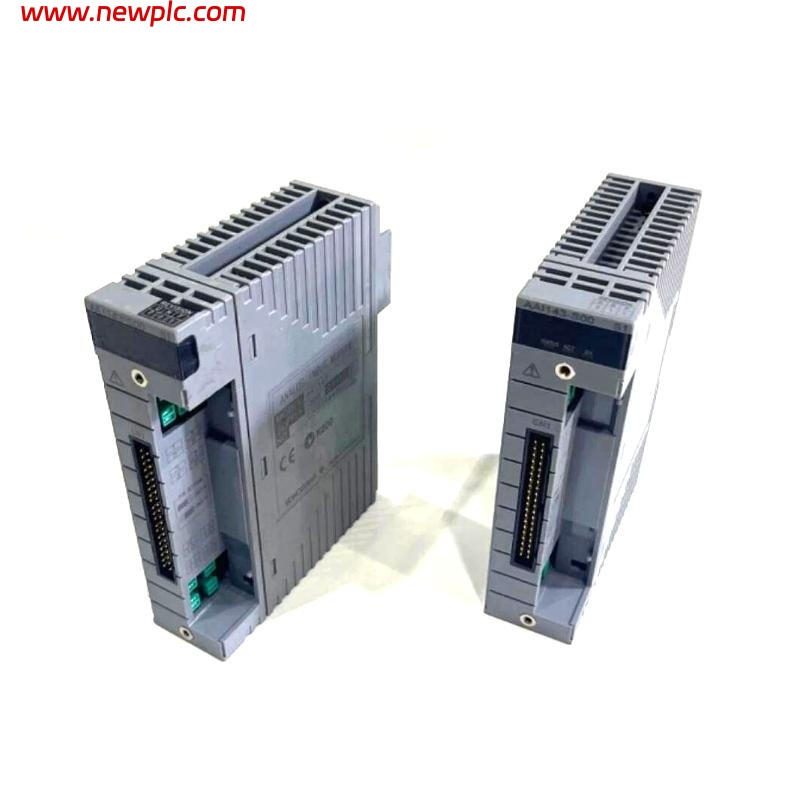

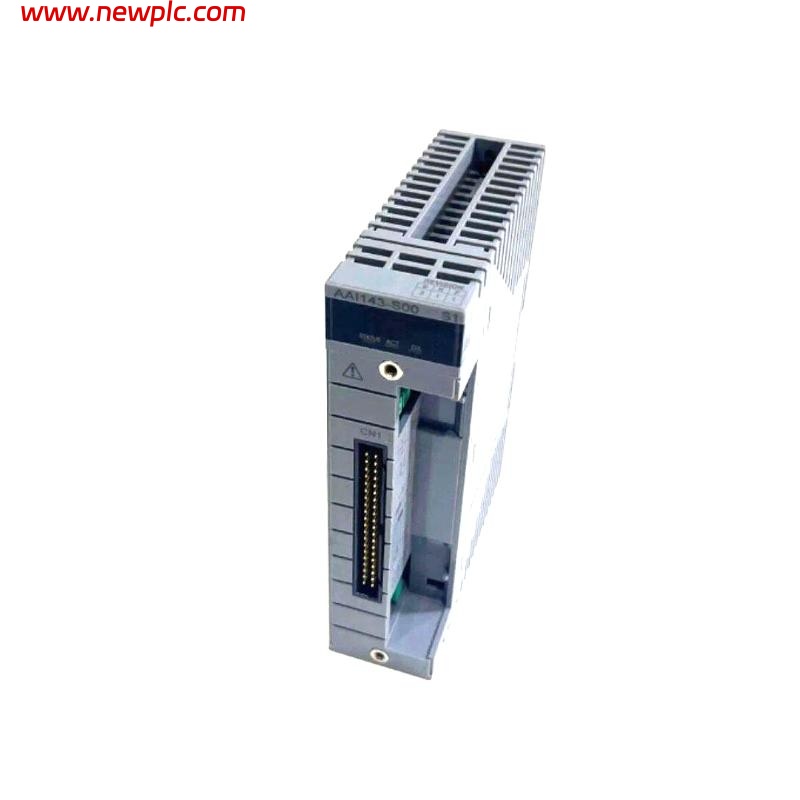

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-S00 S1 |
| Input Signal | 4 to 20 mA |
| Number of Input Channels | 16 (isolated) |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Withstanding Voltage | 1500 V AC (1 minute) between input and system |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA) |
| Output Current Limit | 25 mA |
| Setting for Transmitter Type | Set by pin per channel (2-wire or 4-wire) |
| Drift Due to Temperature Change | ±16 µA / 10 °C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 cable |
| HART Communication | Available |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many input channels does the AAI143 module support?
A1: It supports 16 isolated analog input channels.
Q2: What type of signal does the AAI143 accept?
A2: The module accepts 4 to 20 mA DC current signals.
Q3: Is the AAI143 electrically isolated?
A3: Yes, the inputs are isolated from the system with a 1500 V AC rating for 1 minute.
Q4: Does the AAI143 support HART communication?
A4: Yes, it supports HART communication when used with a compatible ER bus node unit.
Q5: How is the transmitter type configured for each channel?
A5: The transmitter type (2-wire or 4-wire) is configured using jumpers per channel.
Q6: What is the data update period of the module?
A6: The data is updated every 10 milliseconds.
Q7: What are the physical dimensions and weight of the AAI143?
A7: Dimensions are 107.5 × 32.8 × 130 mm, and weight is 0.3 kg.
Q8: Can a Zener barrier be used with this module?
A8: No, Zener barriers are not allowed. Use isolation barriers for intrinsic safety applications.
