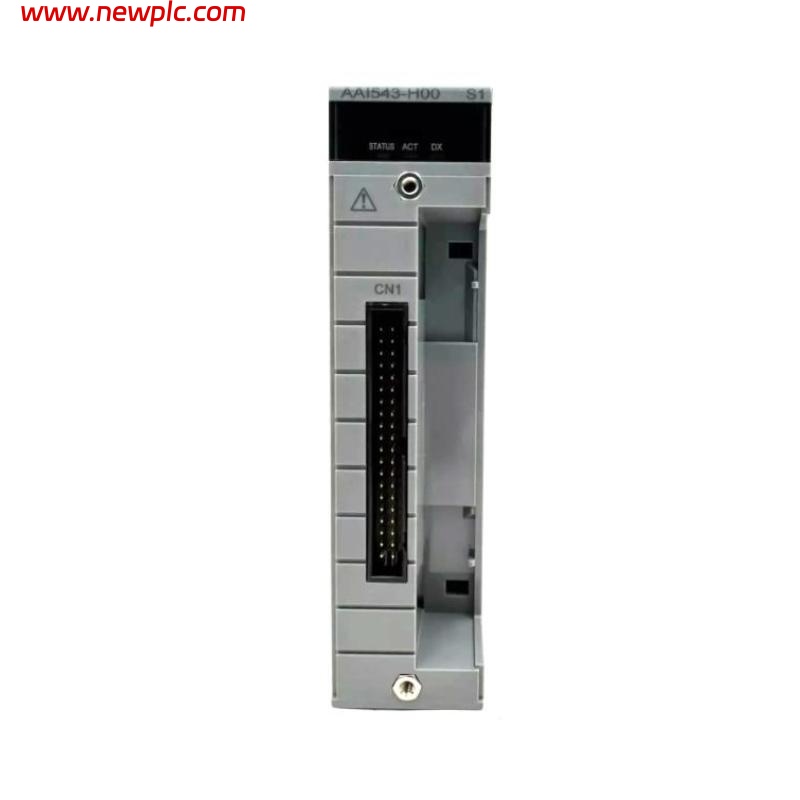

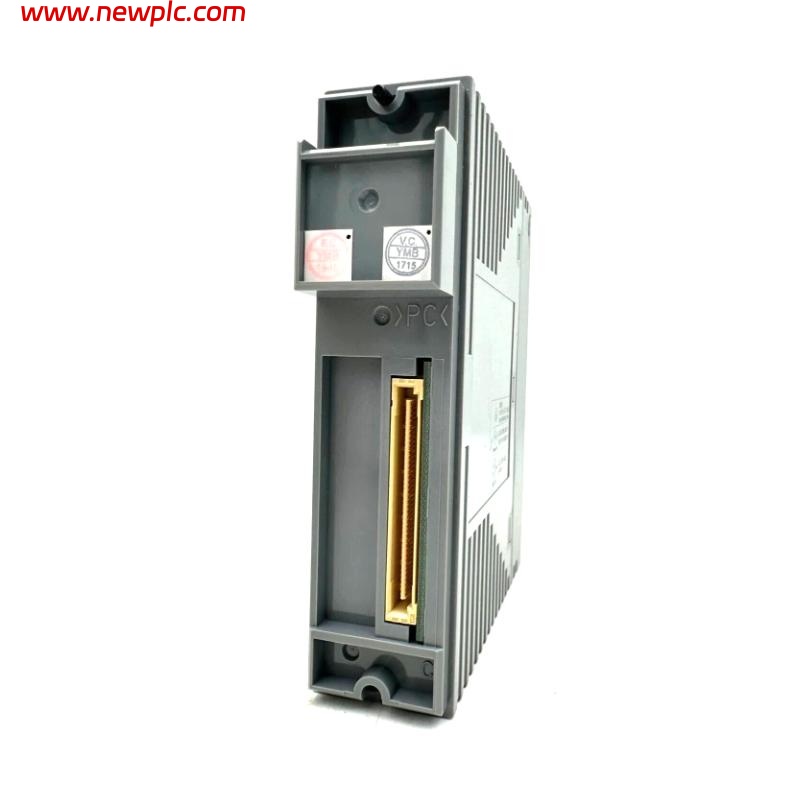

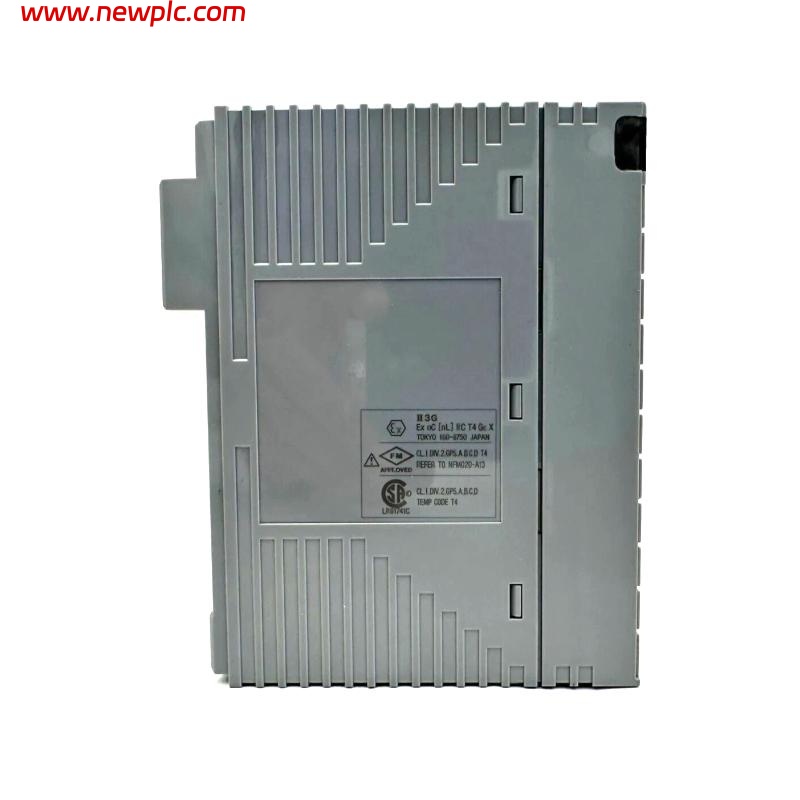

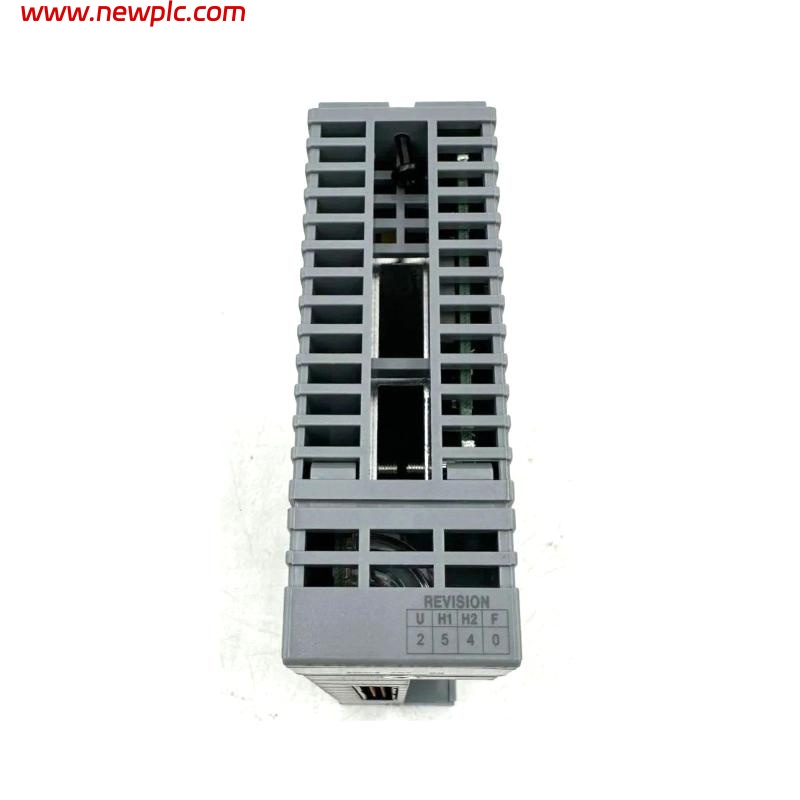

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H00/A4S00 |
| Output Channels | 16 channels, isolated |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | 1500 V AC between output and system, for 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | < 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Ambient Temperature Drift | ±16 µA/10 °C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | Supported (with ER bus and EB401 firmware rev. 2 or later) |
| External Connections | Pressure clamp terminal, MIL connector cable, KS1 dedicated cable |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What type of signals does the AAI543-H00/A4S00 output?
A1: It outputs 4 to 20 mA DC analog signals.
Q2: How many output channels are available on this module?
A2: The module provides 16 isolated analog output channels.
Q3: Does the AAI543-H00/A4S00 support redundant configuration?
A3: Yes, it supports dual-redundant configurations for high availability systems.
Q4: What is the load resistance range this module supports?
A4: It supports a load resistance range from 0 to 750 ohms.
Q5: Is HART communication supported by this model?
A5: Yes, HART communication is supported when used with compatible ER bus nodes and firmware.
Q6: What is the accuracy level of the output signal?
A6: The output signal has an accuracy of ±48 µA.
Q7: What are the external connection options available?
A7: It supports pressure clamp terminals, MIL connector cables, and KS1 dedicated cables.
Q8: What is the physical size and weight of the module?
A8: It measures 107.5 × 32.8 × 130 mm and weighs approximately 0.4 kg.
