Technical Specifications
| Item | Specification |
|---|---|
| Model Number | AAI543-H10 |

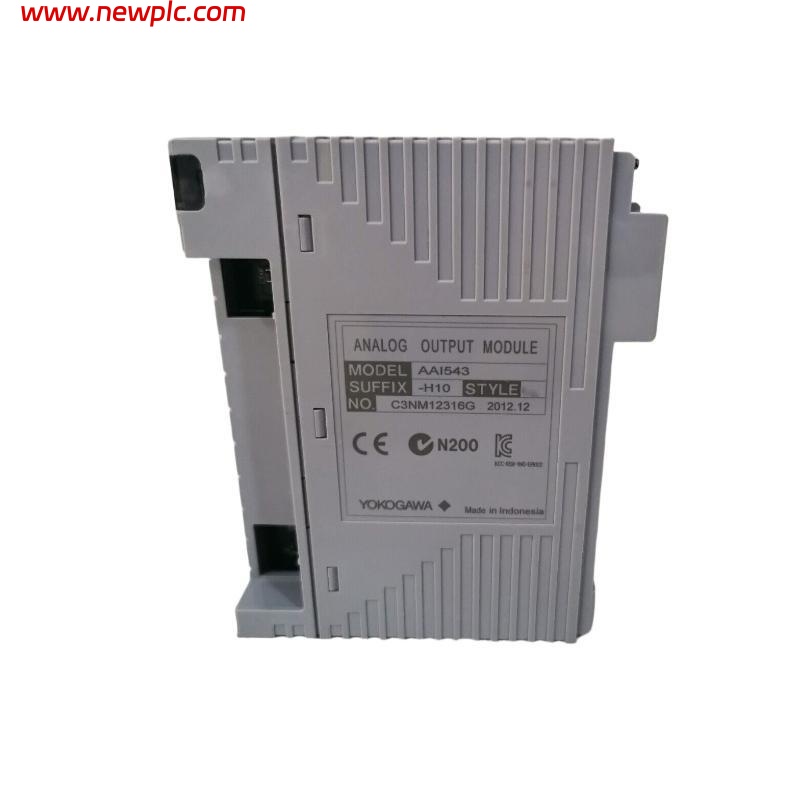

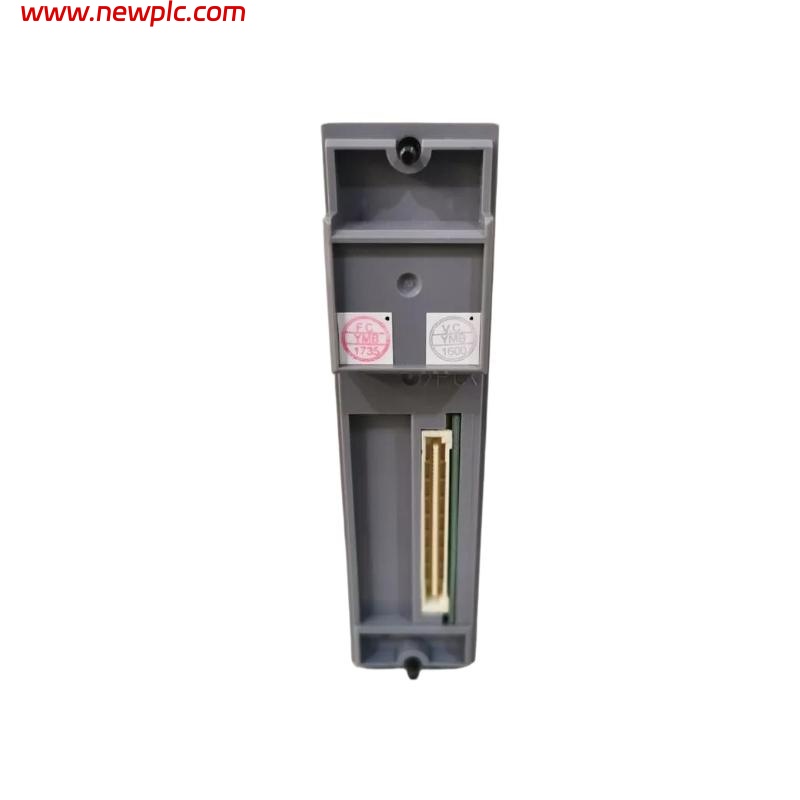

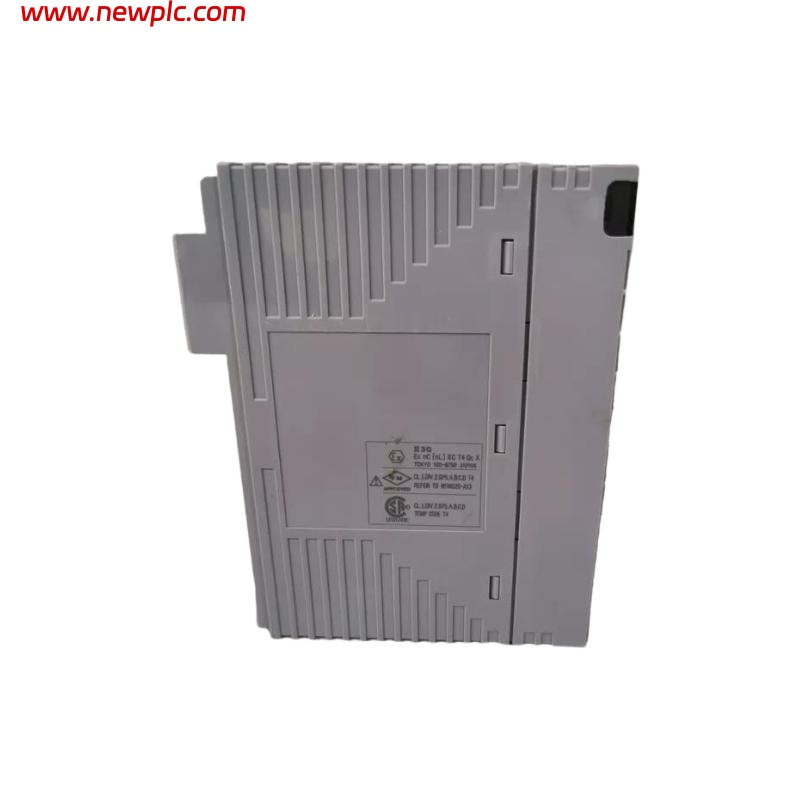

| Product Name | Analog Output Module |
| System Compatibility | Yokogawa CENTUM VP Control System |
| Output Type | 4-20 mA current output |
| Channel Count | 8 channels |
| Resolution | 16-bit |
| Accuracy | ±0.1% Full Scale |
| Output Load | Up to 600 Ω |
| Response Time | 50 ms |
| Communication Interface | Internal bus interface |
| Power Requirement | 24 VDC |
| Operating Temp. | 0°C to +55°C |
| Storage Temp. | -25°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Mounting Method | Mounted in modular control system rack |
FAQ
FAQ
Q1: How many channels does the AAI543-H10 support?
A1: It supports 8 channels of analog current output.
Q2: What type of output signals does it provide?
A2: Standard 4-20 mA current output.
Q3: What is the module’s resolution?
A3: 16-bit resolution ensures output accuracy.
Q4: What is the maximum output load?
A4: Supports up to 600 Ω load.
Q5: What is the response time?
A5: Response time is 50 milliseconds.
Q6: Which system is this module designed for?
A6: Designed for Yokogawa CENTUM VP control system.
Q7: Does it require an external power supply?
A7: No, powered by the system rack.
Q8: How is the module installed?
A8: Installed in the modular control system’s standard rack.
