Technical Specifications
| Parameter | Specification |
|---|---|

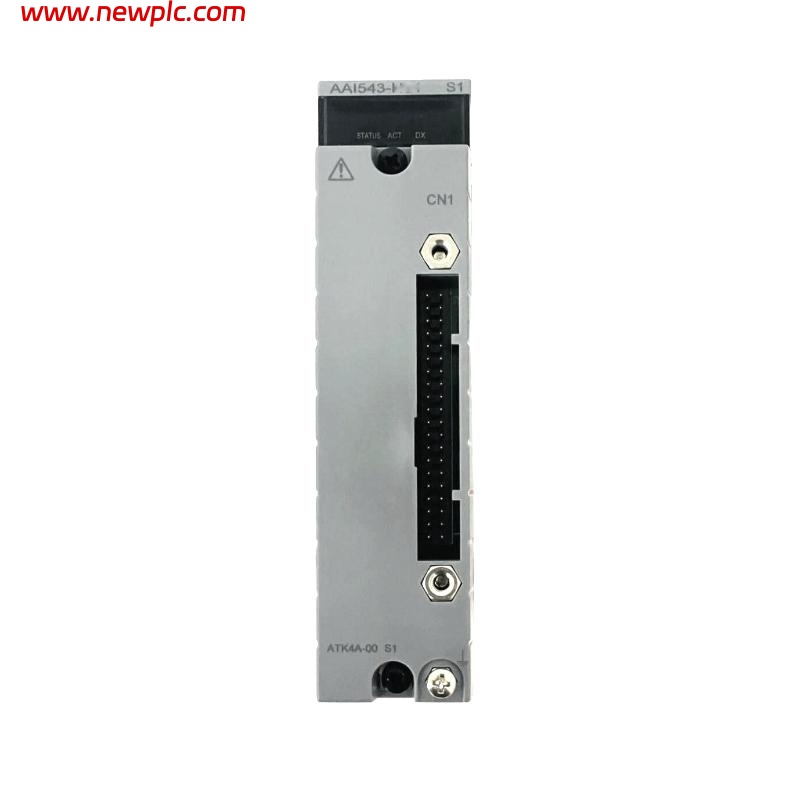

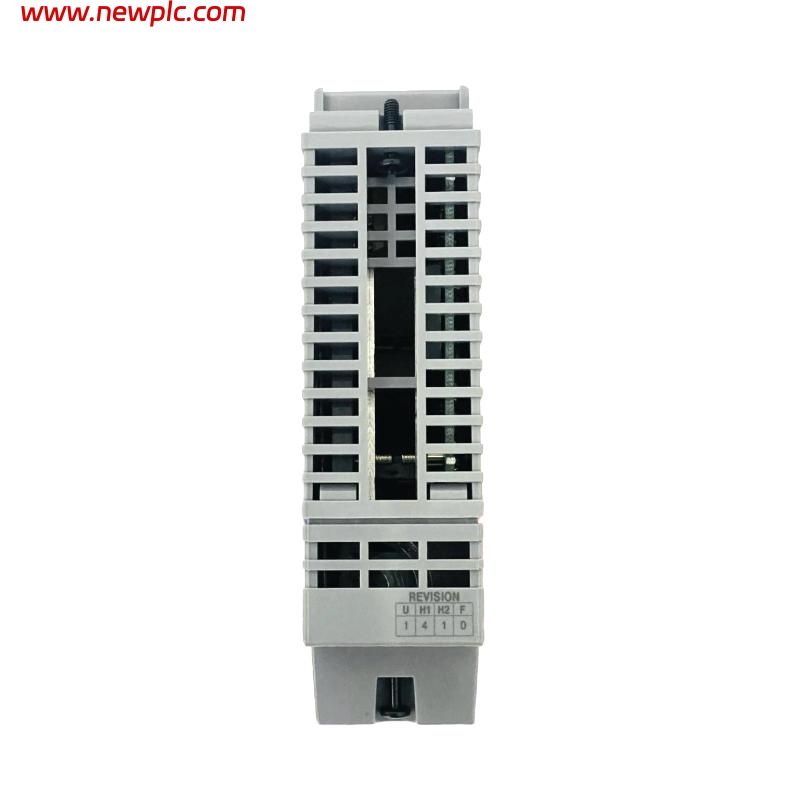

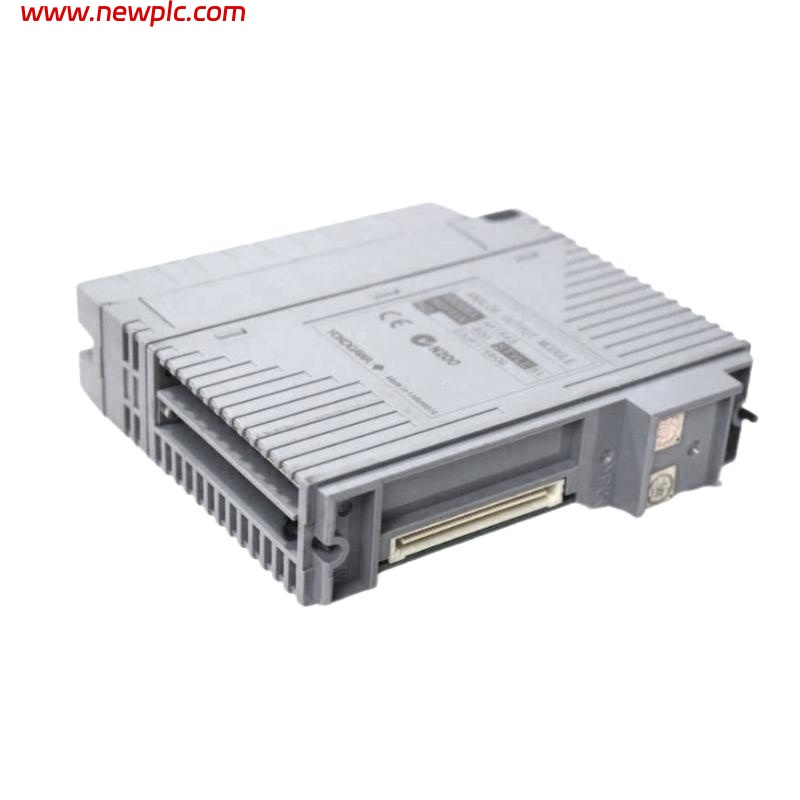

| Model | Yokogawa AAI543-S50/K4A00 |
| Type | Analog Output Module (Current Output, Isolated) |
| Number of Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | Between output and system: 1500 V AC, 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 μA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 μA / 10 °C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 dedicated cable |
| HART Communication | Available |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What is the primary function of the Yokogawa AAI543-S50/K4A00 module?
A1: It outputs isolated 4–20 mA current signals to field devices from the control system.
Q2: How many output channels does the module support?
A2: It supports 16 isolated output channels.
Q3: What is the allowable load resistance range for each channel?
A3: The allowable load resistance is from 0 to 750 Ω.
Q4: Does the module support HART communication?
A4: Yes, it supports HART communication for advanced device interaction.
Q5: What is the accuracy level of the output signal?
A5: The accuracy is ±48 μA.
Q6: Can this module be used in a dual-redundant configuration?
A6: Yes, it supports dual-redundant operation with appropriate configuration.
Q7: What is the withstanding voltage rating?
A7: It can withstand 1500 V AC between output and system for 1 minute.
Q8: What are the module’s physical dimensions and weight?
A8: It measures 107.5 × 32.8 × 130 mm and weighs 0.4 kg.
