Technical Specifications
| Item | Specification |
|---|---|

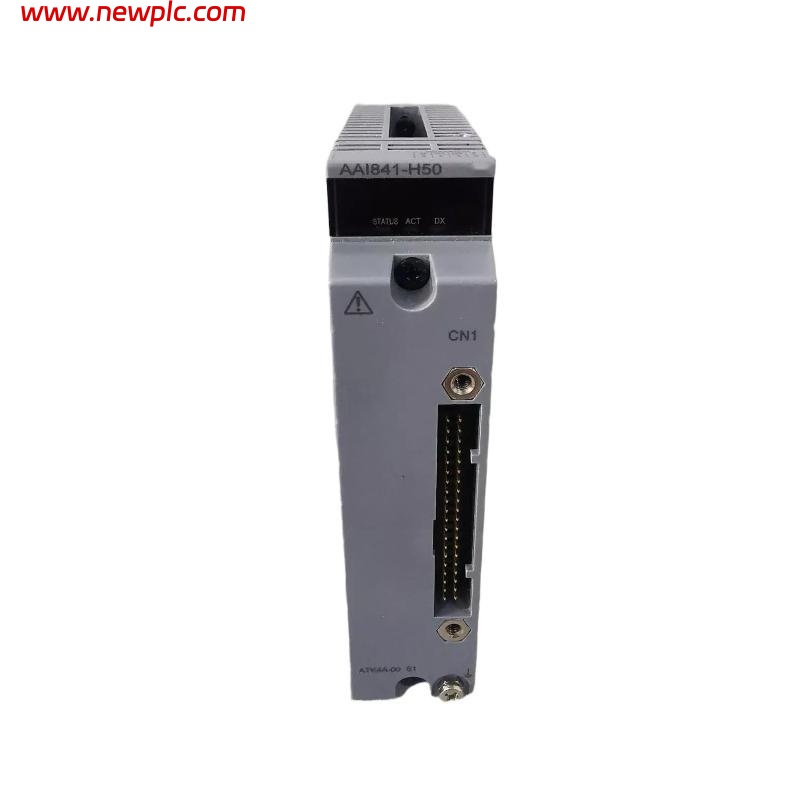

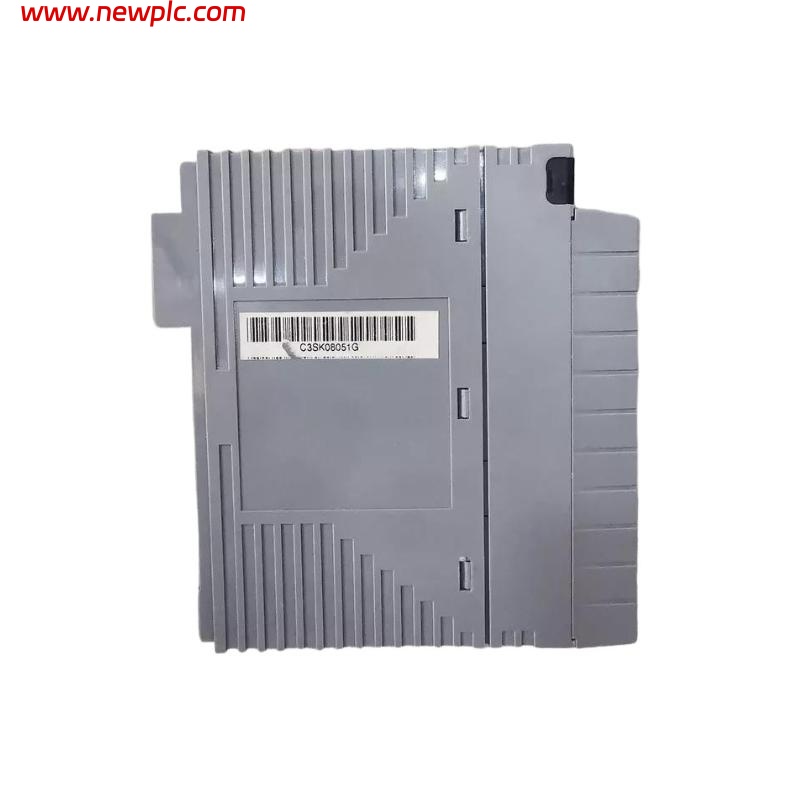

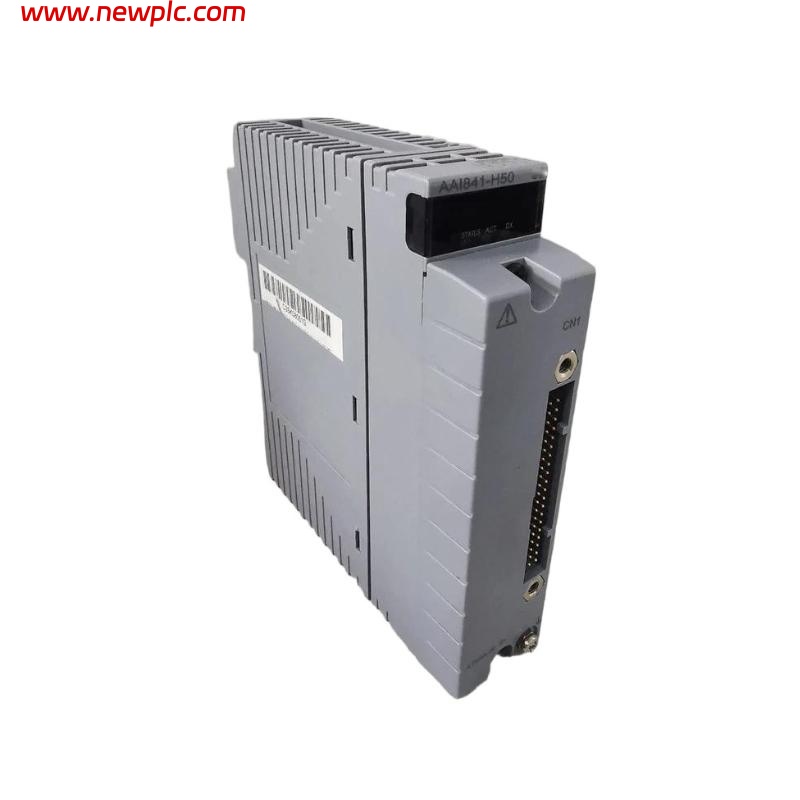

| Product Model | AAI841-H50/A4S00 |
| Product Type | Analog I/O Module |
| Manufacturer | Yokogawa |
| System Type | Distributed Control System (DCS) |
| Number of Channels | Input: 16 channels, Output: 8 channels |
| Input Type | Voltage, Current signals |
| Output Type | Voltage, Current signals |
| Accuracy | ±0.1% F.S. (Full Scale) |
| Input Range | Voltage: 0-10 V, Current: 4-20 mA |
| Output Range | Voltage: 0-10 V, Current: 4-20 mA |
| Response Time | ≤ 100 ms |
| Power Supply | 24 V DC |
| Operating Temperature | 0 to 55 ℃ |
| Storage Temperature | -20 to 70 ℃ |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Mounting Type | Modular plug-in installation |
| Applicable Systems | Yokogawa DCS control systems |
FAQ
FAQ
Q1: What is the main function of the AAI841-H50/A4S00 analog I/O module?
A1: It acquires analog input signals and outputs analog control signals, enabling data interaction with the Yokogawa DCS system.
Q2: How many input and output channels does the module support?
A2: 16 input channels and 8 output channels.
Q3: Which signal types are supported?
A3: Both input and output support voltage signals (0-10 V) and current signals (4-20 mA).
Q4: What is the response time of the module?
A4: Response time is ≤ 100 ms.
Q5: What is the operating temperature range?
A5: 0 to 55 ℃.
Q6: What is the weight of the module?
A6: Approximately 0.3 kg, convenient for installation and maintenance.
Q7: Does the module require a special installation environment?
A7: Install in a standard DCS control cabinet environment; avoid humidity and high temperature.
Q8: What is the module’s accuracy?
A8: ±0.1% full scale, ensuring accurate data acquisition and output.
