Technical Specifications
| Item | Specification |
|---|---|

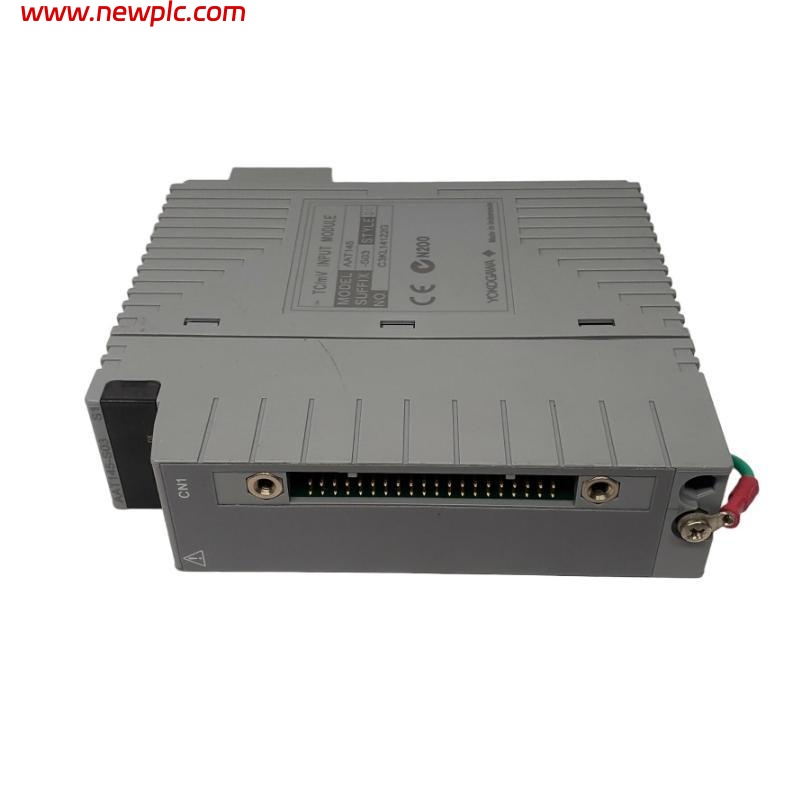

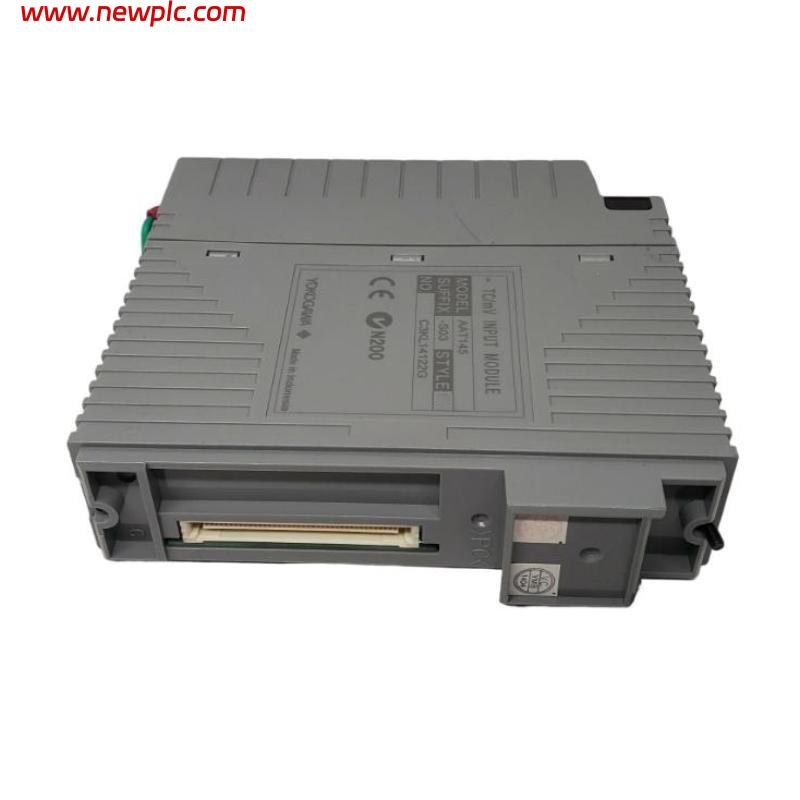

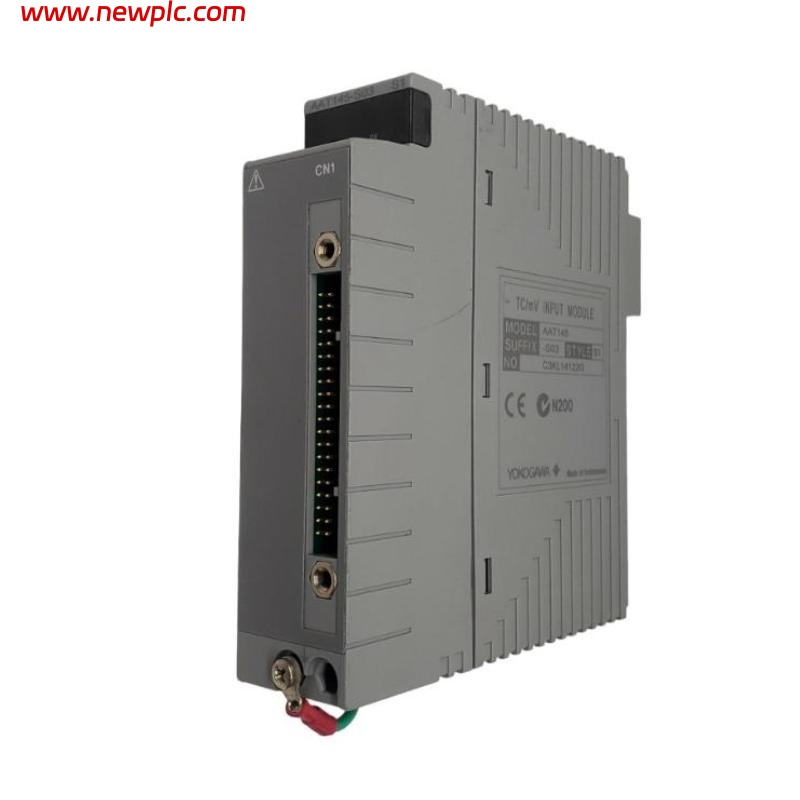

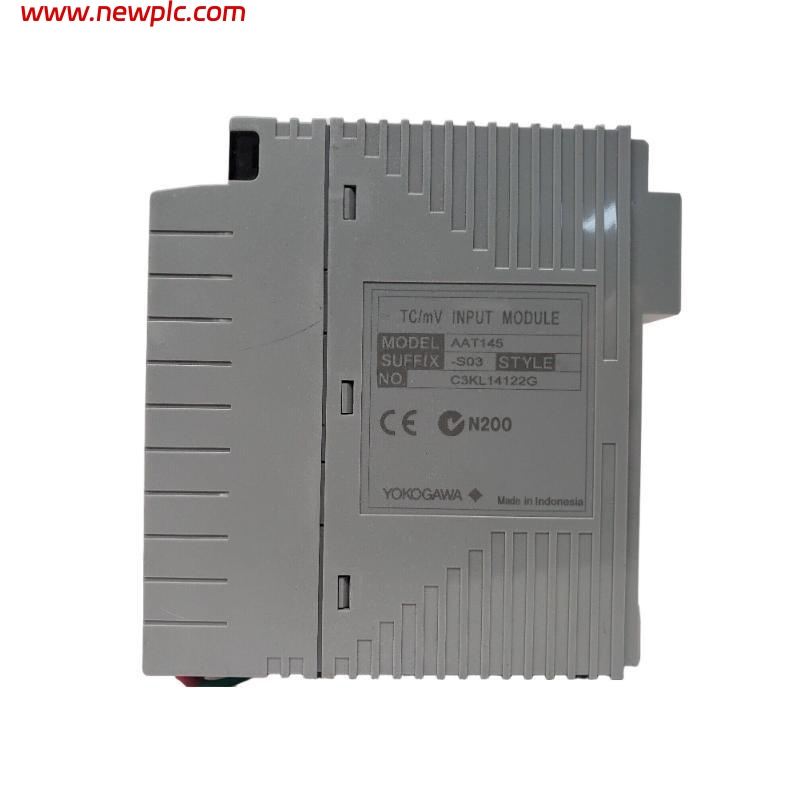

| Product Name | Yokogawa AAT145-S03 TC/mV Input Module |
| Type | Thermocouple/mV Input Module |
| Number of Channels | 8 channels |
| Input Signal Types | Thermocouple (TC), DC millivolt (mV) |
| Input Range | -10 mV to +100 mV |
| Resolution | 16-bit |
| Scan Period | 100 ms |
| Accuracy | ±0.1% of reading |
| Isolation | Channel-to-system isolation |
| Mounting | Modular slot mounting |
| Compatibility | Designed for Yokogawa control systems |
| Dimensions | 32.8 × 130 × 127.2 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0 to +55 ℃ |
| Storage Temperature | -20 to +70 ℃ |
| Relative Humidity | 10% to 90% non-condensing |
FAQ
FAQ
Q1: What is the main function of the AAT145-S03?
A1: It is used to acquire thermocouple and DC millivolt signals for high-accuracy temperature and voltage monitoring.
Q2: How many input channels does the module have?
A2: It provides 8 independent input channels.
Q3: What types of signals does the module support?
A3: It supports multiple thermocouple types and DC millivolt signals.
Q4: What is the input range of the module?
A4: The input range is -10 mV to +100 mV.
Q5: What is the resolution of the AAT145-S03?
A5: It features 16-bit resolution for precise signal acquisition.
Q6: What are the dimensions and weight of the module?
A6: The dimensions are 32.8 × 130 × 127.2 mm, and the weight is 0.3 kg.
Q7: How is the module installed?
A7: It is installed using modular slot mounting, allowing easy replacement and maintenance.
Q8: Is the module compatible with Yokogawa control systems?
A8: Yes, it is specifically designed for and compatible with Yokogawa control systems.
