Technical Specifications
| Item | Specification |
|---|---|

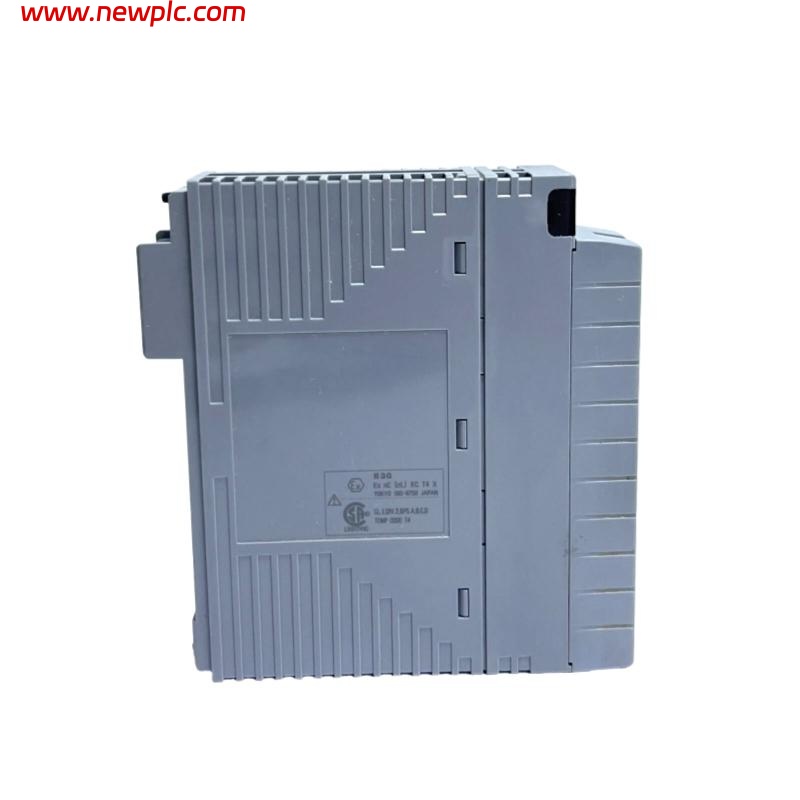

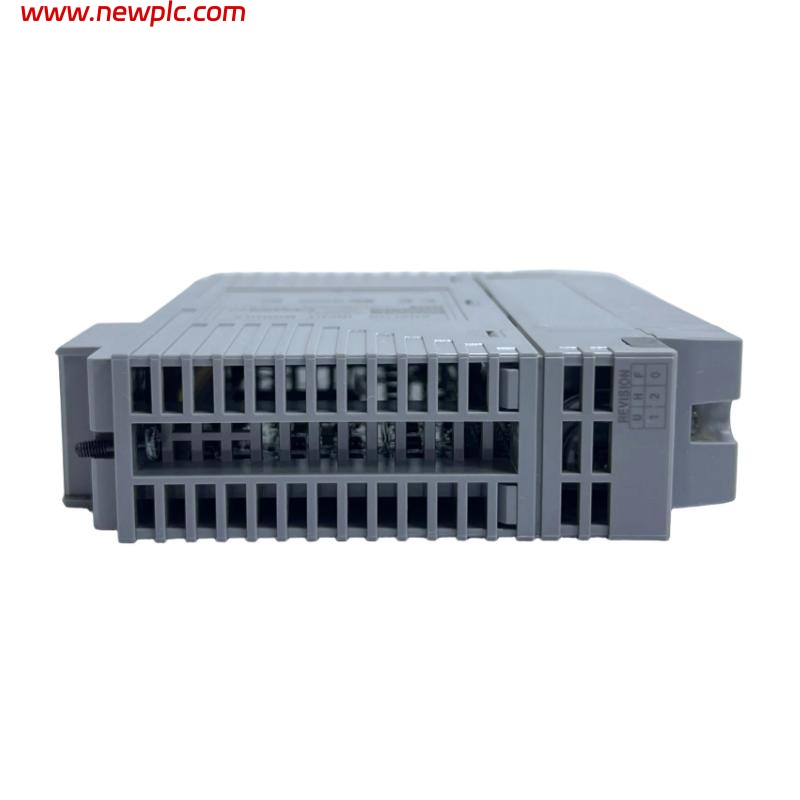

| Model Number | Yokogawa AAV141-S03/K4A00 |
| Series | CENTUM Control System I/O Modules |
| Type | Analog Input Module |
| Input Channels | 8 channels |
| Input Signal | 4-20 mA / 1-5 V DC |
| Resolution | 12-bit |
| Isolation | Opto-isolated between channels and system bus |
| Power Supply | Supplied by system |
| Operating Temp | 0 °C – 55 °C |
| Storage Temp | -20 °C – 70 °C |
| Protection | Industrial-grade, high noise immunity |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What signal types does this analog input module support?
A1: It supports 4-20 mA and 1-5 V DC input signals.
Q2: How many input channels are available?
A2: The module provides 8 independent input channels.
Q3: What is the resolution of the module?
A3: It has a 12-bit resolution for accurate data acquisition.
Q4: Does it provide isolation protection?
A4: Yes, channels are optically isolated from the system bus for improved safety and reliability.
Q5: How is the module powered?
A5: The power is supplied directly by the control system, no external supply is needed.
Q6: What is the operating temperature range?
A6: The module can operate from 0 °C to 55 °C.
Q7: Is installation easy?
A7: Yes, the standardized design allows easy installation into the I/O slots.
Q8: In which industries can this module be applied?
A8: It is widely used in oil & gas, chemical, power generation, metallurgy, and water treatment industries.
