Technical Specifications
| Item | Specification |
|---|---|

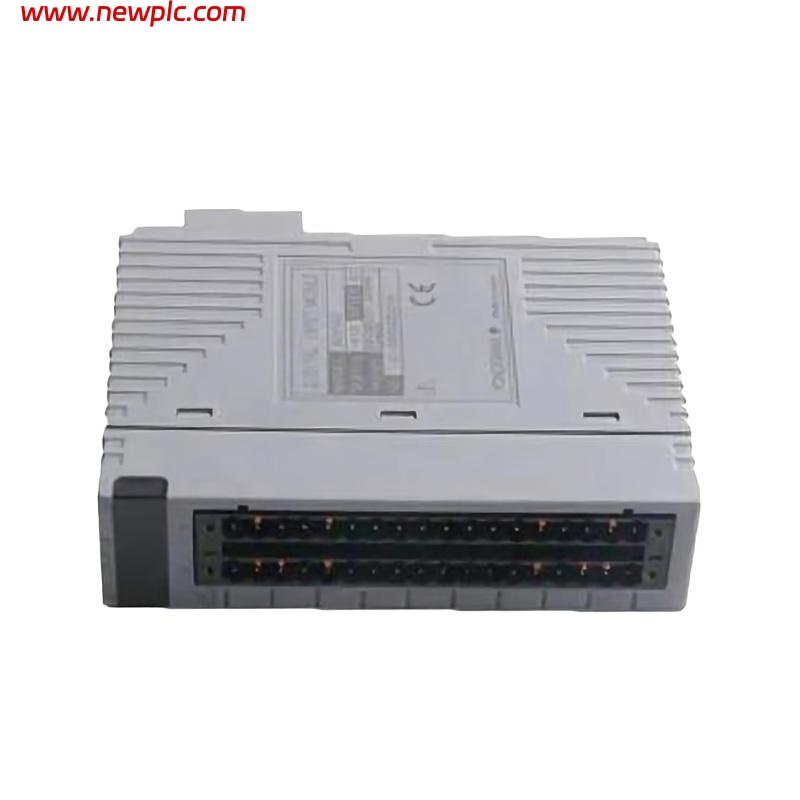

| Model Number | Yokogawa AAV142-S50 |
| Series | CENTUM Control System I/O Modules |
| Type | Analog Input Module |
| Input Channels | 16 channels |
| Input Signal | 4-20 mA / 0-10 V DC |
| Resolution | 12-bit |
| Isolation | Opto-isolated between input and system bus |
| Power Supply | Supplied by system |
| Operating Temp | 0 °C – 55 °C |
| Storage Temp | -20 °C – 70 °C |
| Protection | Industrial-grade, high noise immunity |
| Dimensions | 32.8 × 130 × 107.5 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What is the main application of this module?
A1: It is used to collect analog process signals and transmit them to the control system.
Q2: What types of input signals are supported?
A2: It supports 4-20 mA and 0-10 V DC input signals.
Q3: How many input channels does it provide?
A3: The module provides 16 independent input channels.
Q4: What is the resolution of the module?
A4: It has a 12-bit resolution for precise data acquisition.
Q5: Does the module have isolation protection?
A5: Yes, the inputs are optically isolated from the system bus for safety and reliability.
Q6: What is the operating temperature range?
A6: It operates from 0 °C to 55 °C.
Q7: Is installation easy?
A7: Yes, the module is standardized for direct insertion into I/O slots.
Q8: In which industries is this module typically used?
A8: It is widely used in petrochemical, power, metallurgy, water treatment, and other process control industries.
