Technical Specifications
| Item | Specification |
|---|---|

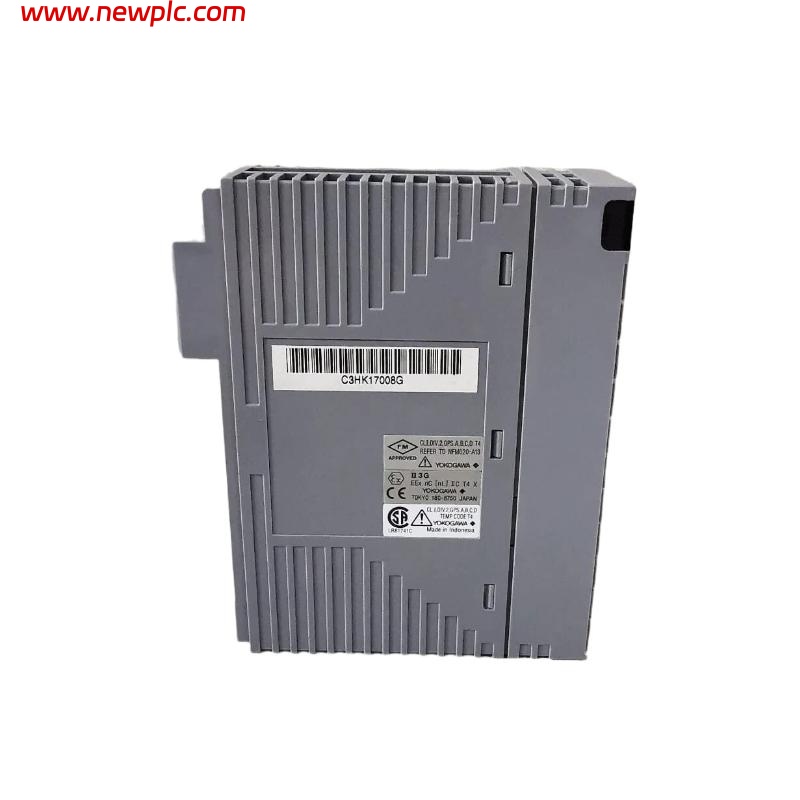

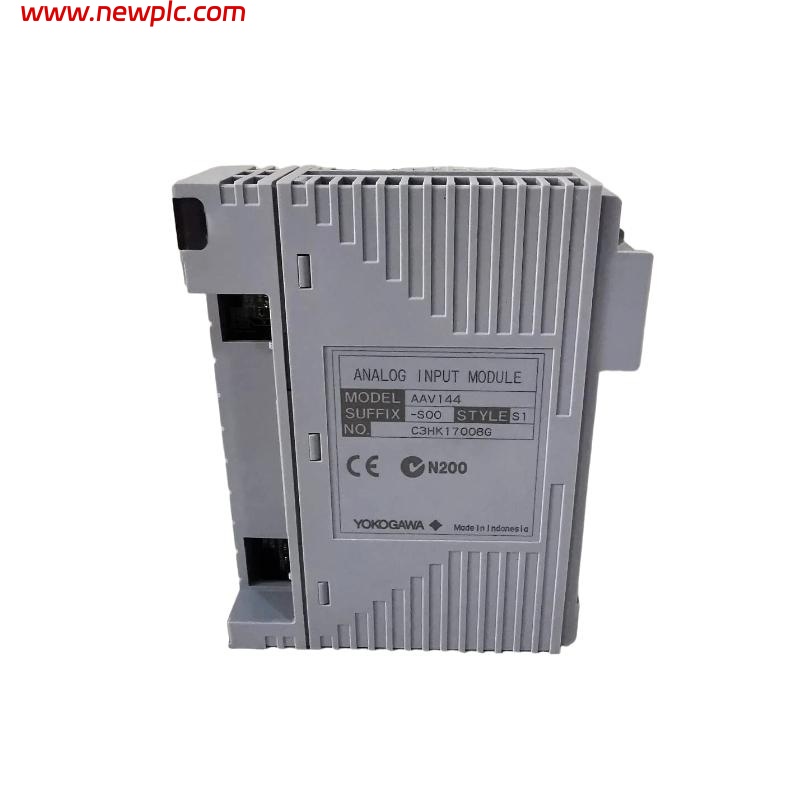

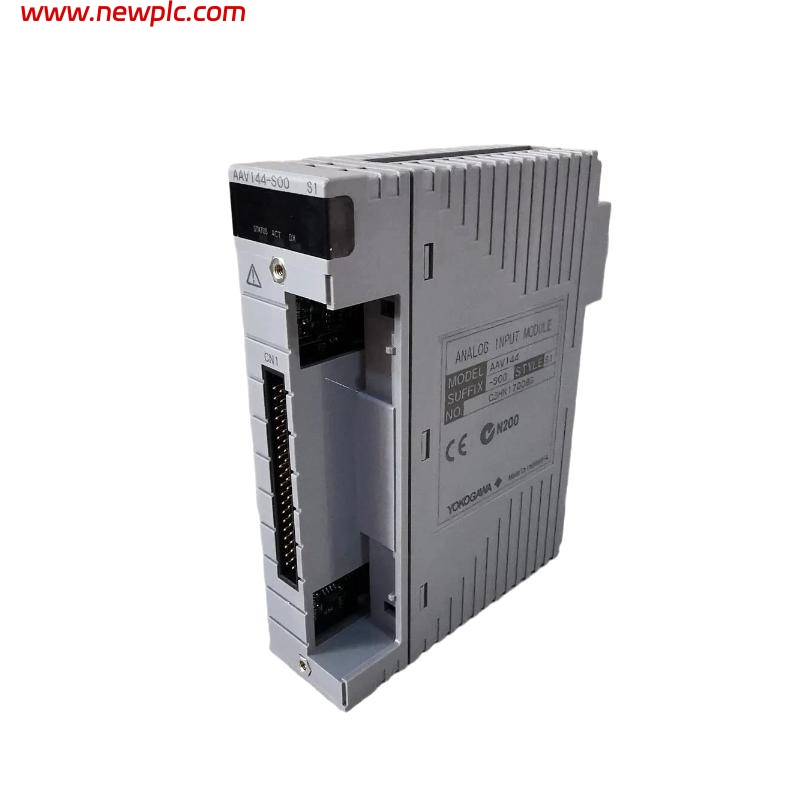

| Model Number | Yokogawa AAV144-S53/K4A00 Voltage Input Module |
| Type | Voltage Input Module |
| Function | Provides high-accuracy voltage signal acquisition for process monitoring and control |
| Input Channels | 16 channels |
| Input Range | -10 V to +10 V |
| Resolution | 16-bit A/D conversion |
| Isolation | Channel-to-channel and system-to-field isolation |
| Accuracy | ±0.1% FS |
| Scan Period | Less than 100 ms |
| Compatibility | Compatible with Yokogawa CENTUM CS 3000, VP, and Stardom systems |
| Operating Temp | 0 °C – 55 °C |
| Storage Temp | -20 °C – 70 °C |
| Protection | IP20 |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What is the main function of this module?
A1: It is used to acquire voltage signals and transfer them to the DCS system for monitoring and control.
Q2: How many input channels are available?
A2: It provides 16 independent voltage input channels.
Q3: What is the input voltage range?
A3: The supported range is -10 V to +10 V.
Q4: What resolution does it offer?
A4: It supports 16-bit A/D conversion.
Q5: Does it provide isolation?
A5: Yes, it supports channel-to-channel and system isolation.
Q6: What is the scan period?
A6: The scan period is less than 100 ms.
Q7: What are the module’s dimensions and weight?
A7: Dimensions are 107.5 × 130 × 32.8 mm, weight is 0.2 kg.
Q8: Which systems is this module compatible with?
A8: It is compatible with Yokogawa CENTUM CS 3000, VP, and Stardom systems.
